【Product Description】

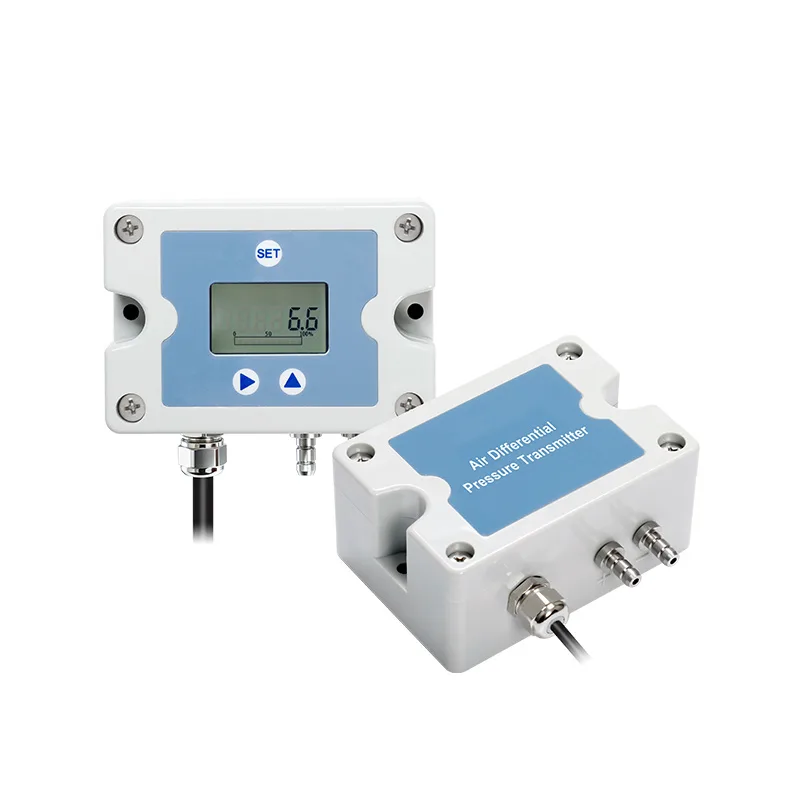

AZIC800-901L Micro-Differential Pressure Transmitter is mainly used formeasuring and monitoring various drygas pressures and differentialpressures, such as dry gas pressure, airinlet duct pressure, indoor and outdoordifferential pressure, cotton boxpressure in cotton spinning machines,elevator lobby pressure, and stairwellpressure. They feature high accuracy,fast response, and good stability.

【Features】

● Easy installation and strong versatility.
● Highly efficient lightning protection, strong resistance to radio frequency and electromagneticinterference (transmitter).
● Surge protection and polarity reversal protection (transmitter).
● Excellent shock resistance, overload resistance, vibration resistance, and corrosion resistance.
● Advanced digital temperature compensation function and wide operating temperature range.

【Specifications】

Measured medium	Gas (weak corrosion and dryness)
Range	0 ~0.5 .. 100kPa (other needs to be customized)
Output	4~20mA (second -line system) 0~5V (third -line system)
Comprehensive accuracy	0.5%FS, 1%FS of the soil, 1%FS
Powered by	12 ~ 30VDC
Operating temperature	-10 ~ 80 ℃
Temperature compensation	-10 ~ 70 ℃
Overload	150%FS
Destruction	200%FS
Load Resistance	Current output: RL <(power supply voltage-9V) /20mA, Voltage output: RL> 100KΩ
Sealing level	IP65
Electrical connections	Direct lead
Pressure connection	M10x15 front end bands φ_x005f tower -shaped air pressure joint
Connect the thread material	Aluminum alloy
