【Product Description】

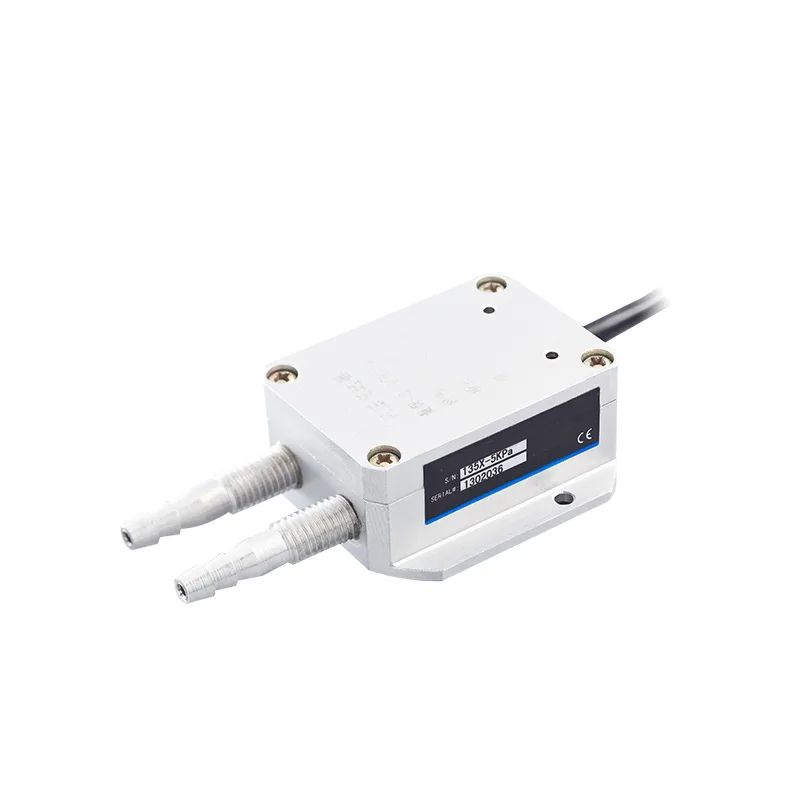

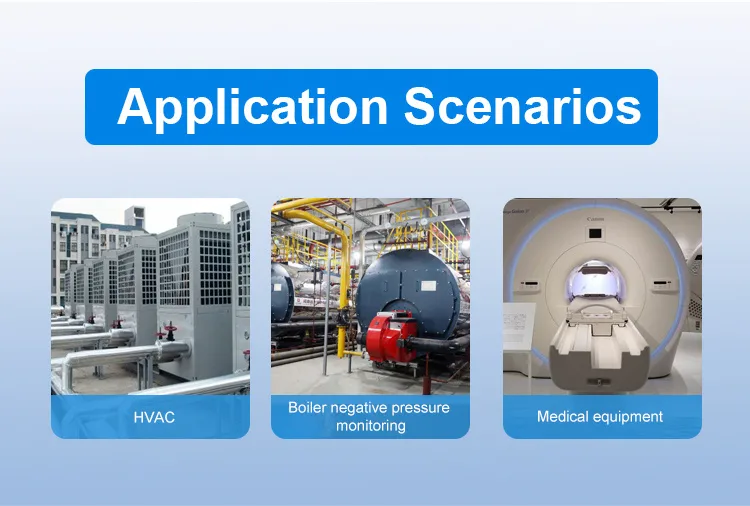

AZIC800-901 air differential pressure sensor is mainly used for various dry gas pressure and differential pressure measurement and monitoring occasions such as dry gas pressure, air inlet pipe pressure, indoor and outdoor differential pressure, cotton spinning tank, elevator front room pressure, staircase pressure measurement, etc. High accuracy, fast response, and good stability.

【Features 】

● Efficient lightning protection, strong anti -radio frequency and electromagnetic interference protection (transmitter);

● Easy to install and universal;

● Anti -wave surge and polar reverse protection (transmitter)

● Excellent impact resistance, overload, vibration resistance corrosion resistance;

● Advanced temperature digital compensation functions and wide range of working temperature.

【Technical Parameters】

Measured medium	Gas (weak corrosion and dryness)
Range	0 ~0.5 .. 100kPa (other needs to be customized)
Output	4~20mA (second -line system) 0~5V (third -line system)
Comprehensive accuracy	0.5%FS, 1%FS of the soil, 1%FS
Powered by	12 ~ 30VDC
Operating temperature	-10 ~ 80 ℃
Temperature compensation	-10 ~ 70 ℃
Overload	150%FS
Destruction	200%FS
Load Resistance	Current output: RL <(power supply voltage-9V) /20mA, Voltage output: RL> 100KΩ
Sealing level	IP65
Electrical connections	Direct lead
Pressure connection	M10x15 front end bands φ_x005f tower -shaped air pressure joint
Connect the thread material	Aluminum alloy
