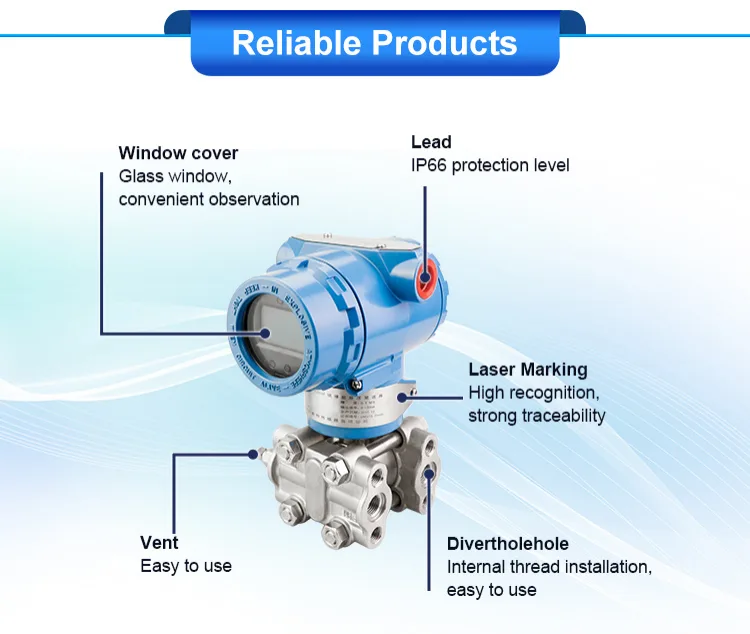

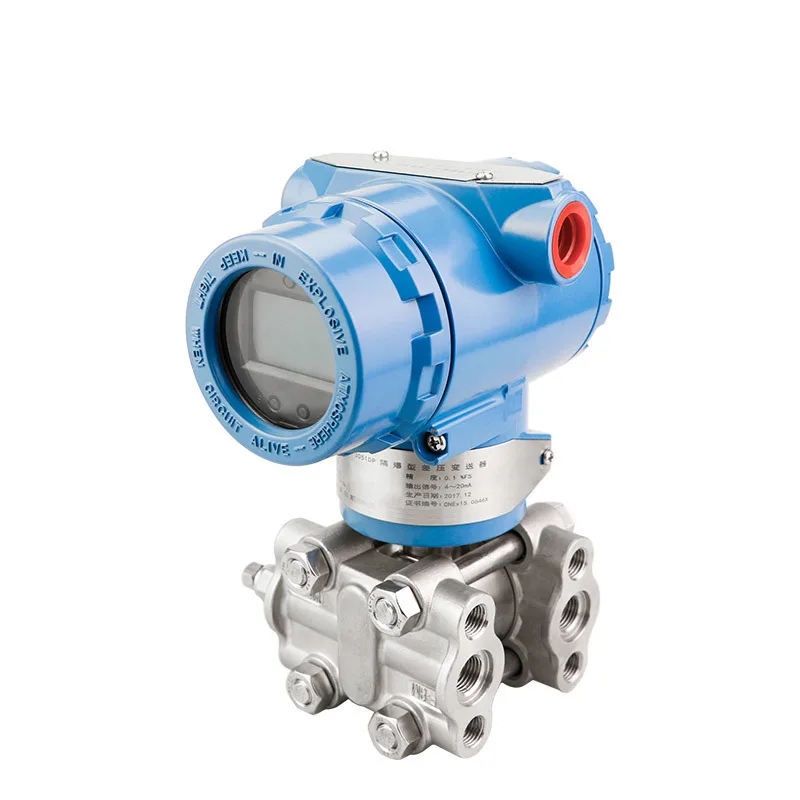

【Product Description】

AZIC800-3051DP Differential Pressure Sensor adopts the single crystal silicon sensor chip imported from Germany, and the suspended structure design has super overpressure performance and excellent stability.

Product features:

● Single crystal silicon sensor chip

● LCD digital display with backlight

● Smart HART Protocol

● Flexible range compression

● Excellent overvoltage performance in small range

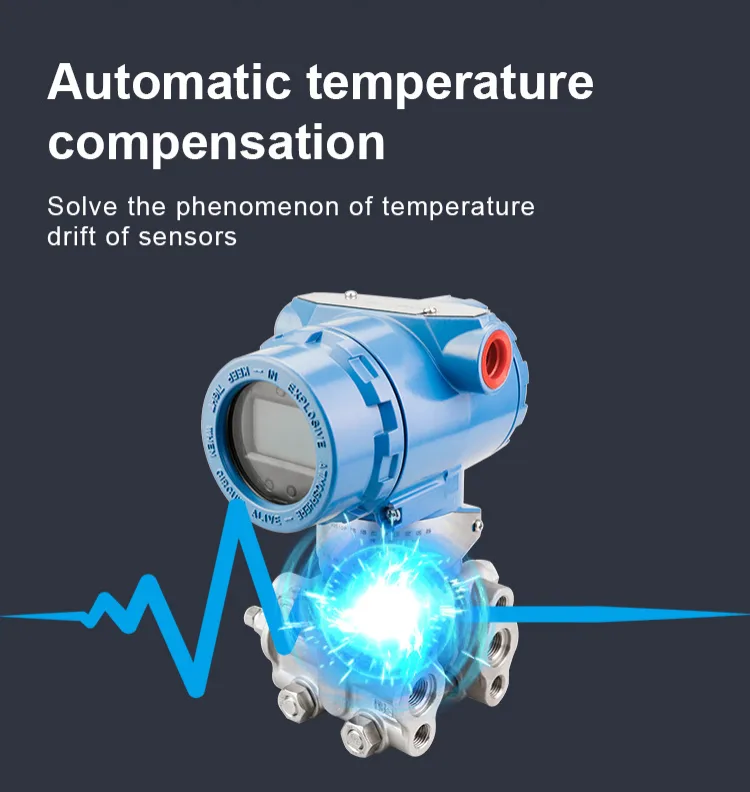

● Intelligent static pressure and temperature compensation

【Technical Parameters】

Measuring range	-40…400kPa -3…3MPa
Signal output	4~20mA HART protocol
Signal Line Specifications	2Wire
Comprehensive accuracy	±0.075%FS
Long term stability	0.1% range upper limit/10 years
Temperature compensation	-20~+65℃
Operating temperature	-20~+65℃
Storage temperature	-40~+100℃
Destruction pressure	Bilateral static pressure: 25MPa
Protection class	IP66
Contact medium material	316 stainless steel
Electrical connections	Cable entry
Supply voltage	General scope:10.5~45VDC Intrinsically safe explosion-proof:10.5~26VDC
Overload pressure	-40…40kPa(One side 3MPa) -400…400kPa(One side 8MPa)
Pressure port	1/4-18NPT
