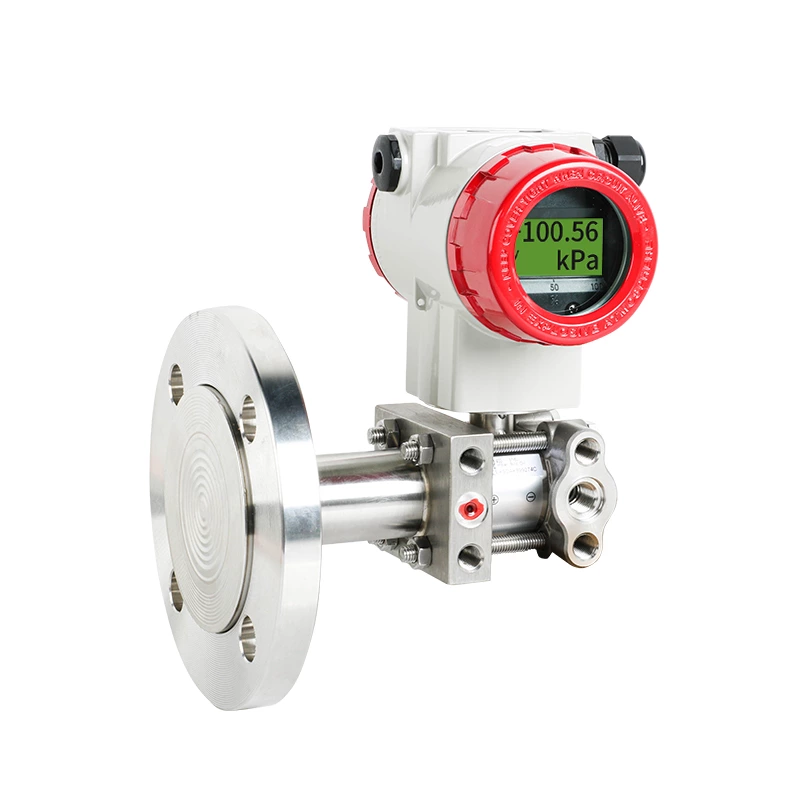

AZIC800-3051LT Flange mounted differential pressure transmitters measures the height of the tank body according to According to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship

Characteristics

Range: 0-6kPa~3MPa

Resolution: 0.075%

Output: 4-20mA analog output

Power supply: 24VDC

Specification

Product	Differential Pressure transmitter
Model	AZIC800-3051LT
Measure range	-100kPa··· 0~0.1kPa··· 3MPa
Indication resolution	±0.075%; ±0.01%FS
Ambient temperature	-40 ~ 85 ℃ (ultra-high temperature type to 600℃)
Medium temperature	-40~100℃
Storage temperature	-50~85℃
Output signal	4-20mA analog output / with HART communication
Shell protection	IP67
Diaphragm material	Stainless steel 316L, Hastelloy C, supports other custom
Product shell	Aluminum alloy, the appearance of epoxy coating

Reference List of the Relationship between Span Code and Span

Span Code	Min. Span	Max. Span	Rated Working Pressure (Max.)
B	1kPa	6kPa	The rated pressure of level flange
C	4kPa	40kPa
D	25kPa	250kPa
F	200kPa	3MPa

Reference List of the Relationship between Level Flange and Minimun Span

Level Flange	Norminal Diameter	Min. Span
Flat Type	DN 50/2 ''	4kPa
	DN 80/2 ''	2kPa
	DN100/4''	2kPa
Insert Type	DN 50/2''	6kPa
	DN 80/3''	2kPa
	DN 100/4''	2kPa

Performance

It is suitable for measuring fluid media such as ultra-high temperature 600℃, high viscosity, corrosiveness, easy precipitation, etc.

Measurement range (No Shift): 0-6kPa~3MPa
Filling fluid: silicone oil, vegetable oil
Diaphragm: SS316L, Hastelloy C, Tantalum, SS316L Gold Plated, SS316L Plated PTFE, SS316L Plated PDA, SS316L Plated FEP
