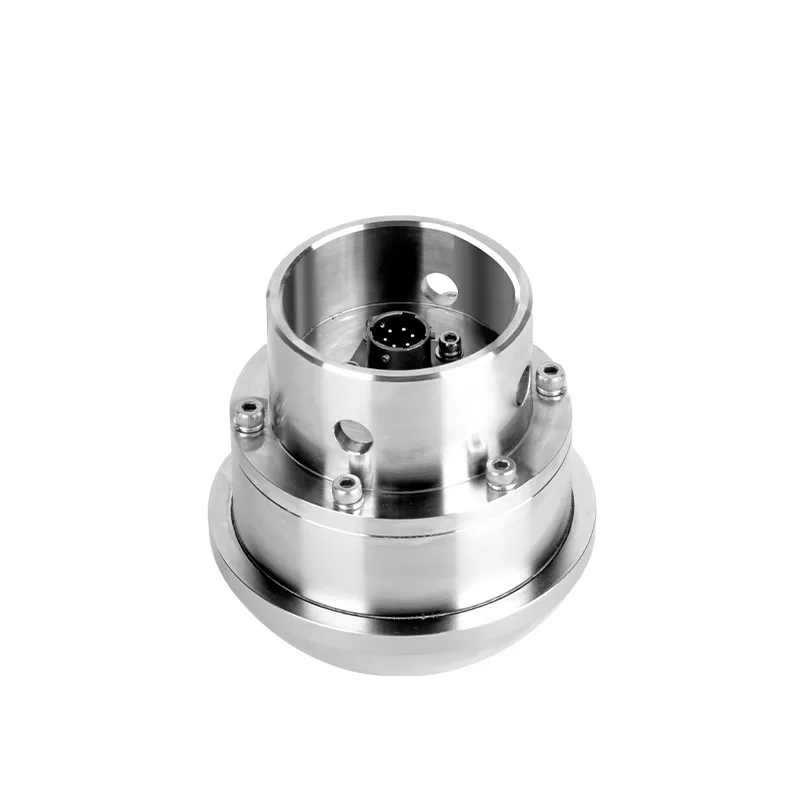

AZIC800-711 Union Pressure Sensor adopts spherical seal, is simple to install and easy to use, is suitable for various exploration and mining scenarios.
【Product Overview】
AZIC800-711 Union Pressure Sensor adopts spherical seal, which is simple to install and easy to use. It is suitable for various exploration and mining scenarios and is used for oil acidification, cementing, fracturing, wet soil, crude oil corrosive gas and liquid pressure measurement.
【Product Features】
● Easy to install and strong versatility;
● Highly efficient lightning protection, strong anti-RF and electromagnetic interference protection;
● Anti-surge and polarity reversal protection;
● High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance;
● Advanced temperature digital compensation function;
【Product Parameters】
|
output signal |
4-20mA |
|
Signal Line Specifications |
2Wire |
|
supply voltage |
9~30V DC |
|
Range |
0-140MPa |
|
level of accuracy |
0.5%FS |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Sensitivity temperature drift |
±0.02%FS/℃ |
|
Operating temperature |
-20~85℃ |
|
degree of protection |
IP65 |
|
media compatibility |
Various media compatible with 17-4ph stainless steel |
|
Electrical Interface |
Special aviation plug |
