【Product Description】

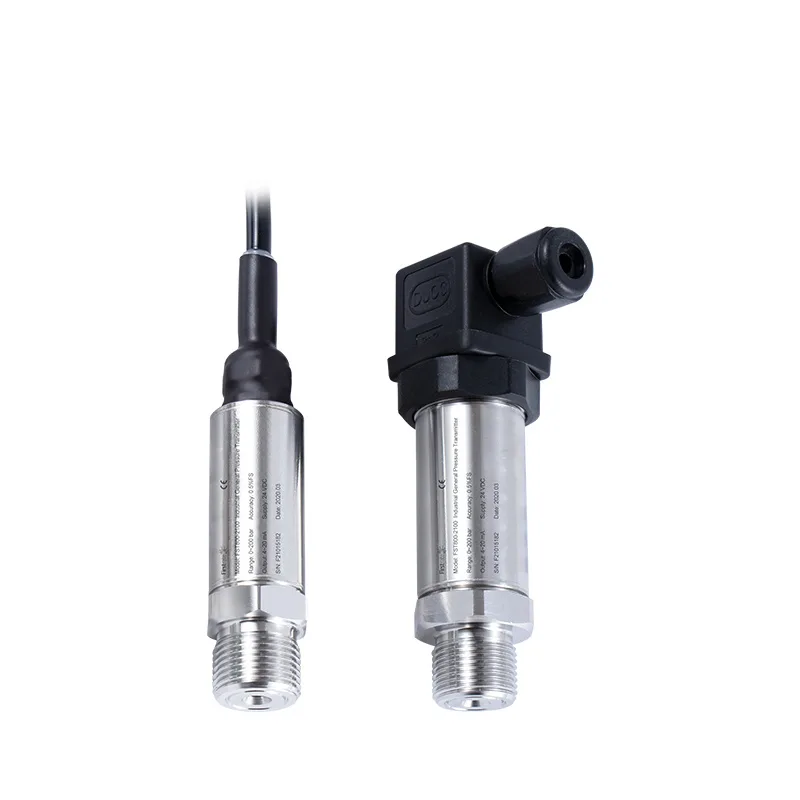

AZIC800-2100 wide temperature range pressure sensor adopts stainless steel structure, good media compatibility, high precision, high frequency response, good long-term stability, and reverse polarity protection.

【Features】

● Core body adopts wide temperature range compensation.
● Stainless steel structure, good media compatibility.
● High precision, high frequency response, good long-term stability.
● Reverse polarity protection.

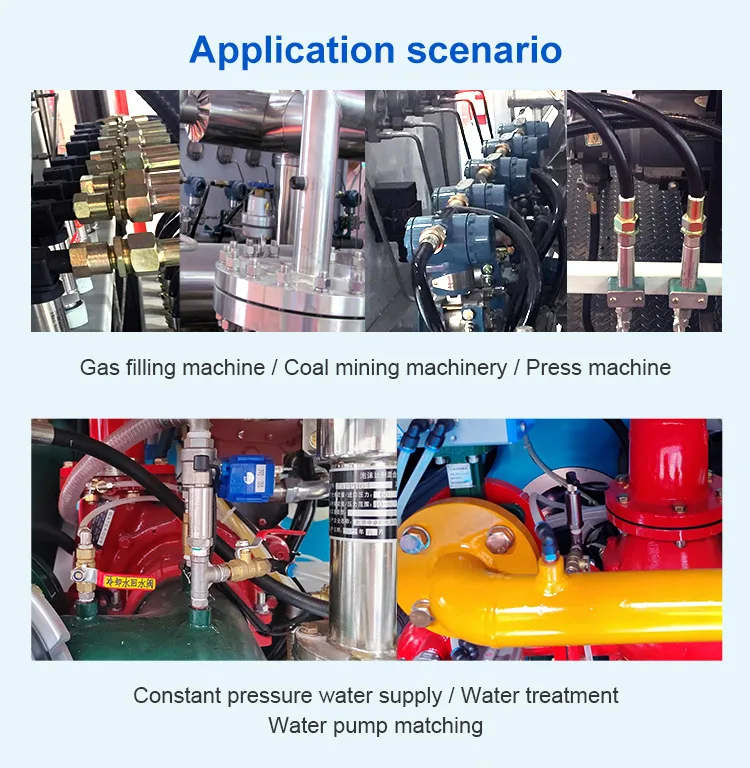

【Scope of application】

● Industrial process detection and control.
● Hydraulic and pneumatic control system.
● Automated detection system.
● Pumping station and water treatment system.
● Industrial machinery manufacturing.

【Technical Parameters】

Type of pressure	Gauge pressure, absolute pressure
Pressure range	-100kPa…0kPa~20kPa…60MPa
Output signal	4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC
Signal line specifications	2Wire 3Wire 3Wire 3Wire
Supply voltage	9~30VDC 5VDC/9~30VDC 9~30VDC 15~30VDC
Precision	±0.5%FS ±1%FS
Long-term stability	≤0.2%FS/year
Overload pressure	200%FS
Breaking pressure	300%FS
Impact (11mS)	100g

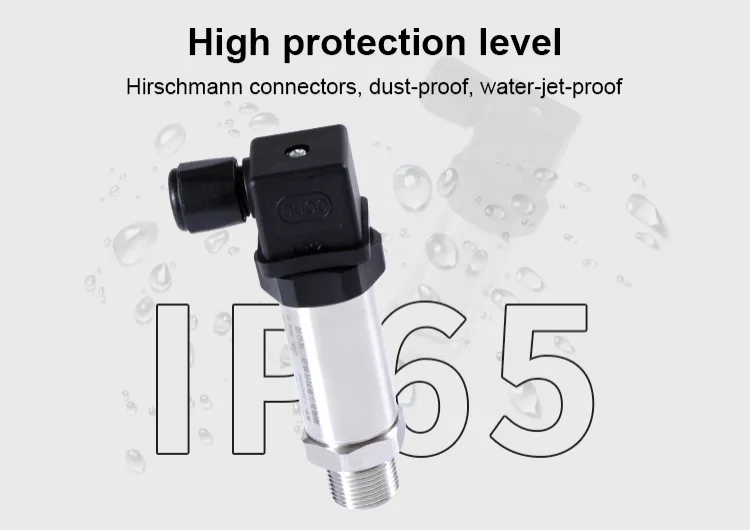

Protection level	lP65
Shell material	304 stainless steel
Mechanical vibration	±20g
Storage temperature	-40~+125℃
Operating temperature	-20~+85℃ Compensation temperature: -10~+70℃
Pressure port	M20×1.5, G1/4, NPT1/4 can be equipped with other threads
Electrical connections	Direct lead, large Hessman, watertight connector (IP68)
Remarks	Current type can be equipped with display (15~30VDC power supply)
