【Product Description】

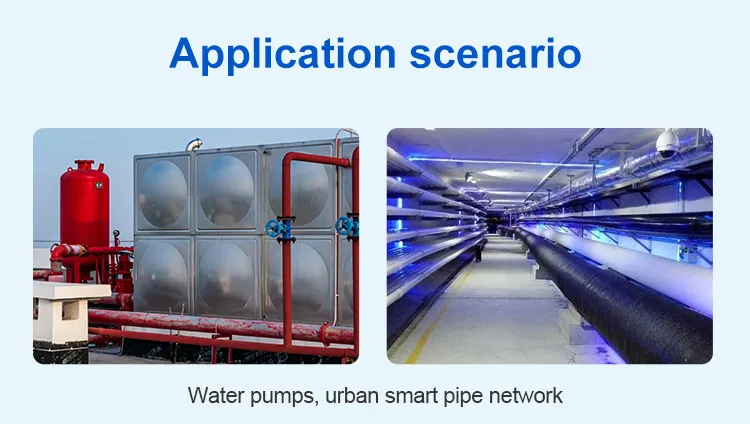

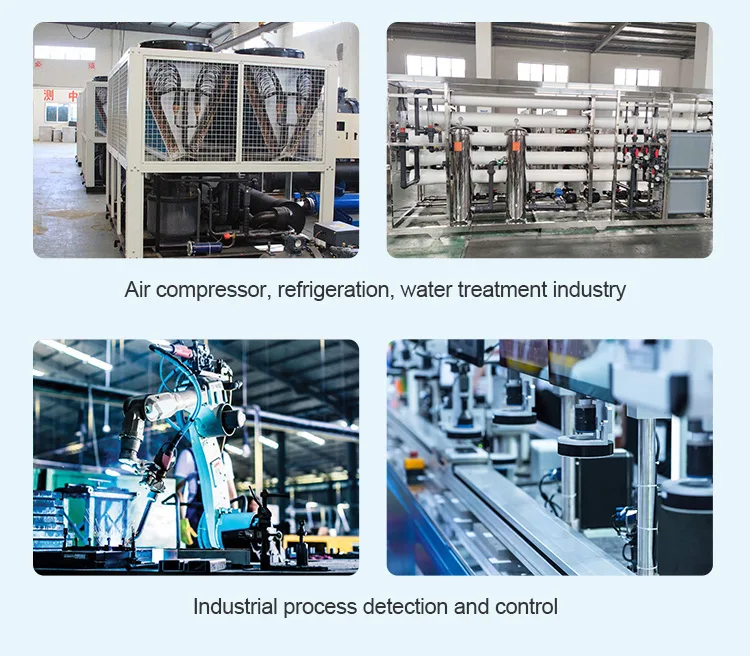

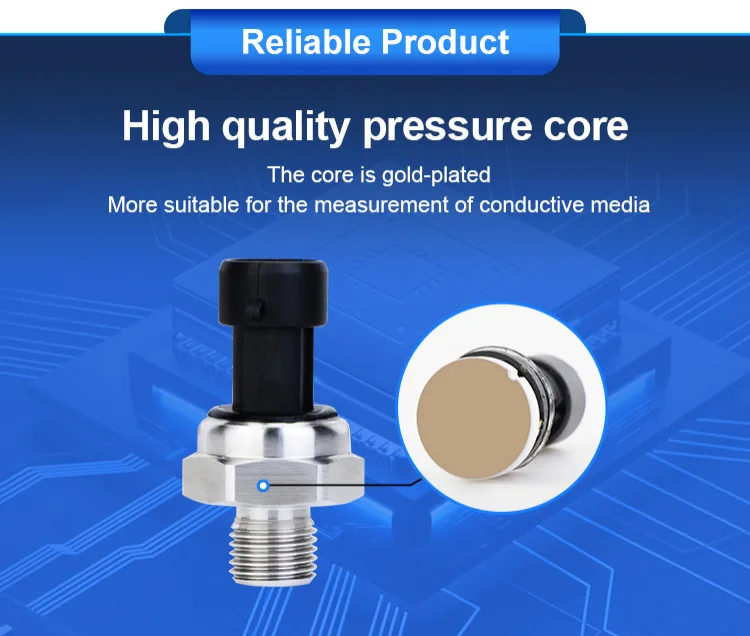

AZIC800-1500 water pressure sensor is refined by a special process, the sensitive detection material has the advantages of high elasticity, corrosion resistance, abrasion resistance, strong shock and vibration resistance, and good thermal stability. Water pumps, urban intelligent pipe networks, air compressors, refrigeration, water treatment industries, industrial process detection and control.

【Product Features】

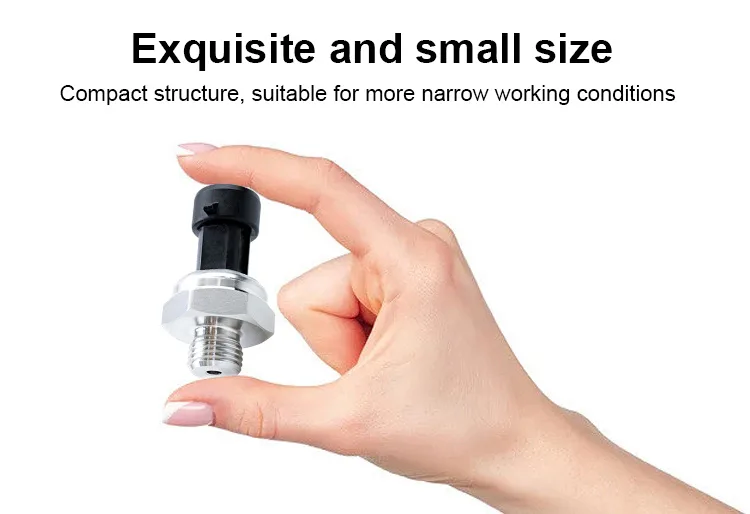

● Easy installation and strong versatility;
● Highly efficient lightning protection, strong protection against RF and electromagnetic interference;
● Anti-surge and polarity reversal protection;
● High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance;
● Advanced temperature digital compensation function;

【Technical Parameters】

Measuringmedium	Water
Pressure range (bar)	10，16，25
Signal output	0.5~4.5VDC 4~20mA
Signal line specifications	3 Wire 2 Wire
Supply voltage	5VDC 9~30VDC
Precision	±1%FS
Total error band	±3%FS

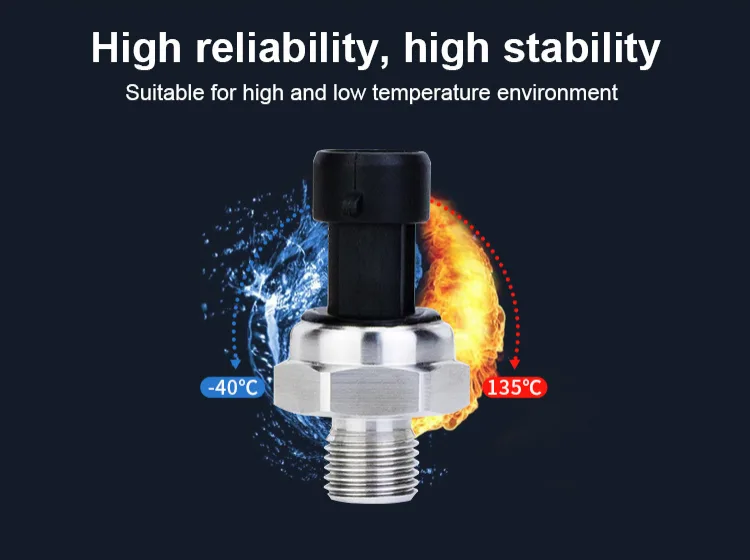

Operating temperature	-40~+135℃
Storage temperature	-40~+150℃
Overload pressure	200%FS
Breaking pressure	300%FS
Vibration	11g(50~2000Hz)
Supply current	10mA (maximum)
Output response	3mS
Service life	5 million full-scale cycles
Short circuit protection	Have

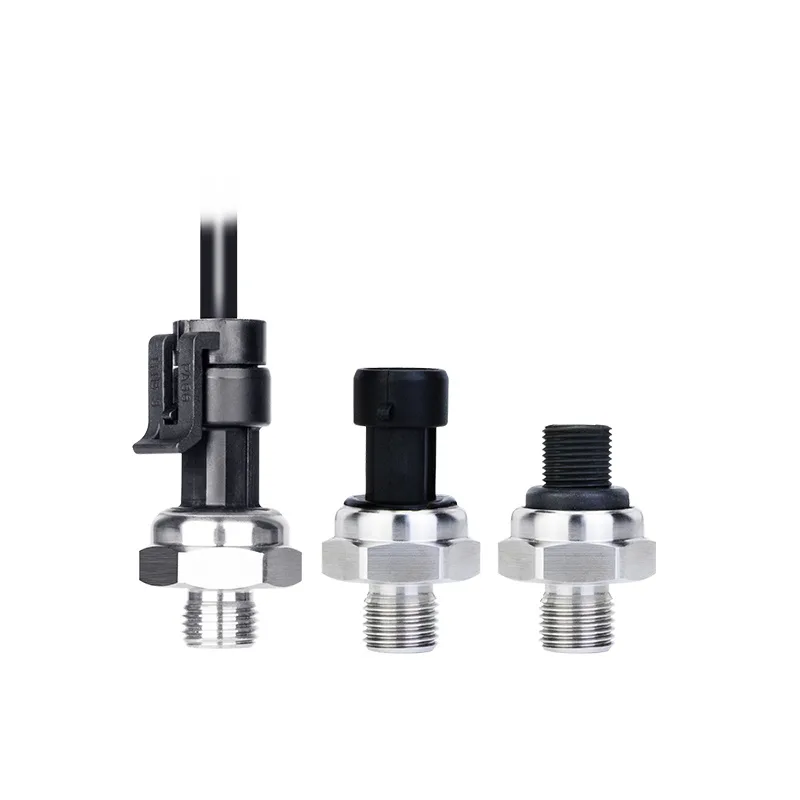

Pressure port	G1/4,NPT1/4,M20x1.5,M12x1.5,NPT1/8
Electrical connections	Packard connector
Load Resistance	10KΩ (typical)
Protection level	IP65
Overvoltage protection	16VDC (5V power supply)

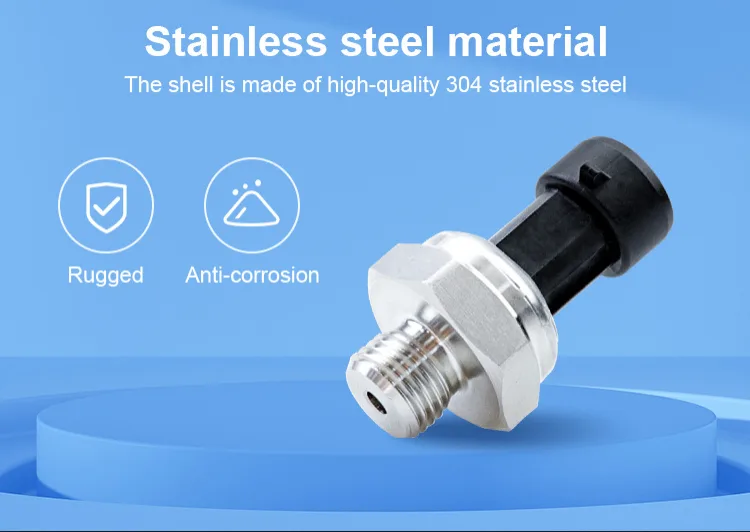

Material	304 stainless steel
Reverse voltage	-14VDC (5V power supply)
