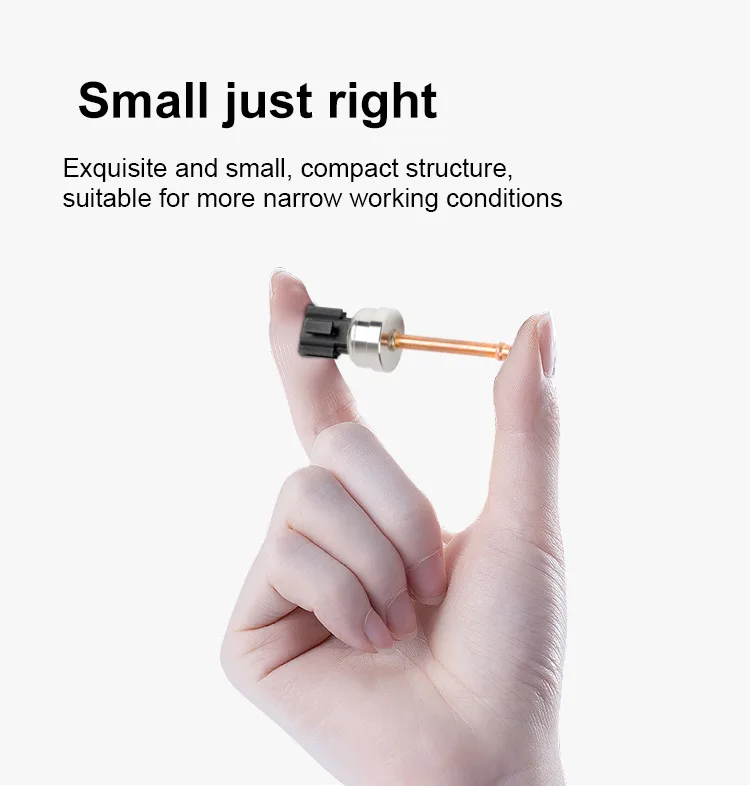

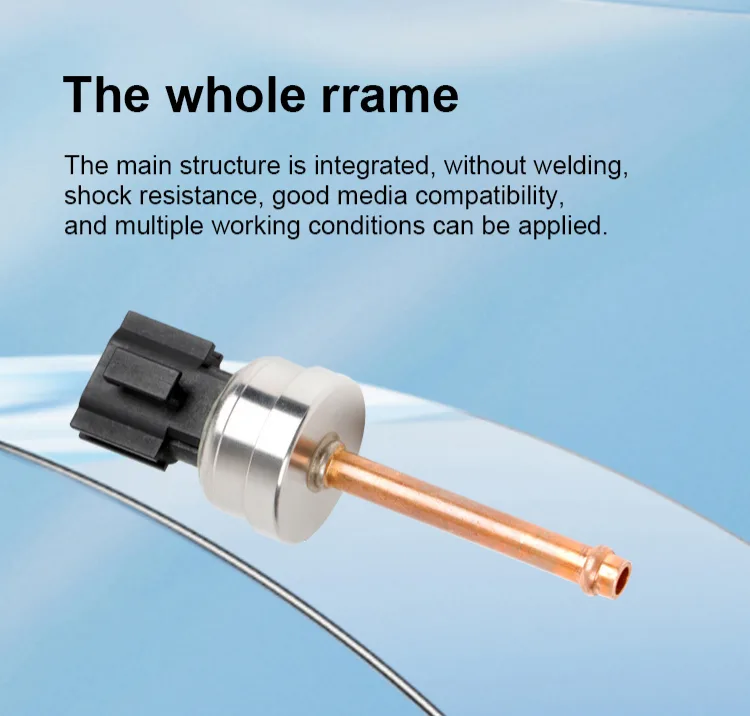

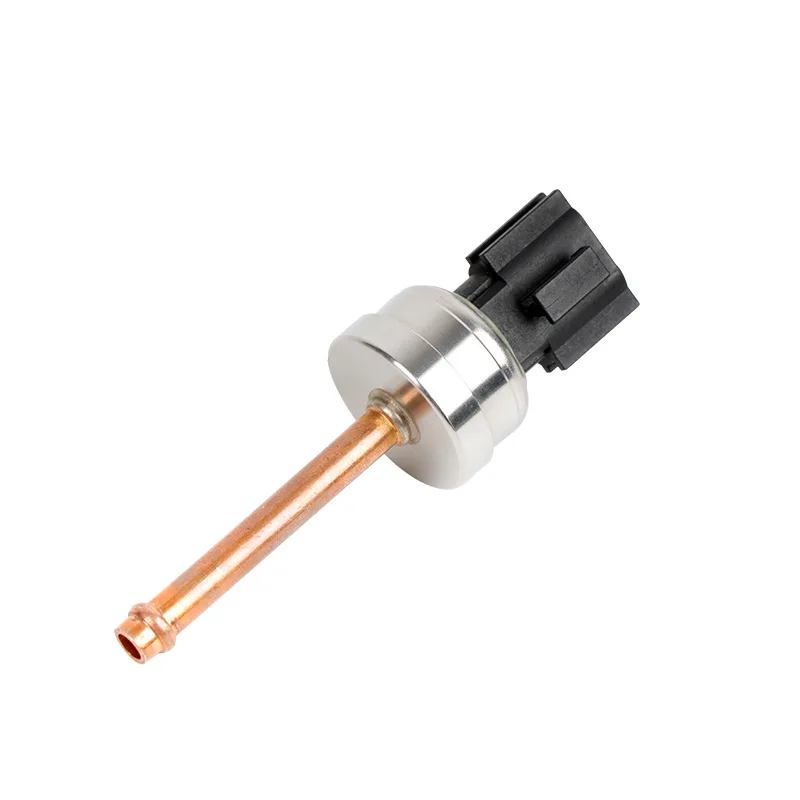

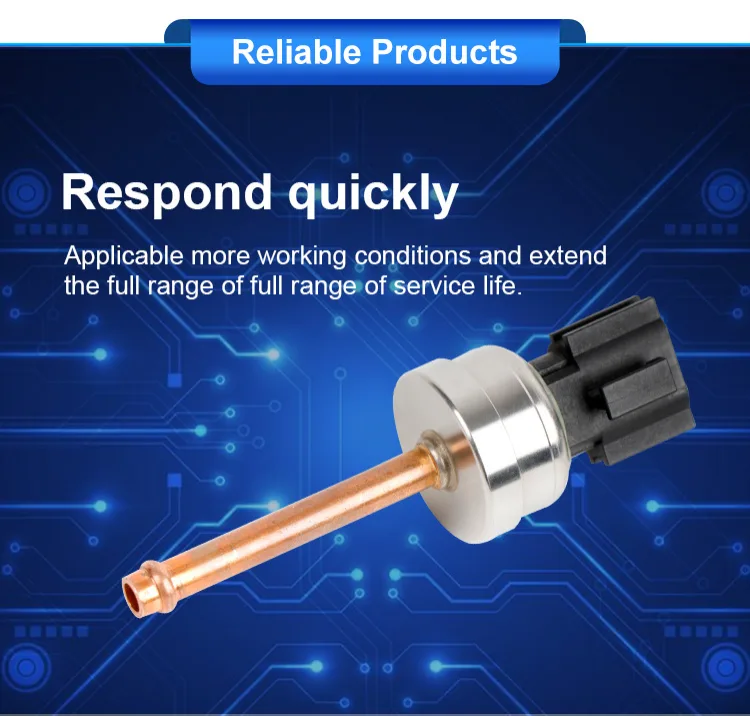

AZIC800-1400 air conditioner pressure sensor is used to measure the refrigerant pressure in the air conditioning system for real-time monitoring.
【Product Description】

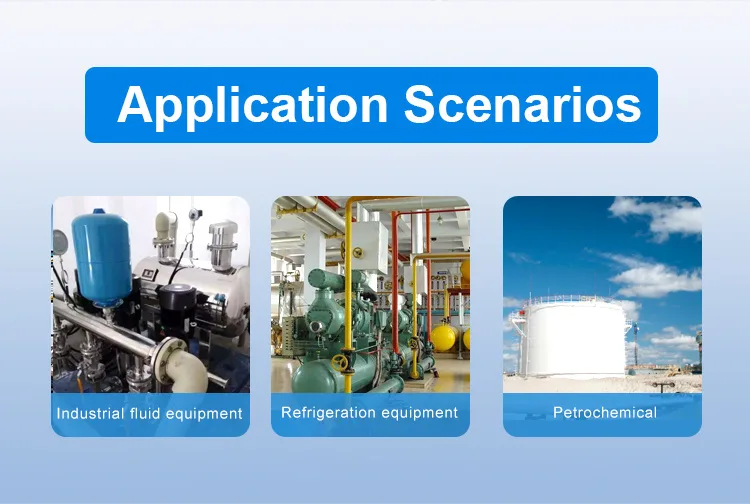

AZIC800-1400 air conditioner pressure sensor is used to measure the refrigerant pressure in the air conditioning system for real-time monitoring, reducing idle speed and saving energy, etc. The product has the characteristics of fast response speed and good compatibility with measurement. Widely used in compressors, refrigeration and air-conditioning equipment, petroleum, chemical, industrial fluids and other equipment.
【Technical Parameters】
|
Measuring medium |
R22, R407C, R134A |
|
Pressure Range(bar) |
0~20 0~46 |
|
Signal Output |
0.5~4.5VDC |
|
Signal Line Specification |
3 Wire |
|
Supply Voltage |
5VDC |
|
Accuracy |
±1.5 %FS |
|
Full error band |
-30~+100°C |
|
Operating temperature |
±0.02 %FS/°C |
|
Storage temperature |
-30~+120°C |
|
Overload pressure |
200% FS |
|
Destruction pressure |
300% FS |
|
Vibration |
11g (50~2000Hz) |
|
Supply current |
1 0mA (maximum) |
|
Electrical connections |
YAZAKI RK03FB |
|
Protection level |
IP65 |
|
Material |
304 stainless steel |
|
Service life |
5 million full scale cycles |
|
Pressure interface |
Φ6*1.0 pipe connection |
|
Load Resistance |
10KΩ (typical) |
|
Overvoltage protection |
16VDC |
|
Reverse voltage |
-14VDC |
