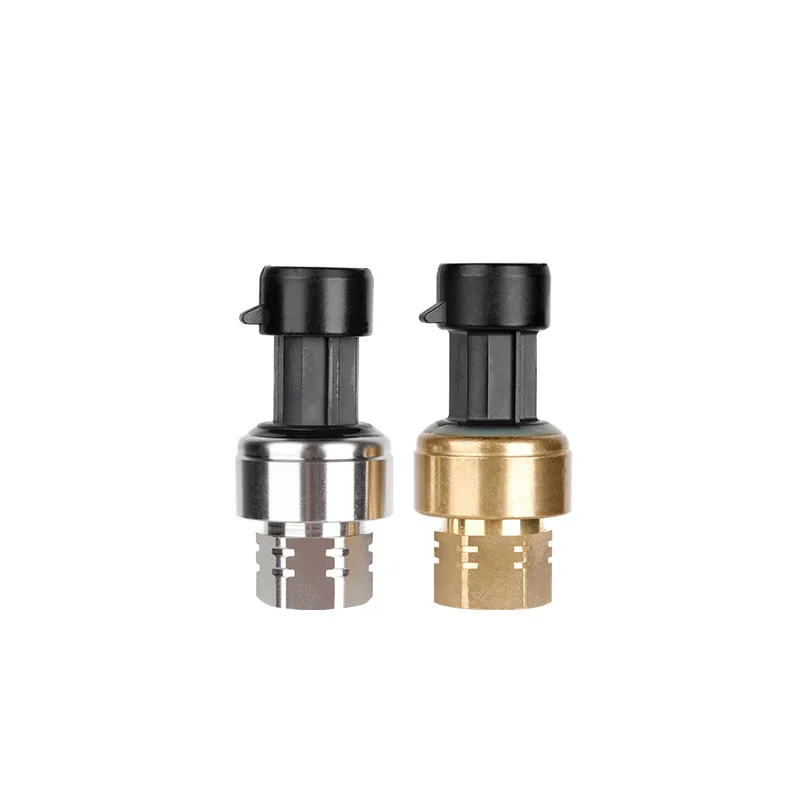

AZIC800-1300 Refrigerant Pressure Transmitters wtih the pressure detection sensitive components are made of ceramic materials through special process.
【Product Description】
AZIC800-1300 Refrigerant Pressure Transmitters wtih the pressure detection sensitive components are made of ceramic materials through special process. The laser calibration process performs zero and full scale calibration over a wide temperature range, which enhances the long-term stability of the transmitter in industrial environments.
【Product Features】
● Sensitive detection devices are imported
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability
【Application Range】
● Dedicated to refrigeration and air compressors
● Air conditioning production line detection
【Technical Parameters】
|
Pressuretype |
Gauge |
|
Overload pressure |
200%FS |
|
Pressure range (bar) |
10 20 30 35 45 (others can be customized on demand) |
|
Destruction pressure |
300%FS |
|
Signal output |
4~20mA、0~10VDC |
|
Mechanical vibration |
±20g |
|
Signal Line Specifications |
2Wire、3Wire |
|
Shock (11ms) |
100g |
|
Supply voltage |
9~30VDC、15~30VDC |
|
Protection class |
lP65 |
|
Accuracy |
±0.5%FS、±1%FS |
|
Material |
304 stainless steel material |
|
Temperature compensation |
-10~70℃ |
|

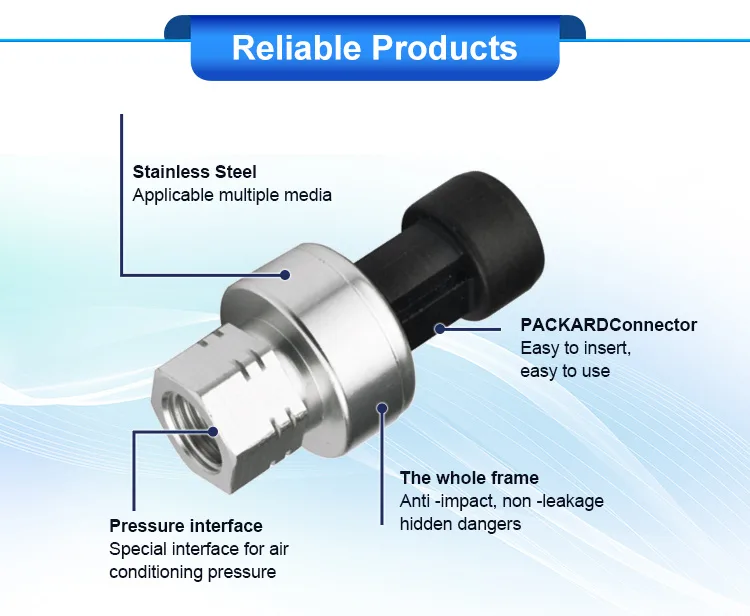

Electrical connections |
Packard Connector Direct lead |
|
Long-term stability (1 year) |
±0.5%FS |
|
Pressure port |
7/16-20UNF (others can be customized) |
|
Operating temperature |
-40~+85℃ |
|
Storage temperature |
-40~＋105℃ |
