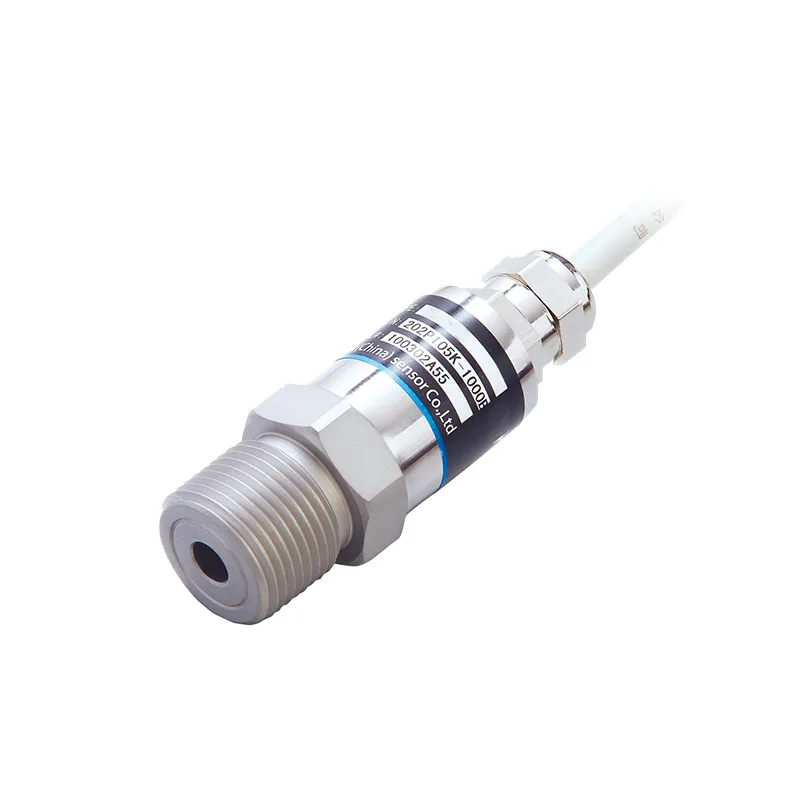

AZIC800-401 engineering machinery industry pressure transmitter, the elastomer and pressure interface adopt an integrated structure design.
【Product Overview】
AZIC800-401 engineering machinery industry pressure transmitter adopts advanced glass micro-melting technology, sintered at 500℃, and the elastomer and pressure interface adopt an integrated structure design, no "O" ring, no weld, no leakage risk, and strong corrosion resistance.
【Product Overview】
● Advanced production technology, overall structure design of elastomer, no leakage risk
● With built-in pulse buffer
● Advanced anti-interference and anti-surge circuit protection
● Excellent impact resistance, overload resistance, vibration resistance, and corrosion resistance
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, and good long-term stability
【Application Range】
● Industrial process measurement and control
● Heavy industry equipment matching
● Industrial machinery manufacturing measurement and control
【Technical parameters】
|
Range |
0~6...600Bar(Gauge) |
|
Output signal |
4~20mA，0.5~4.5VDC，0~5VDC，0~10VDC |
|
Precision |
±0.5%FS，±1%FS |
|
Signal Line Specifications |
2Wire（4~20mA），3Wire（0.5~4.5VDC，0~5VDC，0~10VDC） |
|
Supply voltage |
9~30VDC（4~20mA，0~5VDC），5VDC（0.5~4.5VDC），15~30VDC（0~10VDC） |
|
Medium temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Temperature compensation |
-10℃~+70℃ |
|
Long-term stability |
≤±0.1%FS/year |
|
Allow overload |
300%FS |
|
Breaking pressure |
500%FS |
|
Shock (11mS) |
100g |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Full scale temperature drift |
±0.02%FS/℃ |
|
Pressure port |
M20*1.5, G1/4 (can be customized) |
|
Electrical connections |
M12 connector, direct outlet, large Hessmann, Pack connector (customizable) |
|
Degree of protection |
IP65 |
|
Material |
17-4PH (probe) + 304 stainless steel electronic warehouse |
