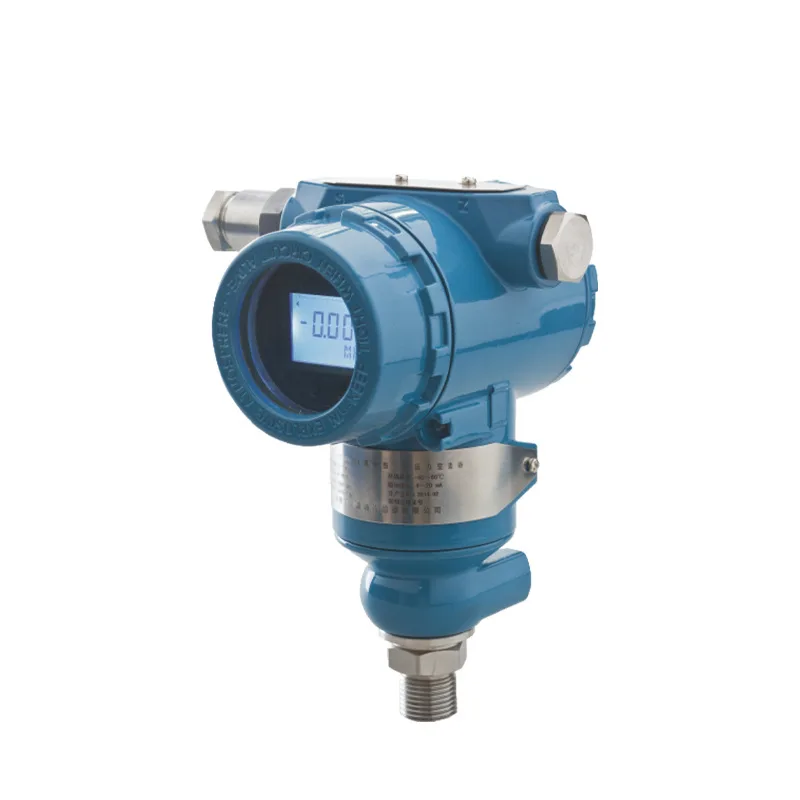

AZIC800-3051TG intrinsically safe industrial pressure transmitter is low cost pressure transmitter for OEM automation.
【Product Overview】
AZIC800-3051TG intrinsically safe industrial pressure transmitter is made of single crystal silicon made of internationally leading MEMS technology. The unique single crystal silicon suspension design achieves the product's leading overpressure performance. It is embedded with a pressure measuring diaphragm and signal processing module imported from Germany. The product has a wide operating temperature range, high measurement accuracy, and stable and reliable performance output.
【Product Features】
● High accuracy, good long-term stability
● Excellent static pressure characteristics and environmental adaptability
● Standard signal output, HART protocol optional
● Intrinsically safe explosion-proof design Exia II Ct4 Ga Exia D 20 T130
【Technical Parameters】
|
Standard range |
Gauge pressure, absolute pressure |
|
|
Pressure range (bar): 0~0.1...400 |
||
|
Technical indicators |
Signal output |
4~20mA HART protocol optional |
|
Signal Line Specifications |
2wire |
|
|
Display method |
LCD display |
|
|
Supply voltage |
10.5~26VDC (recommended value: 24VDC) |
|
|
Precision |
±0.5%FS ±0.25%FS |
|
|
Operating temperature |
-20~+60℃ |
|
|
Temperature compensation |
-20~+60℃ |
|
|
Storage temperature |
-40~+105℃ |
|
|
Point of load resistance |
Voltage output: RL>100KΩ, current output: RL≤(power supply voltage -9V) |
|
|
Overload pressure |
200% span |
|
|
Breaking pressure |
300% span |
|
|
Shell material |
Aluminum alloy explosion-proof shell |
|
|
Electrical Interface |
direct lead |
|
|
Pressure port |
M20×1.5 or customized |
|
|
Degree of protection |
IP65 |
|
|
Explosion-proof certification |
Ex ia ⅡCT4 Ga |
|
