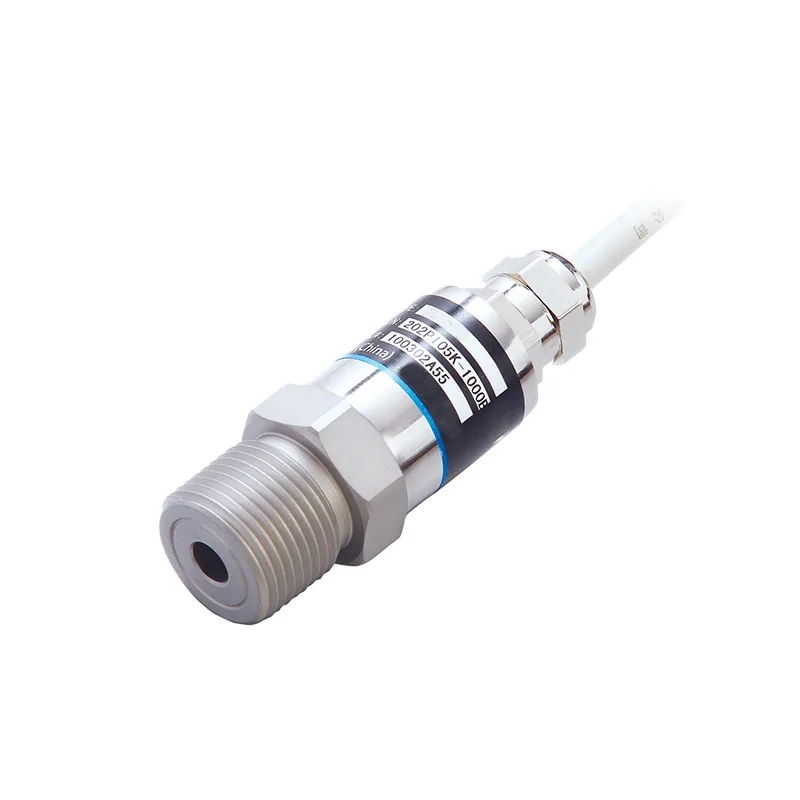

AZIC800-215 explosion-proof pressure transducer is Chinese sanitary pressure transmitter for food and beverage industry.
【Product Description】
AZIC800-215 explosion-proof pressure transducer has effective lightning protection and strong RFI&EMl protection, built-in high-performance intrinsically safe, explosion-proof circuit (ExdICT6 Gb).
Explosion-proof pressure transmitter with excellent resistance to shock, overload, vibration and corrosion, advanced digital temperature compensation and a wide range of operating temperatures.Stainless steel construction, built-in compatibility, quality you can trust.
【Features】
● Excellent shock, overload, vibration and corrosion resistance
● Explosion-proof and explosion-proof structure design, Exd ll Ct6 Gb
● Advanced temperature digital compensation function, wide operating temperature range
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
● High precision, high frequency response, good long-term stability
【Scope of application】
●Petroleum and Gas Industry:
●New Energy
●Measuring hydraulic pressure in heavy machinery like excavators, cranes, and bulldozers.
●HVAC (Heating, Ventilation, and Air Conditioning):
●Loader Scale
【Technical Parameters】
|
Pressuretype |
Gaugepressure,absolutepressure,sealingpressure |
|
Pressure range (bar) |
1、1.6、2.5、4、6、10、16、25、40、60、100、160、200、250、300、
400、500、600、750、1000、1500 |
|
Pressure Range (psi) |
15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K 12K 15K 25K |
|
Signal output |
4~20mA 0.5-4.5VDC 0.5~4.5VDC 0~5VDC 0~10VDC Rs485 RS232(proportional output) |
|
Signal Line Specifications |
2Wire 3Wire 3Wire 3Wire 3Wire 4Wire 4Wire |
|
Supply voltage |
9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VDC 9~30VDC 9~30VDC |
|
Pressure port |
M20×1.5 G1/4 NPT1/4 (others can be customized on request) |
|
Material |
17-4PH (range≥6bar) 304 or 316L (range＜6bar) |
|
Overload pressure |
150%FS(range＜6bar) 300%FS(range≥6bar) |
|
Destruction pressure |
200%FS (range＜6bar) 500%FS (range≥6bar, limit 10000bar) |
|
Accuracy |
±0.3%FS ±0.5%FS |
|
Shock (11ms) |
100g |
|
Long-term stability (1 year) |
±0.25%FS |
|
Explosion-proof grade |
Exd ll Ct6 Gb |
|
Response frequency (-3dB) |
3.2kHZ |
|
Protection class |
Ip65 |
|
Temperature compensation |
-20~+85℃ |
|
Electrical connections |
Direct lead |
|
Storage temperature |
-40~+125℃ |
|
Electromagnetic Compatibility (EMC) |
EN61000-6 |
|
Mechanical vibration |
±20g |
|
Certification Program |
CE RoHS |
