【Product Description】

AZIC800-225 explosion-proof high accuracy pressure transducer is a high-precision, high-stability, multi-parameter, LED, LCD display intelligent pressure measurement product, optional HART protocol function. The user can manage or calibrate the parameters through the host computer, and can also use the keys to perform on-site calibration, which is easy to operate.

【Product features】

● LCD display

● 4-20mA output Optional HART protocol

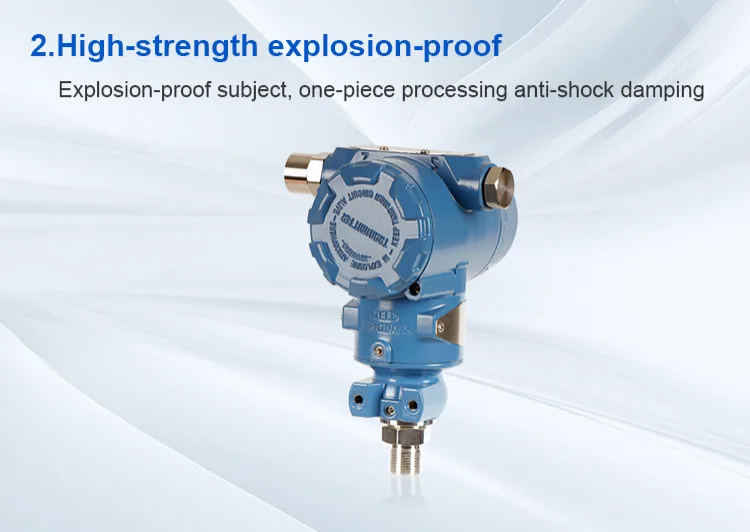

● Exdll CT6 Gb explosion-proof

● Highly corrosion resistant SS hou

● Adopt digital temperature compensation

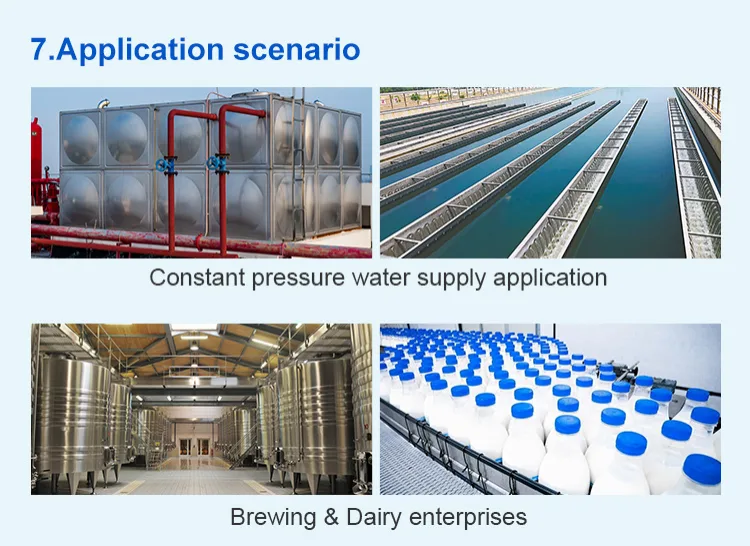

【Application range】

● Hydraulic and pneumatic control
● Petrochemical, environmental protection, air compression
● Other industrial automation process control and detection systems
● Chemical products and chemical industry
● Light industry, metallurgy, machinery

【Technical Parameters】

Pressure type	Gauge pressure, absolute pressure
Pressure range (bar)	0.5 1 2 4 5 10 16 25 40 60 100 160 200 250 300 400 500 600
Signal output	4~20mA HART protocol optional
Signal Line Specifications	2Wire
Supply voltage	12~28VDC (recommended value: 24VDC)

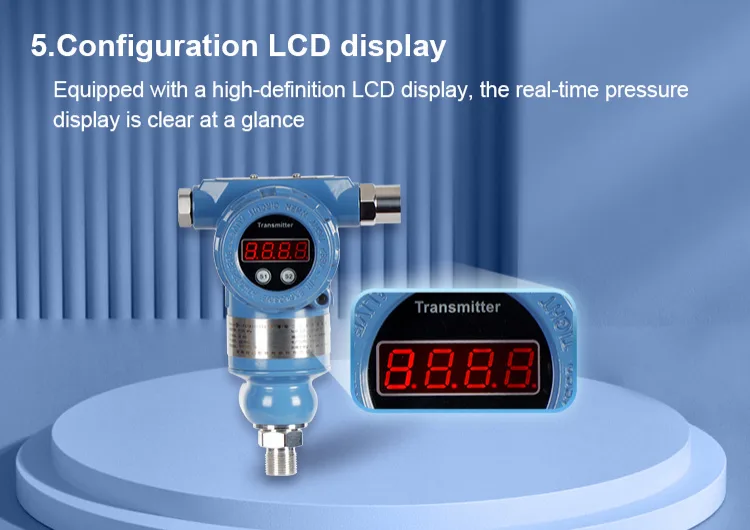

Display method	LCD display
Overload pressure	150%FS
Storage temperature	-40~+105℃
Breaking pressure	200%FS
Shell material	Aluminum alloy explosion-proof enclosure
Precision	±0.25%FS±0.5%FS±1 %FS

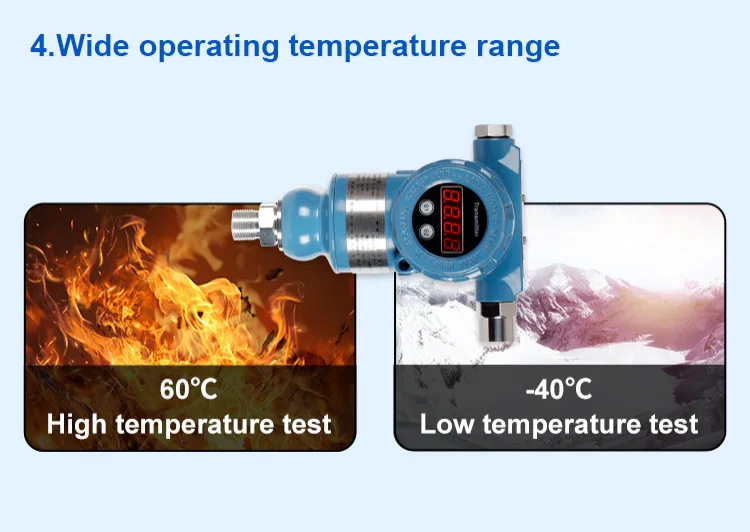

Operating temperature	-20~60℃ (Explosion-proof type)
Electrical Interface	Direct lead
Pressure port	M20×1.5 or customized
Flameproof certification	Exdll CT6 Gb

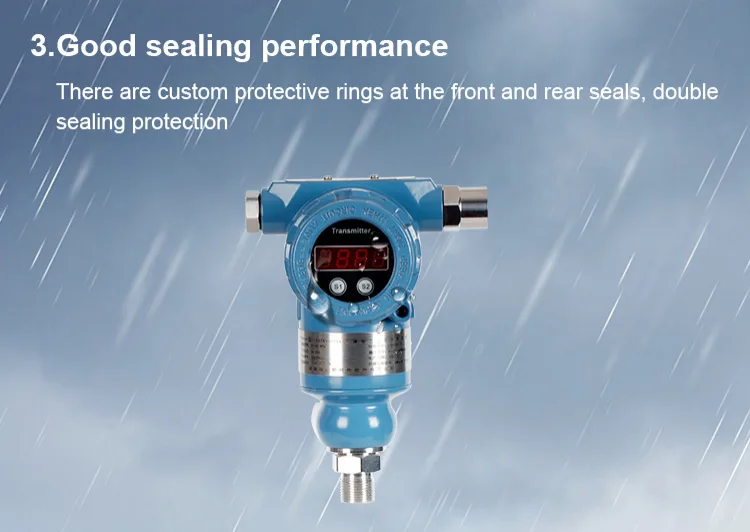

Protection class	IP65
