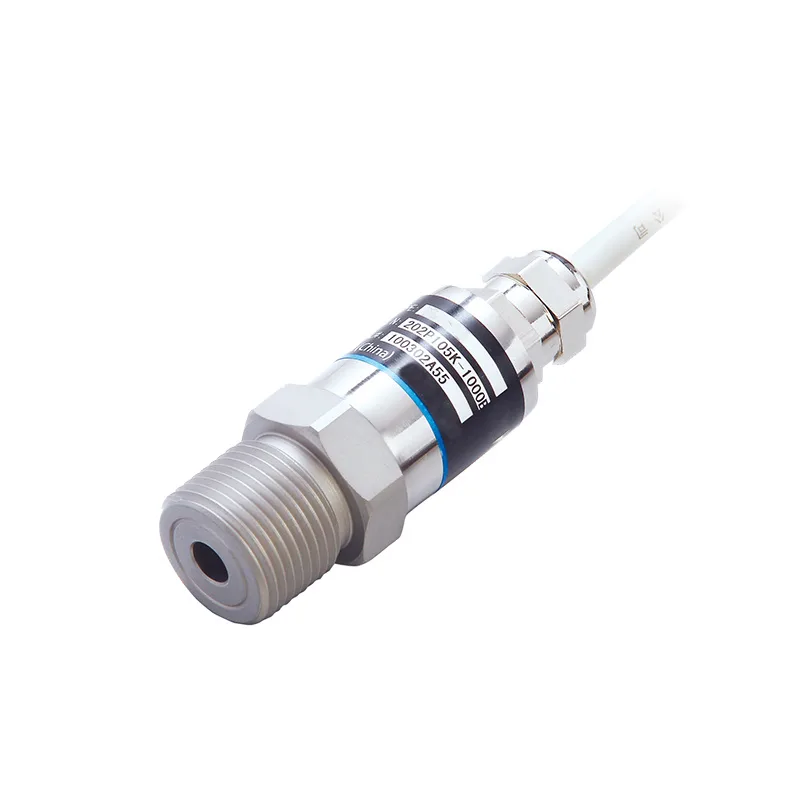

【Product Description】

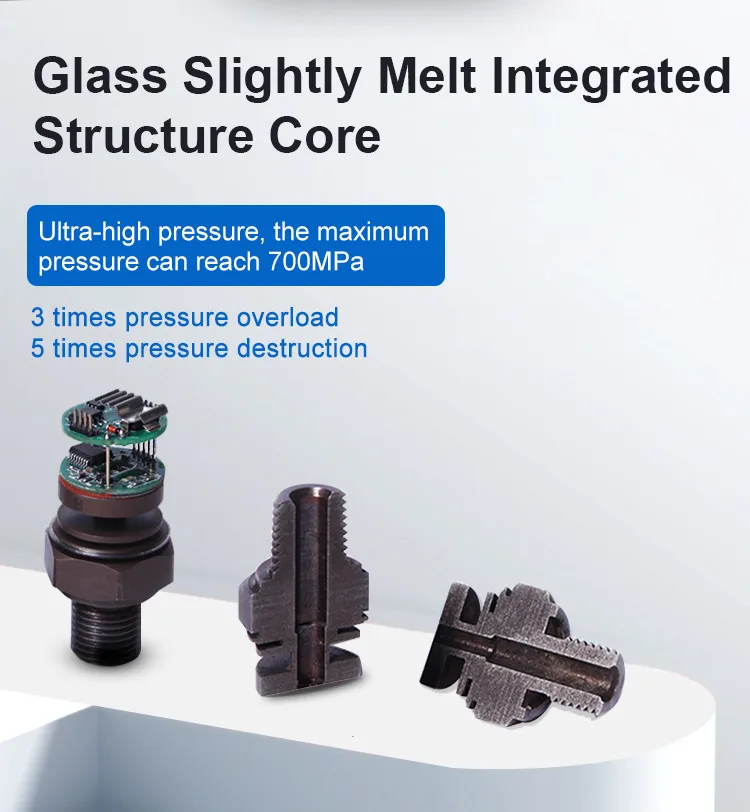

AZIC800-214 Intrinsically Safe ATEX Pressure Sensor produced by our company are based on MEMS technology and adopt advanced glass micro-dissolution technology, thereby avoiding the influence of temperature, humidity, mechanical fatigue and media on the products, and strengthening the sensor (transmitter) in the industrial environment. long-term stability.

【Product Features】

● High-efficiency lightning protection, anti-RF and electromagnetic interference protection
● Built-in high-performance intrinsically safe explosion-proof circuit, Ex ia llC T6 Ga,
● Excellent impact resistance, overload resistance, vibration resistance, and corrosion resistance
● Advanced temperature digital compensation function, wide operating temperature range

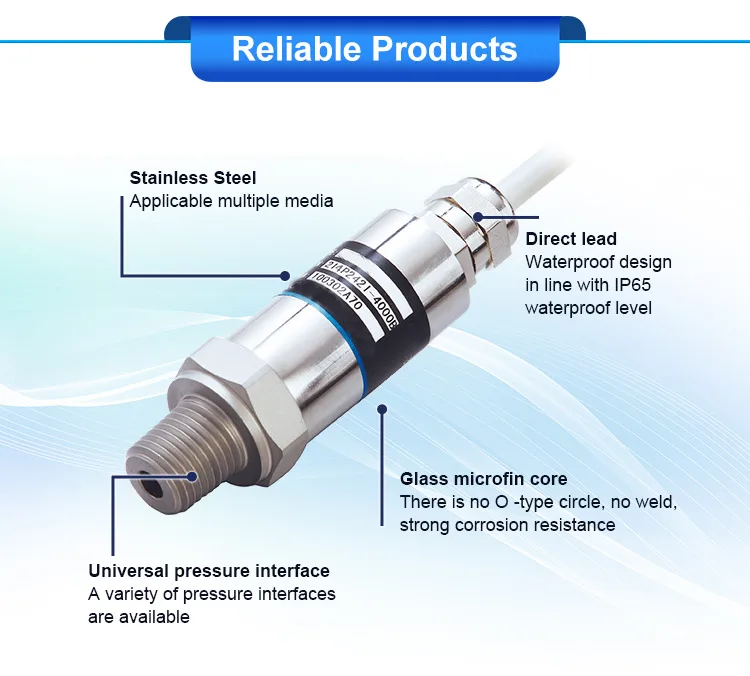

● Stainless steel structure, good medium compatibility
● High precision, high frequency response, good long-term stability

【Application】

● Explosion-proof industrial process measurement and control
● Hydraulic and pneumatic control systems in explosion-proof occasions
● Petrochemical, natural gas control systems
● Other explosion-proof automation system measurement and control

【Technical Parameters】

Pressure Type	gauge pressure absolute pressure sealed pressure
Pressure Range(bar)	1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 750 1000 1500
Pressure Range(psi)	15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K 12K 15K 25K
Signal Output	4~20mA 0.5-4.5VDC
Signal Line Specification	2wire 3Wire
Supply Voltage	9~28VDC 5VDC
Accuracy	±0.3%FS ±0.5%FS
Longterm Stability (1 Year)	±0.25%FS
Frequency Response (-3dB)	3.2kHz
Compensated Temperature	-20~+85°C
Storage Temperature	-40~+125°C
Mechanical Vibration	±20g
Impact (11ms)	100g
Protection level	IP65
Material	17-4PH (range≥6bar) 304 or 316L (range <6bar)
Pressure port	M20×1.5 G1/4 NPT1/4 (other customized as required)
Electrical connections	Direct lead M12 connector Hirschmann(Mini) Hirschmann(DIN43650)
Explosion-proof grade	Exia ll CT6 Explosion-proof grade Ga(4~20mA) Exia ll CT6(0.5~4.5VDC)
Overload pressure	150%FS (range <6bar) 300%FS (range≥6bar)
Breaking pressure	00%FS (range <6bar) 500%FS (range ≥6bar, limit 10000bar)
Certificates	CE RoHS
