【Product Description】

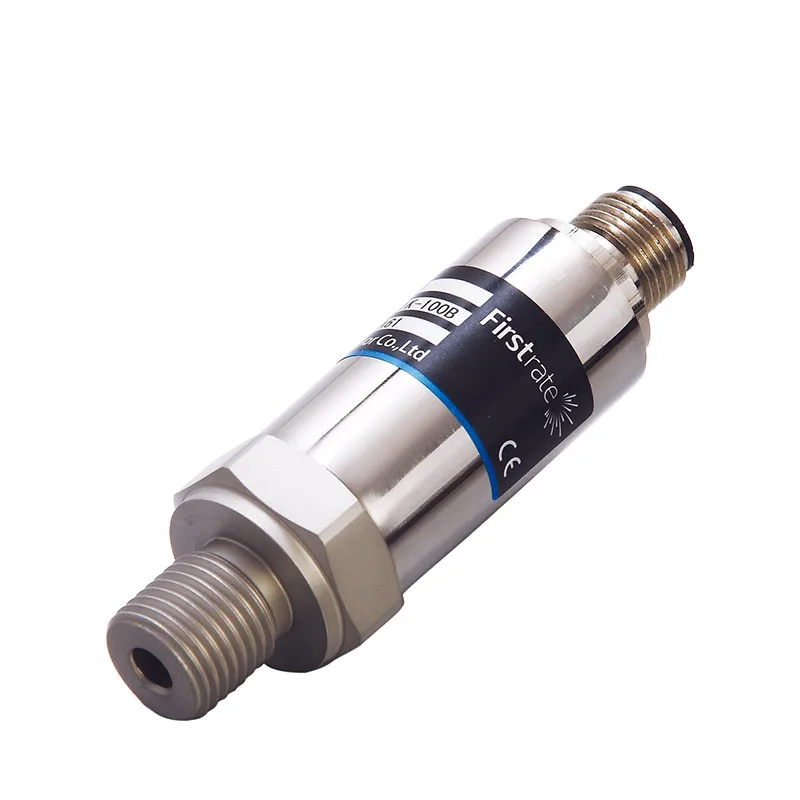

AZIC800-212 High-precision Pressure sensor produced by our company adopt all stainless steel structure, the pressure detection sensitive components have been automatically tested by computer, and the laser calibration process has carried out zero point and temperature performance compensation in a wide temperature range, which has strengthened the long-term stability of the transmitter in the industrial environment .

【Product Features】

● Efficient protection against lightning strikes, radio frequency and electromagnetic interference
● Stainless steel structure, good media compatibility
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability

【Application scope】

● Industrial process detection and control
● Hydraulic and pneumatic control systems
● Industrial machinery manufacturing
● Automated detection systems
● Pump stations and water treatment systems

Pressure type	Gauge pressure, absolute pressure, sealing pressure
Pressure range (bar)	1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 400 500 600
Pressure Range (psi)	15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K
Signal output	4~20mA/0.5-4.5VDC(proportional output) 0.5-4.5VDC 0~5VDC 0~10VDC
Signal Line Specifications	2Wire 3Wire
Supply voltage	9~30VDC 5VDC 9~30VDC 9~30VDC 15~30VDC
Accuracy	±0.1%FS ±0.25%FS
Zero temperature drift	±0.02%FS/℃
Sensitivity temperature drift	±0.02%FS/℃
Long-term stability	±0.1%FS
Overload pressure	150%FS
Destruction pressure	200%FS
Mechanical vibration	±20g
Response frequency	3.2kHZ
Temperature compensation	-20~+85℃
Operating temperature	-40~+125℃
Storage temperature	-40~+125℃
Shock (11ms)	100g
Protection class	IP65
Material	304 or 316L
Electromagnetic Compatibility (EMC)	EN61000-6
Certification Program	CE RoHS
Electrical connections	Direct Lead M12 Connector Packard Connector Hirschmann(Mini) Hirschmann(DIN43650)
Pressure port	M20×1.5 G1/4 NPT1/4 (others can be customized on request)
