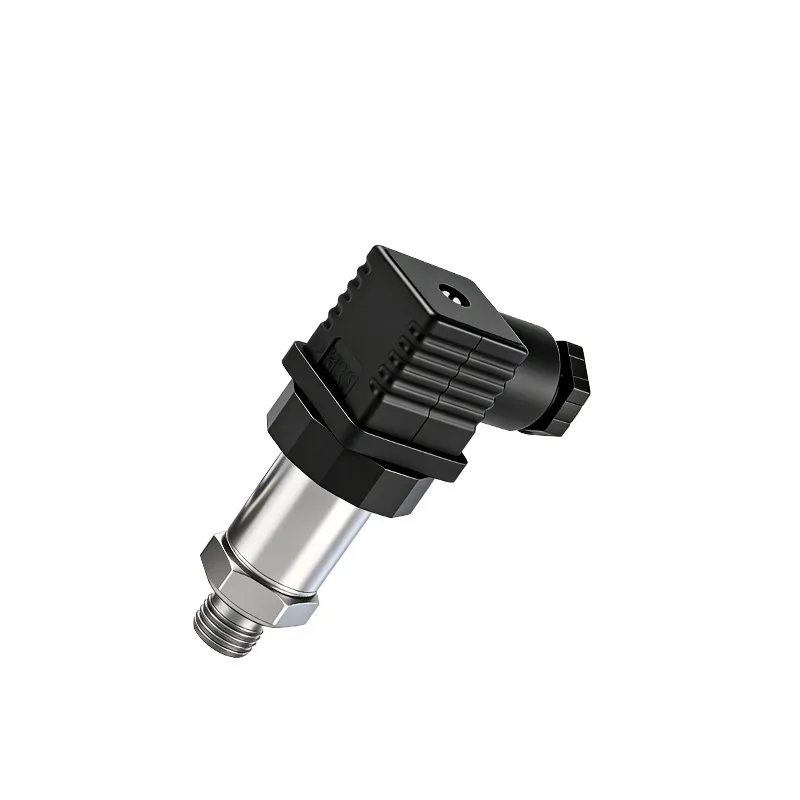

AZIC800-211B Ceramic Pressure sensor with high elasticity, corrosion resistance/wear resistance, strong vibration resistance, excellent thermal stability.
【Product Description】

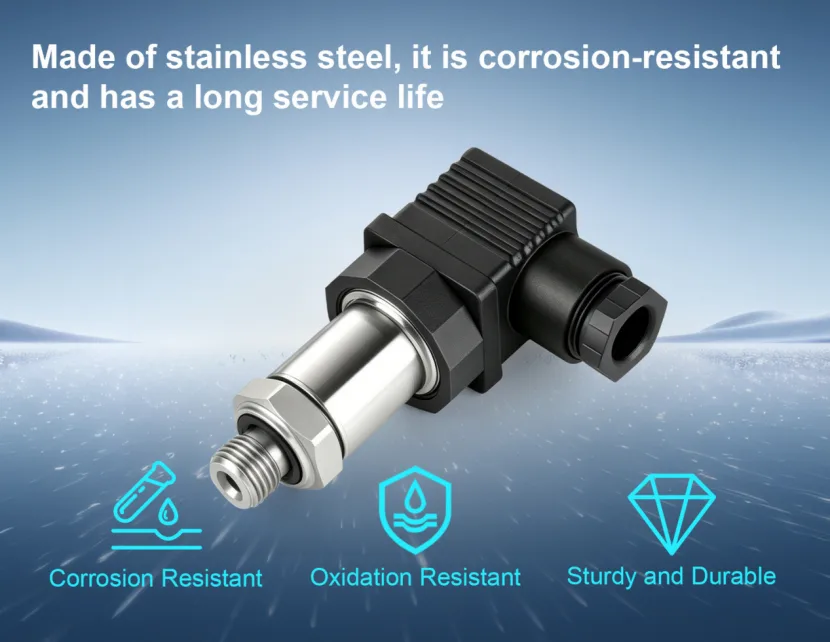

AZIC800-211B Industrial Ceramic Pressure Transmitter with features high elasticity, corrosion resistance, wear resistance, strong vibration resistance, and excellent thermal stability. The developed sensor offers high output, a wide measurement range, and an exquisite product appearance.
It is widely used in numerous fields, including process control, environmental control, hydraulic and pneumatic equipment, servo valves and rotation systems, air compressors, refrigeration, water treatment, and industrial control.
【Features】

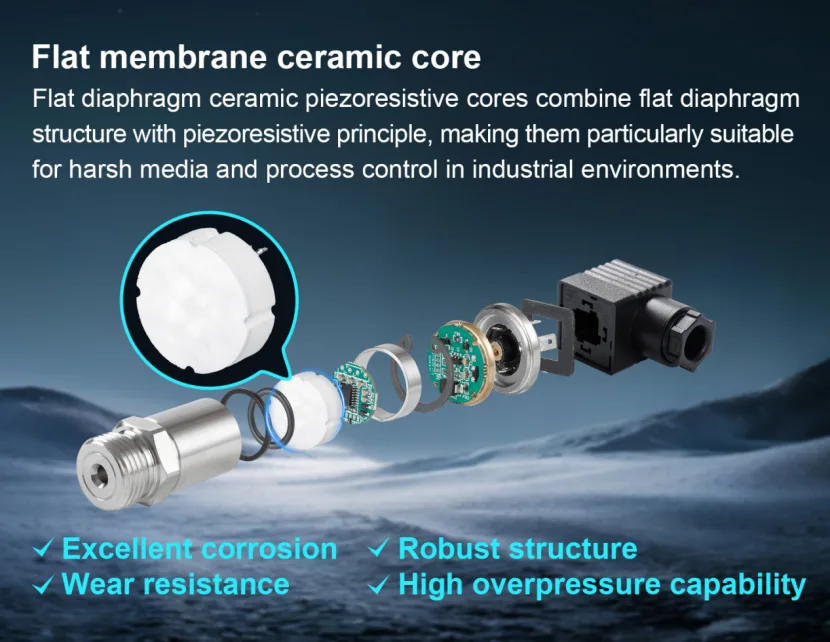

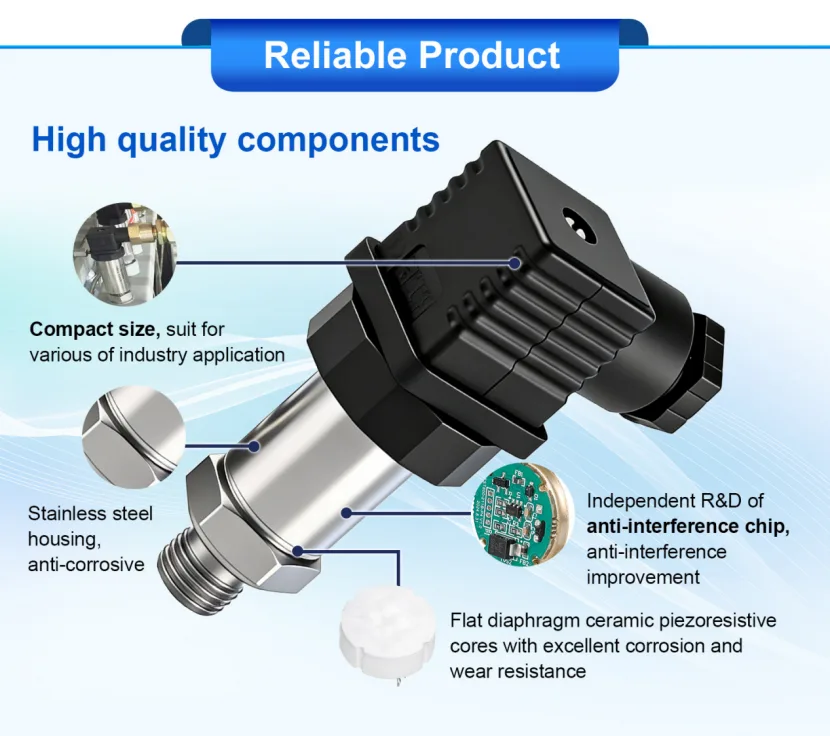

● Robust ceramic sensitive diaphragm;

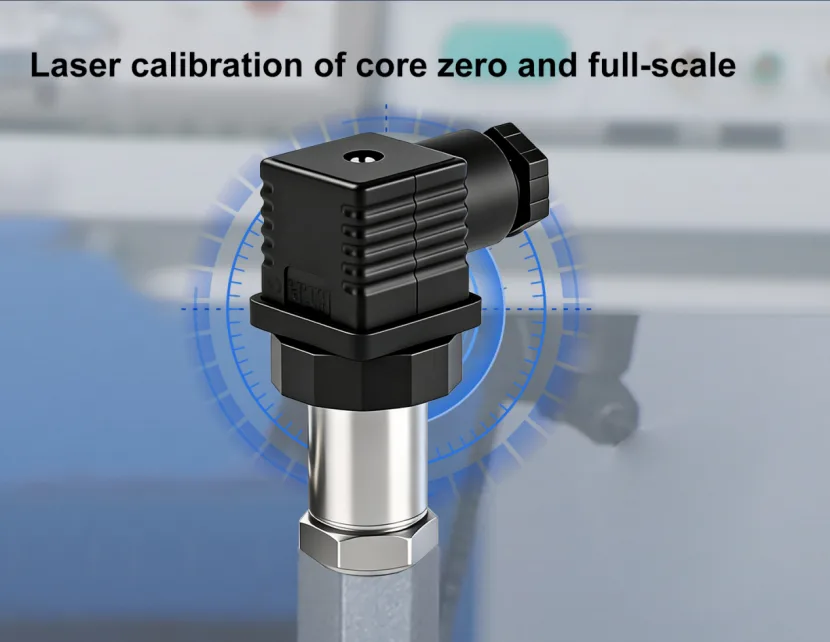

● Laser calibration of core zero and full-scale;
● Excellent resistance to corrosion, wearvibration, and high stability.
● Wide operating temperature range andcompact size.
【Applications】

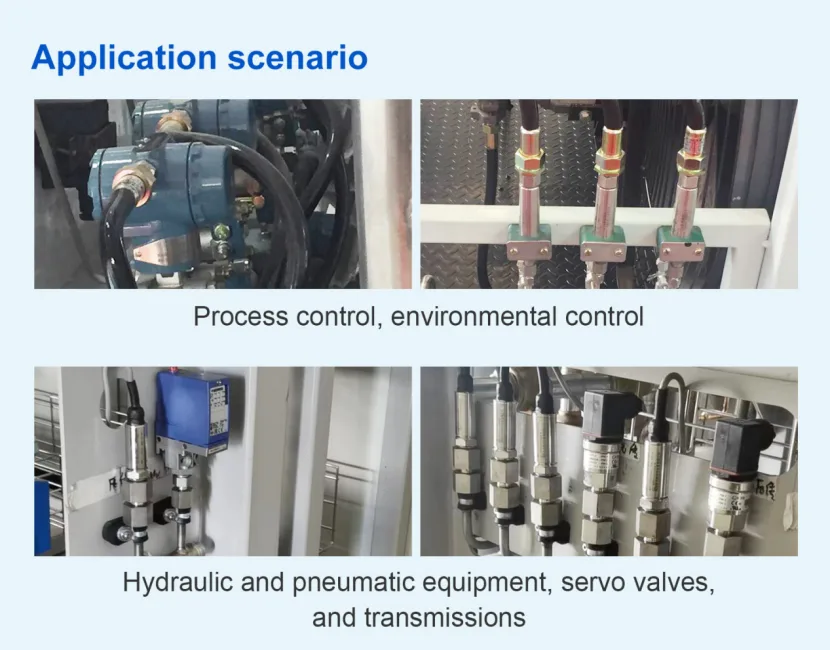

● Process control,environmental control.
● Hydraulic and pneumatic equipment, servo valves, and transmissions.

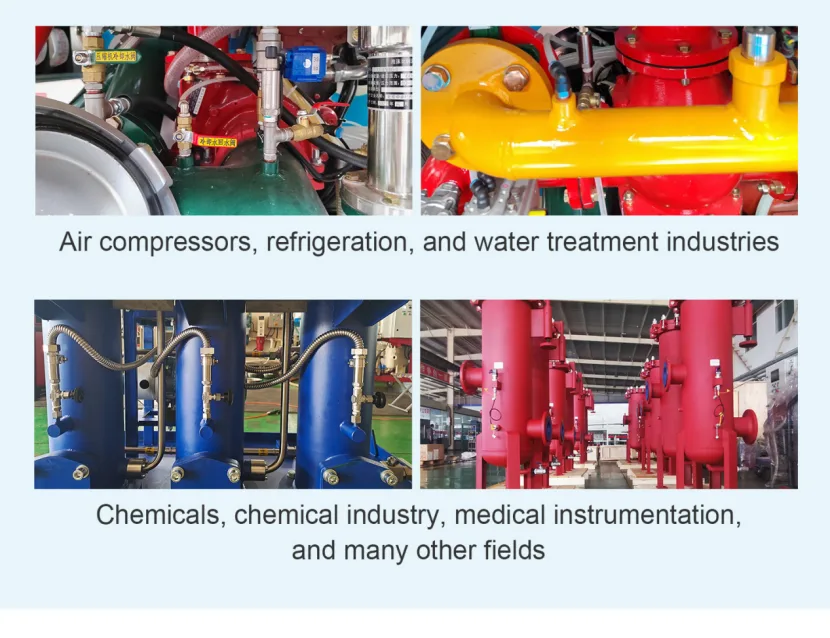

● Air compressors, refrigeration, and water treatment industries.
● Chemicals, chemical industry, medical instrumentation, and many other fields.
【Specifications】
|
Measurement range |
0~10...60Bar (Gauge Pressure) or customized |
||
|
Output signal |
4~20mA，0~5VDC，RS485 |
0~10VDC |
0.5-4.5VDC |
|
Supply voltage |
9~30VDC |
15~30VDC |
5VDC |
|
Accuracy |
±0.5%FS |
||
|
Operating temperature |
-40℃~+85℃ |
||
|
Protection class |
IP65 |
||
|
Pressure connection |
G1/4，G1/2，M20*1.5，NPT1/4 |
||
