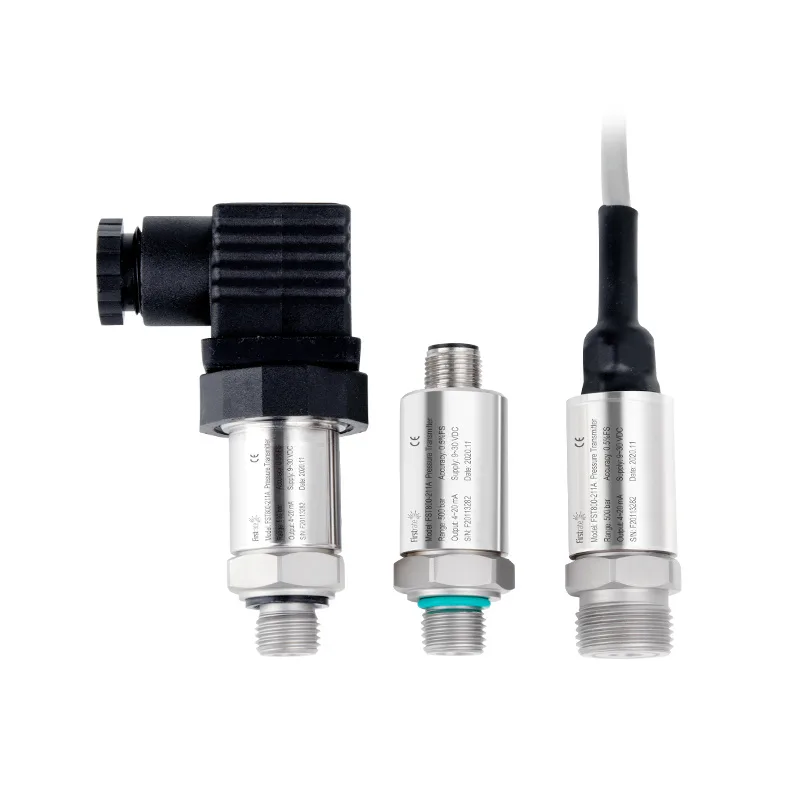

AZIC800-211A strong resistance pressure sensor with no hidden danger of leakage; lightning protection, strong resistance to radio frequency.
【Product Description】

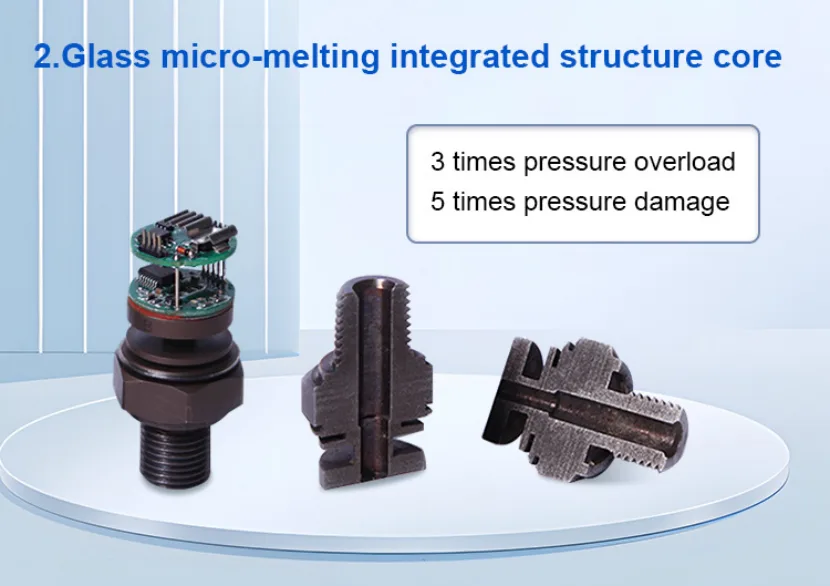

AZIC800-211A strong resistance pressure sensor, glass micro-melting process, the overall structure design of the elastomer, no hidden danger of leakage; lightning protection, strong resistance to radio frequency and electromagnetic interference protection; temperature digital compensation function, wide operating temperature range; high precision, High frequency response, good long-term stability.
【Technical Parameters】
|
Product number |
AZIC800-211A |
|
Pressure type |
Gauge pressure, absolute pressure, sealed pressure |
|
Standard range |
0~6…600 bar |
|
Signal output |
4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC |
|
Supply voltage |
9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V) |
|
Accuracy |
±0.5%FS, ±1%FS |
|
Long-term stability |
±0.1%FS/year |
|
Temperature compensation |
-20~+85℃ |
|
Operating temperature |
-40~+85℃ |
|
Storage temperature |
-40~+85℃ |
|

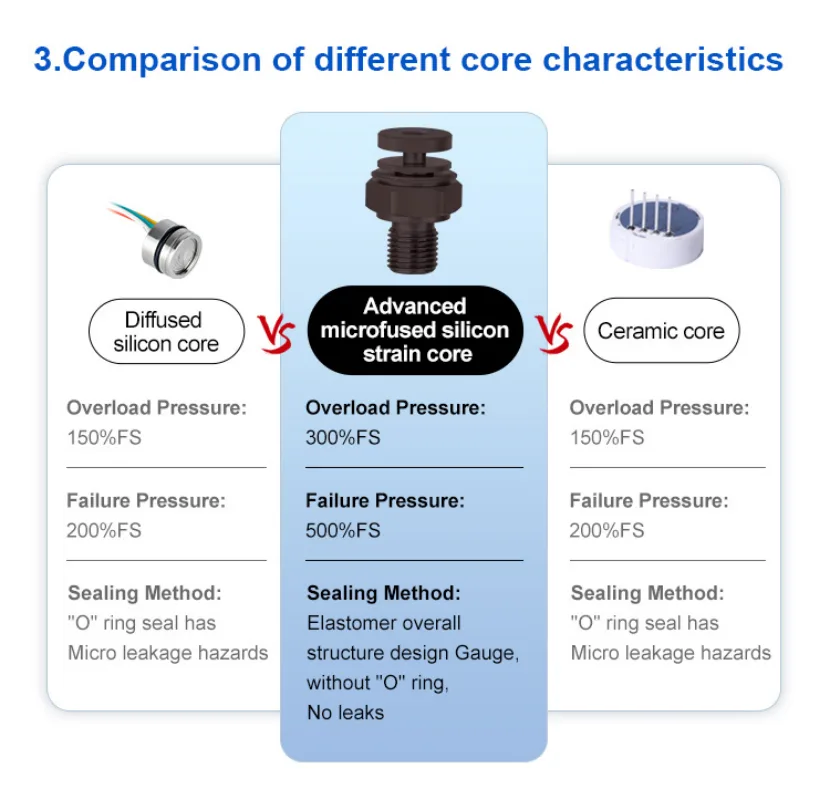

Overload pressure |
300%FS |
|
Breaking pressure |
500%FS |
|
Impact (11mS) |
100g |
|
Protection level |
IP65 |
|
Material |
17-4PH |
|
Electrical connections |
Direct lead, M12 connector, Packard connector, |
|
Pressure port |
M20X1.5 G1/4 NPT1/4 (others need to be customized) |
【Features】

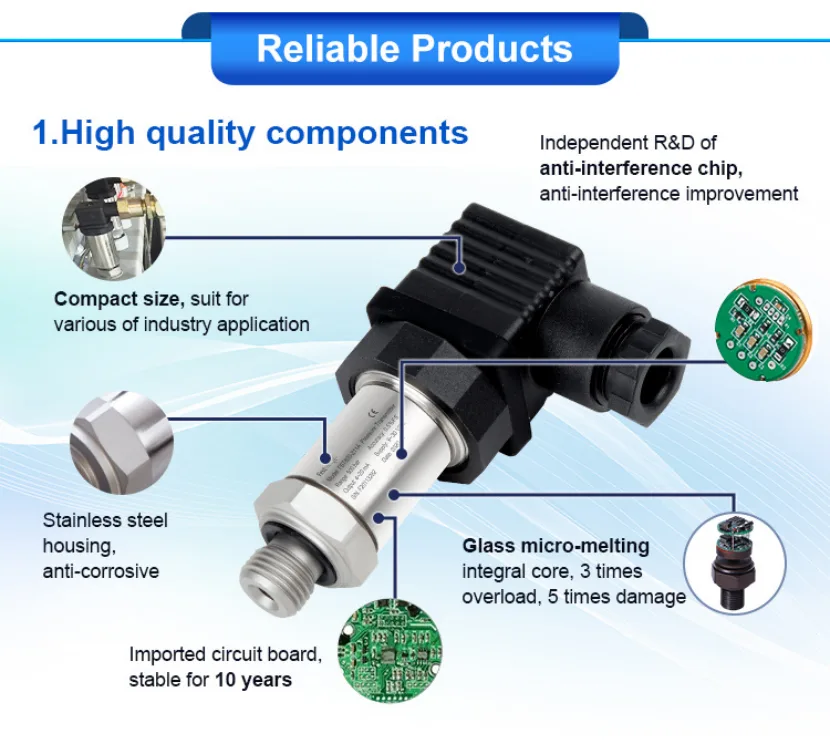

● Easy installation and strong versatility;

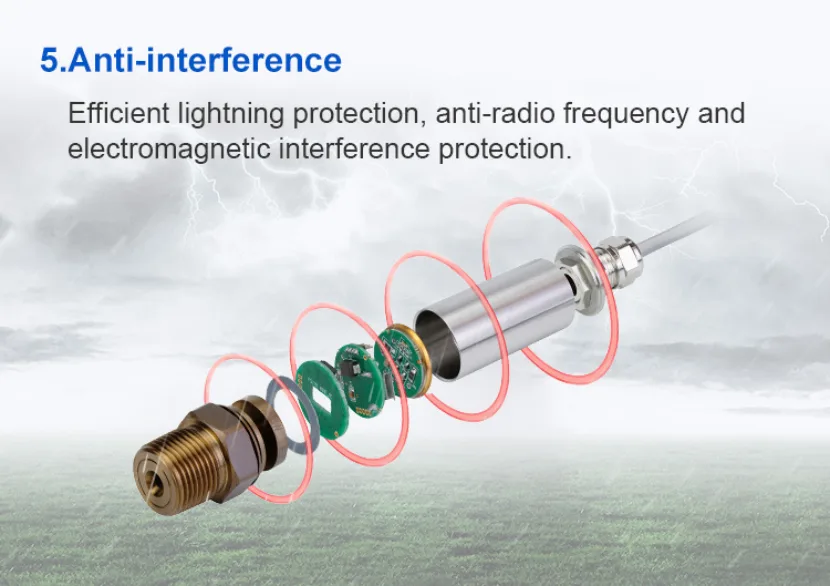

● Efficient lightning protection, strong resistance to radio frequency and electromagnetic interference protection (transmitter);

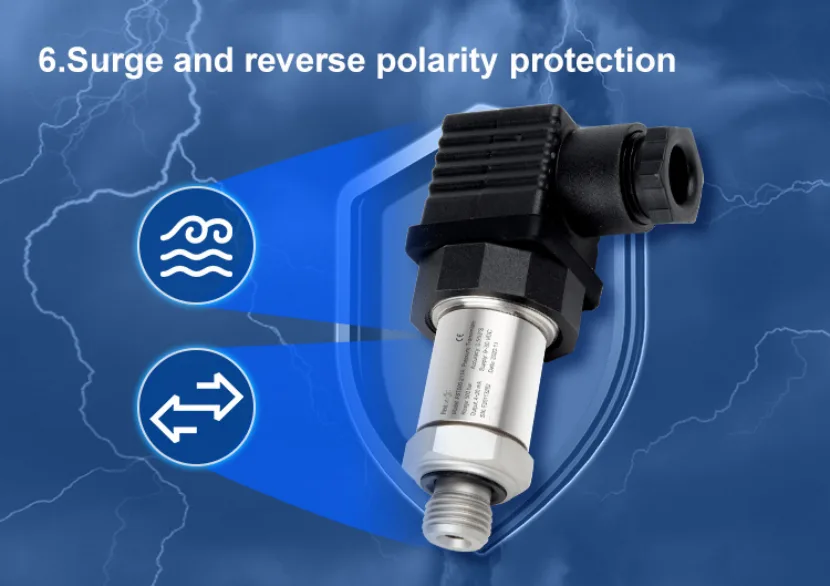

● Anti-surge and polarity reverse protection (transmitter);
● Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance;

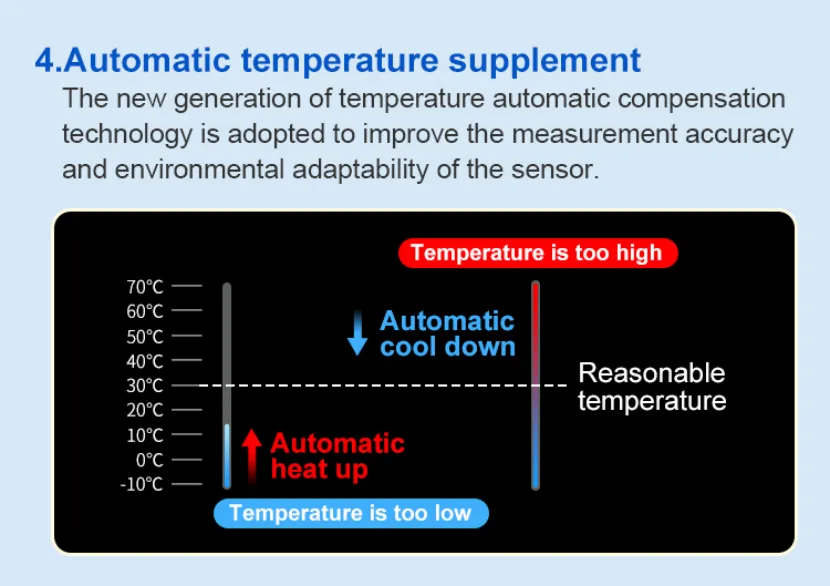

● Advanced temperature digital compensation function, wide working temperature range.

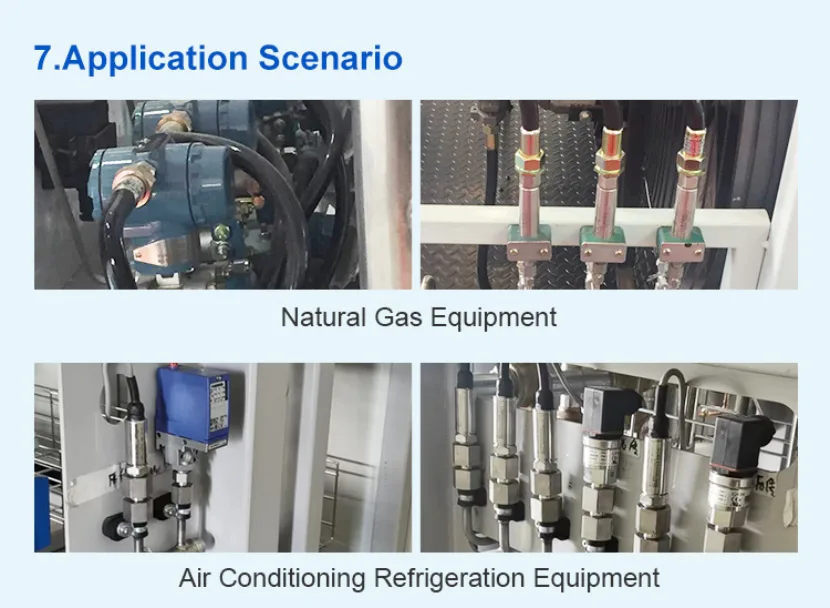

【Application scope】
● Industrial process detection and control
● Hydraulic and pneumatic control systems
● Industrial machinery manufacturing
● Automated detection systems
● Pump stations and water treatment systems
