【Product Description】

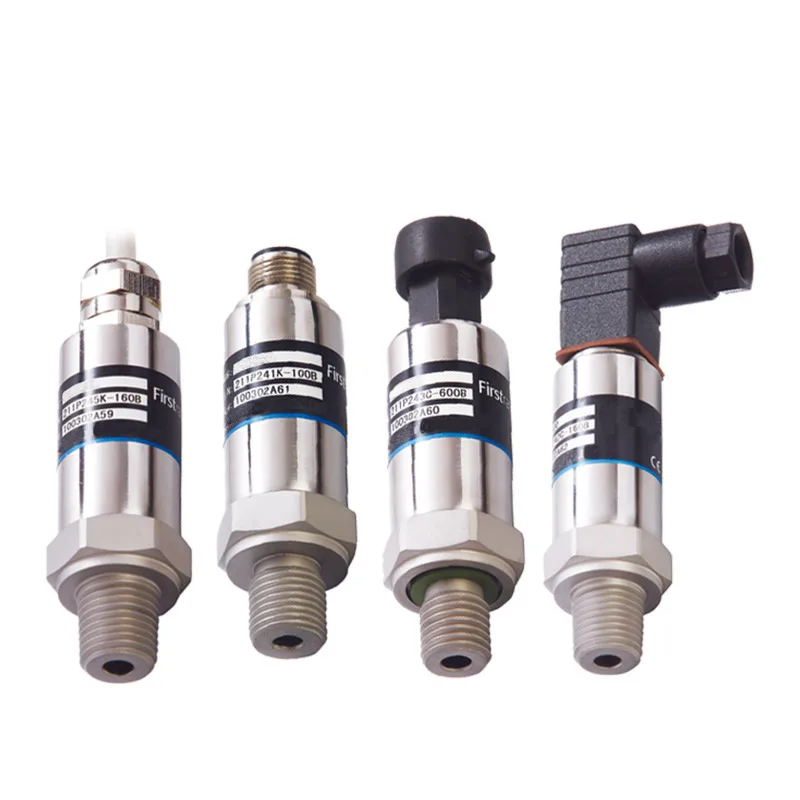

AZIC800-211 glass micro-melting process pressure sensor adopts glass micro-melting process, the overall structure design of elastomer, no hidden danger of leakage; lightning protection, strong resistance to radio frequency and electromagnetic interference protection; temperature digital compensation function, wide working temperature range; high precision, high frequency Noise, good long-term stability.

【Product Features】

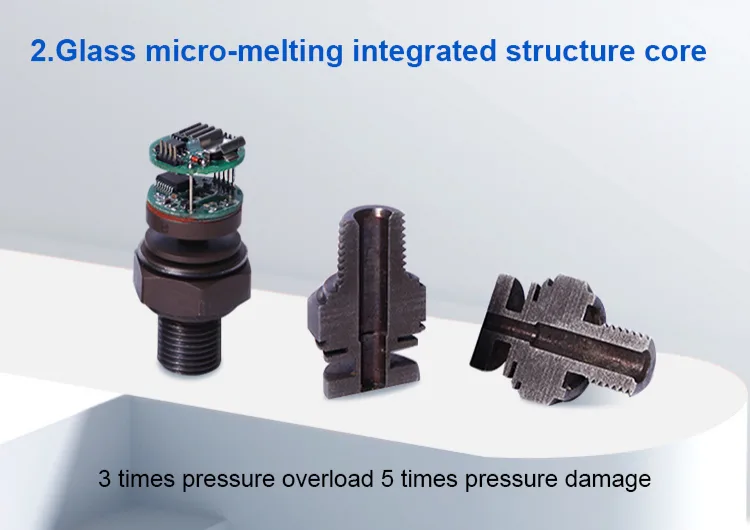

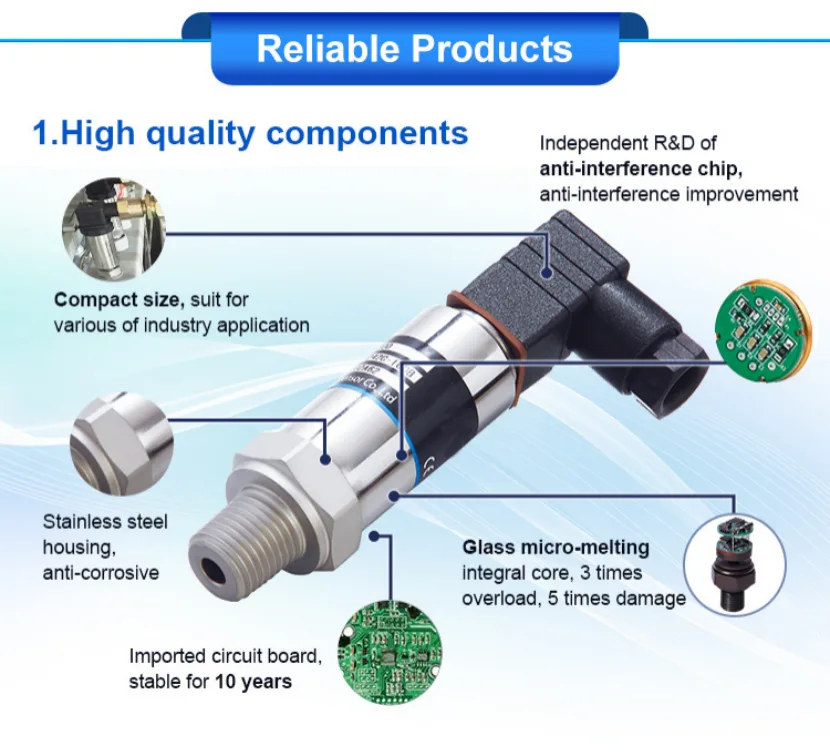

● Advanced glass micro-melting process, elastic overall structure design, no leakage risk
● High-efficiency lightning protection, anti-RF and electromagnetic interference protection

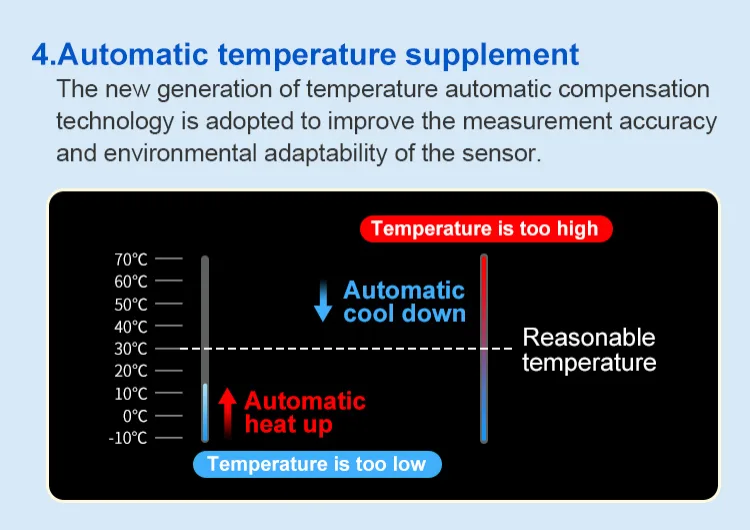

● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability

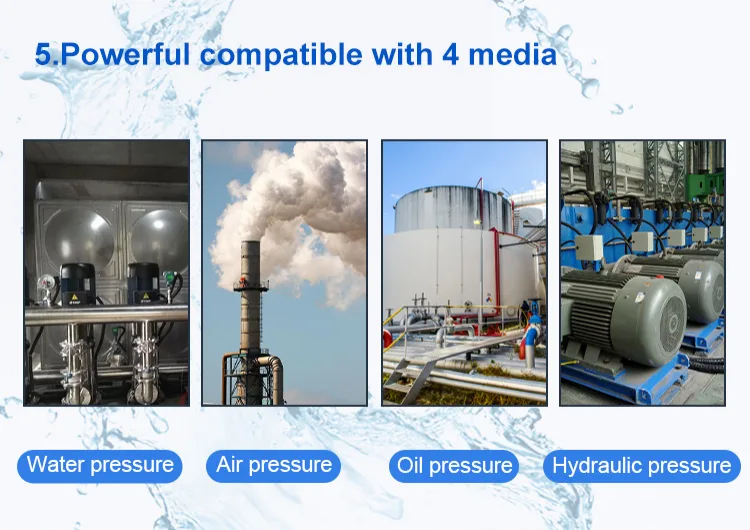

【Application Range】

● Industrial process detection and control
● Hydraulic and pneumatic control systems
● Industrial machinery manufacturing
● Automated detection system
● Pump station and water treatment system

【Technical Parameters】

Product number	AZIC800-211
Type of pressure	Gauge pressure, absolute pressure, sealed pressure
Standard range (bar)	0~6…600
Signal output	4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC
Supply voltage	9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V)
Comprehensive accuracy	±0.3%FS, ±0.5%FS
Long-term stability	±0.1%FS/year
Temperature compensation	-20~+85℃
Operating temperature	-40~+85℃
Storage temperature	-40~+125℃

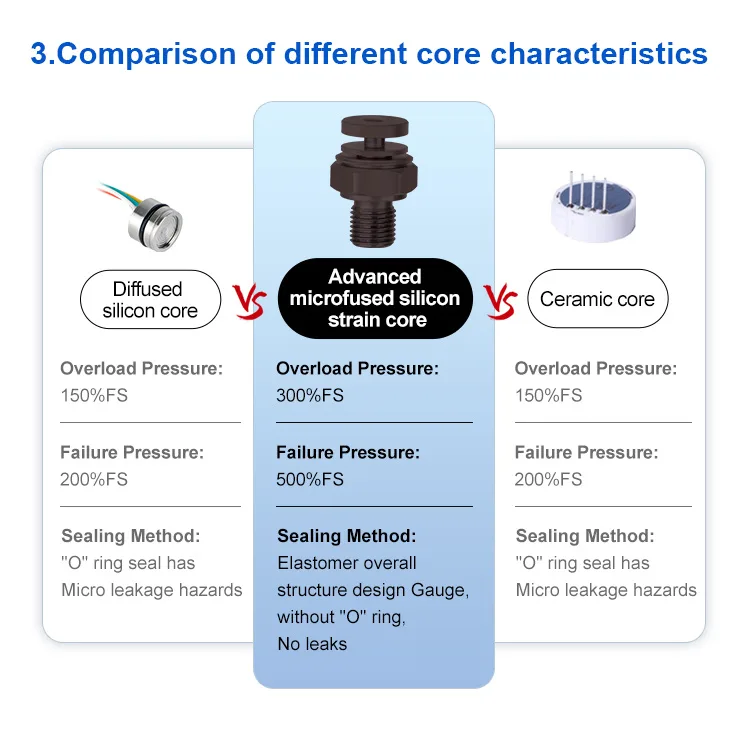

Overload pressure	300%FS
Breaking pressure	500%FS
Impact (11mS)	100g
Protection level	IP65
Material	17-4PH
Electrical connections	Direct lead Packard connector M12 connector Big/Little Hessman
Pressure port	M20X1.5 G1/4 NPT1/4 (others need to be customized)
