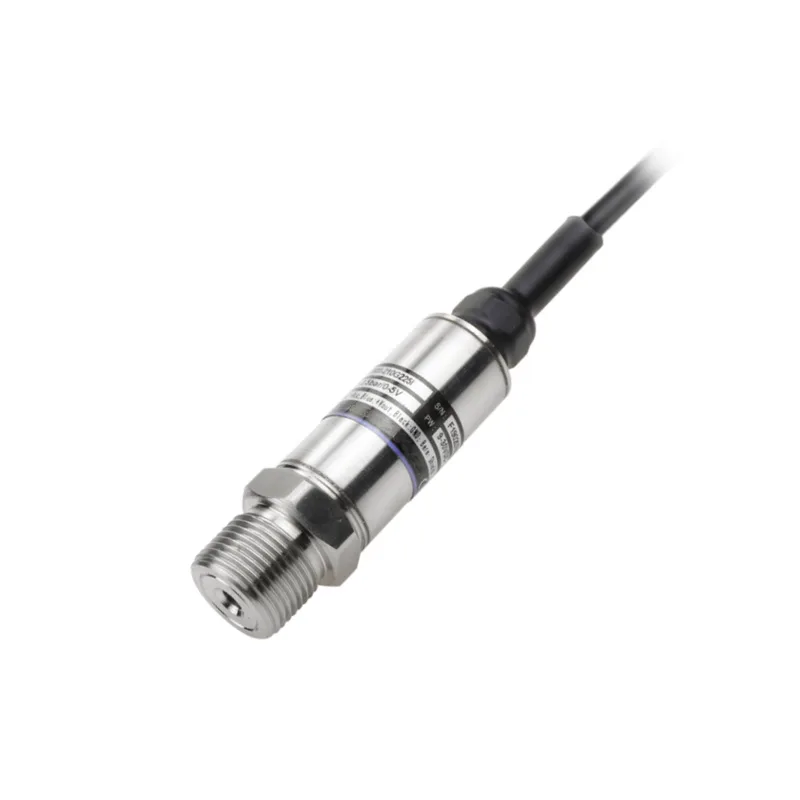

AZIC800-210 Low Pressure Type Pressure Transmitter

【Product Features】

● High-efficiency lightning protection, anti-RF and electromagnetic interference protection
● Stainless steel structure, good medium compatibility
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability

【Application Range】

● Industrial process detection and control
● Hydraulic and pneumatic control systems
● Automated detection system
● Pump station and water treatment system
● Industrial machinery manufacturing

【Technical parameter】

Range	-1~6Bar (gauge pressure)
Output signal	4~20mA，0.5~4.5VDC，0~5VDC，0~10VDC
Precision	±0.25%FS,±0.5%FS
Signal Line Specifications	2Wire（4~20mA），3Wire（0.5~4.5VDC，0~5VDC，0~10VDC）
Supply voltage	9~30VDC（4~20mA，0~5VDC），5VDC（0.5~4.5VDC），15~30VDC（0~10VDC）
Medium temperature	-40℃~+85℃
Storage temperature	-40℃~+125℃
Temperature compensation	-20℃~+85℃
long-term stability	≤±0.1%FS/年
Allow overload	150%FS
Breaking pressure	200%FS
Shock (11mS)	100g
Zero temperature drift	±0.02%FS/℃
Full scale temperature drift	±0.02%FS/℃
Pressure port	M20*1.5, G1/4, NPT1/4 (can be customized)
Electrical connections	M12 connector, direct outlet, Packard connector, large/small Hessmann (customizable)
Degree of protection	IP65
Material	304 stainless steel
