【Product Overview】

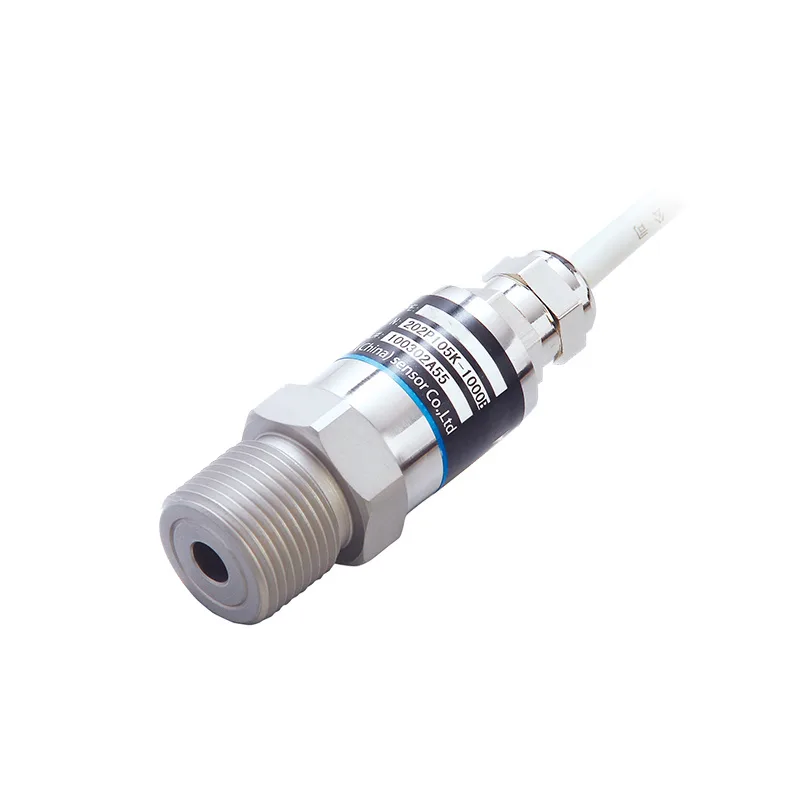

AZIC800-202 industrial general-purpose Glass micro-melting high-pressure pressure sensor adopts glass micro-melting technology, sintered at 500℃, and the elastomer and pressure interface adopt an integrated structure design, no "O" ring, no weld, no leakage risk, and strong corrosion resistance.

【Product Features】

● Glass micro-melting technology, elastomer overall structure design, no leakage risk, maximum pressure resistance up to 10000bar
● Adopt temperature digital compensation function, wide operating temperature range
● High sensitivity, high precision, high frequency response, good long-term stability
● Excellent impact resistance, overload resistance, vibration resistance, corrosion resistance

【Application Range】

● High-pressure industrial process measurement and control
● High-pressure hydraulic and pneumatic control systems
● High-pressure water jet and high-cleaning equipment
● High-pressure sealed containers
● Other high-pressure automation system measurement and control

【Technical parameter】

Measuring range	0~6...600Bar (gauge pressure)
Output signal	10mV/V~15mV/V
Accuracy	±0.3%FS,±0.5%FS
Signal line specifications	4Wire
Supply voltage	3~10VDC (5VDC recommended)
Medium temperature	-40℃~+85℃
Storage temperature	-40℃~+125℃
Long term stability	≤±0.1%FS/year
Allow overload	150%FS
Destroying pressure	300%FS (ultimate pressure 10000bar)
Shock (11mS)	100g
Zero temperature drift	±0.02%FS/℃
Full range temperature drift	±0.02%FS/℃
Pressure port	M20*1.5, G1/2 (can be customized)
Electrical connections	M12 connector, direct outlet, aviation plug (can be customized)
Protection level	IP65
Material	17-4PH (probe) + 304 stainless steel electronic compartment
