【Product Description】

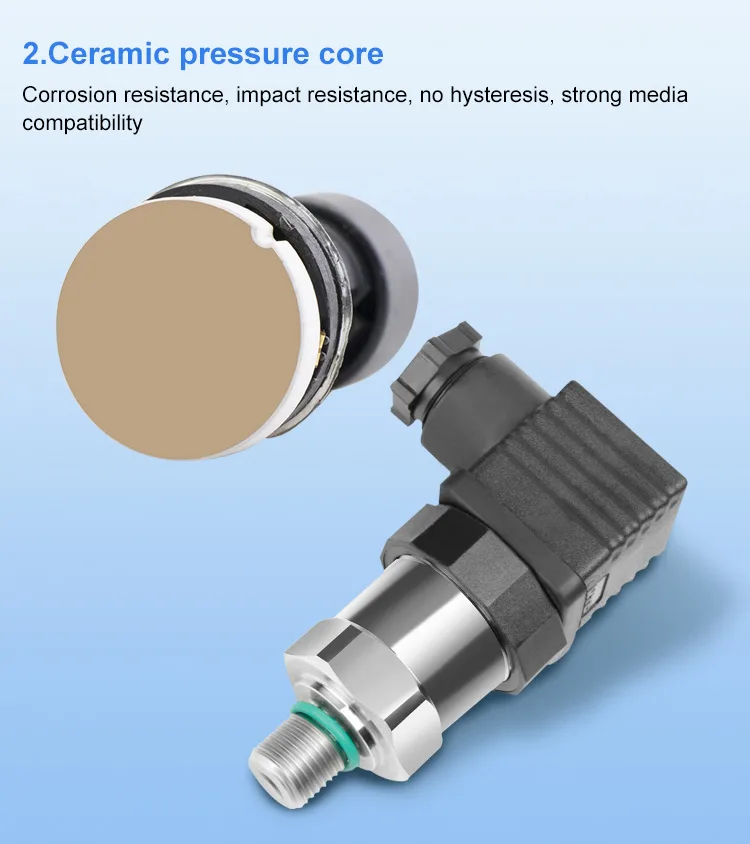

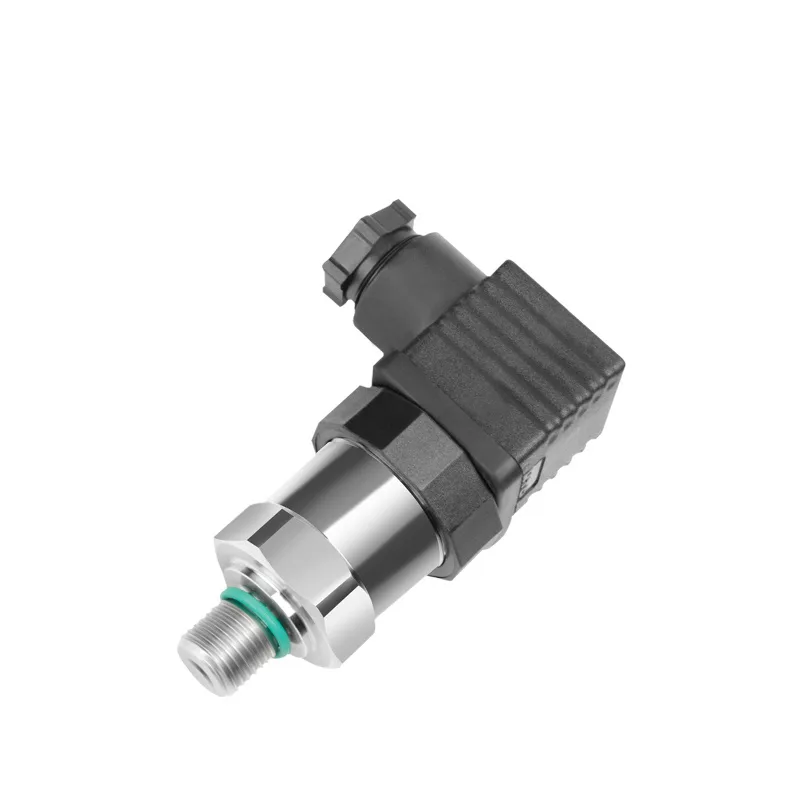

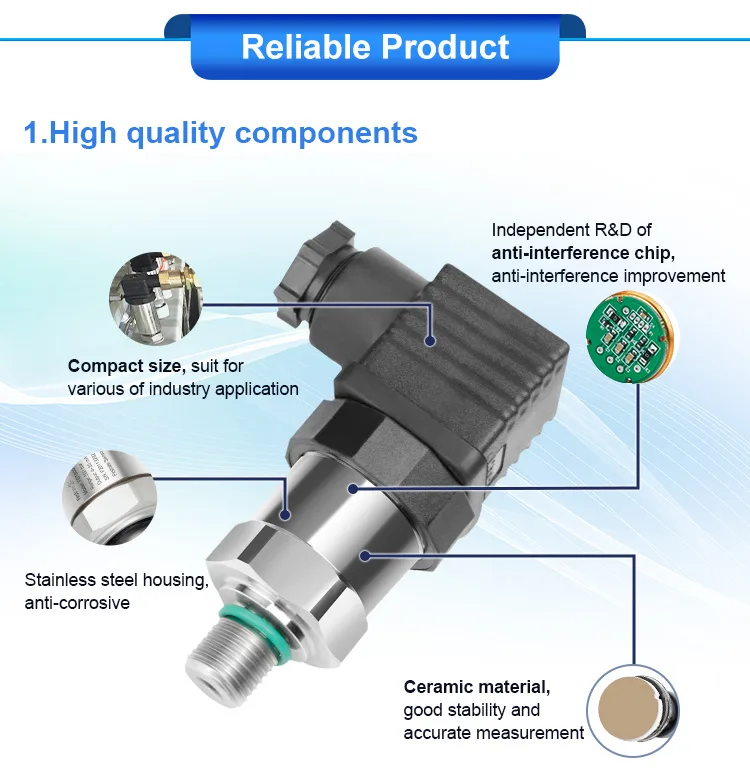

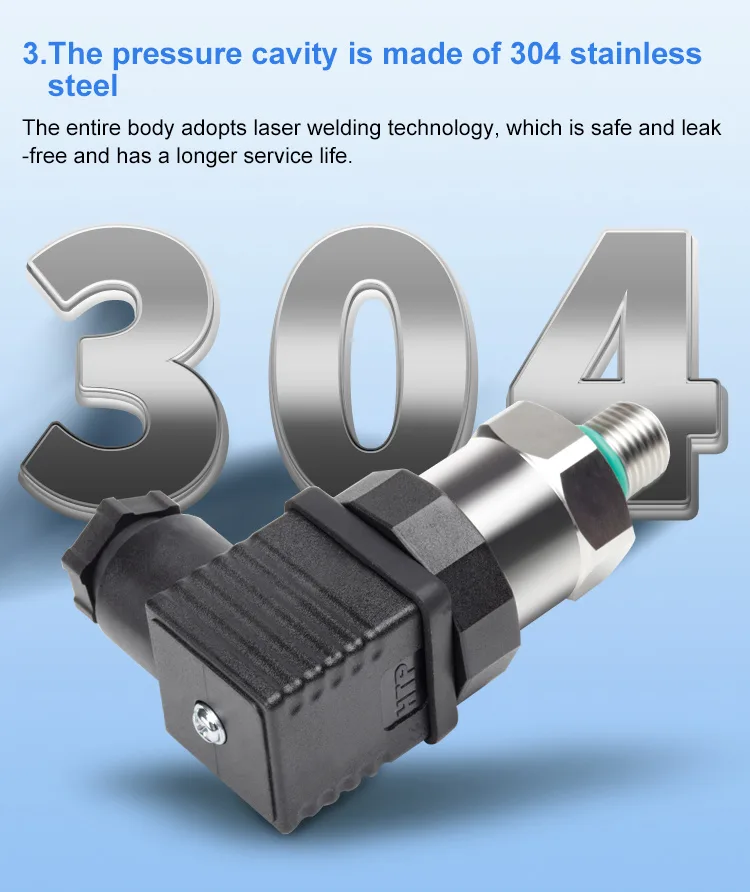

AZIC800-1000 ceramic material Pressure Sensor adopts all stainless steel structure, and the pressure detection sensitive components are made of ceramic materials through special process. The laser calibration process performs zero and span calibration over a wide temperature range, enhancing the long-term stability of the transmitter/sensor in industrial environments. The pressure chamber adopts 304 stainless steel processing technology, and the whole adopts laser welding technology, which is safe and leak-free.

AZIC800-1000 ceramic material Pressure Sensor has a built-in digital circuitwith strong resistance to radio frequency and electromagnetic interference and automatic temperature compensation. It has strong anti-interference ability, wide working range and long-term operation. Good stability and other characteristics.

【Features】

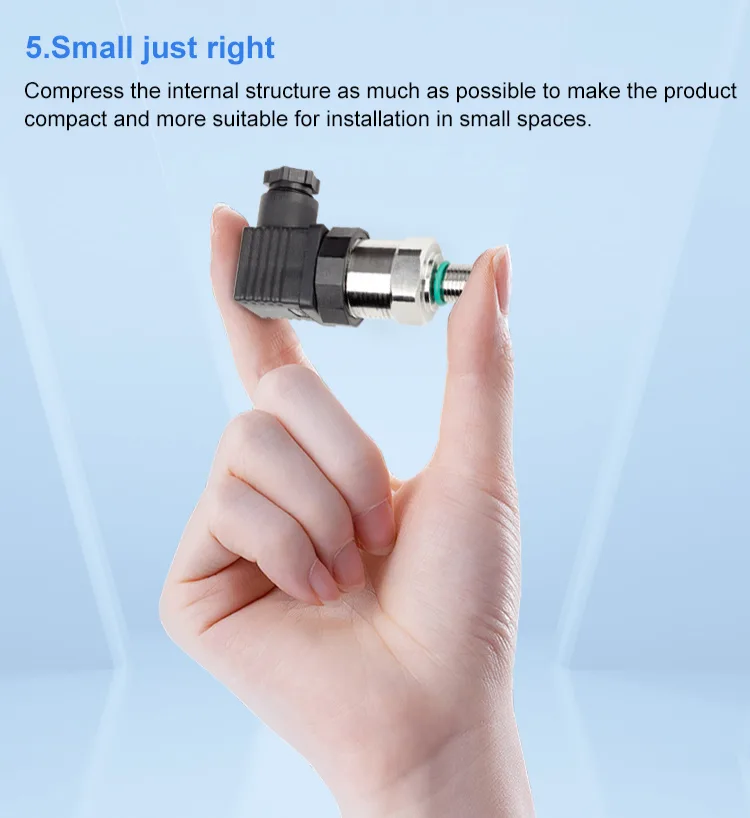

● Easy installation and strong versatility

● Efficient lightning protection, strong anti-radio frequency and electromagnetic interference

protection

● Anti-surge and reverse polarity protection

● High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance

● Advanced temperature digital compensation function

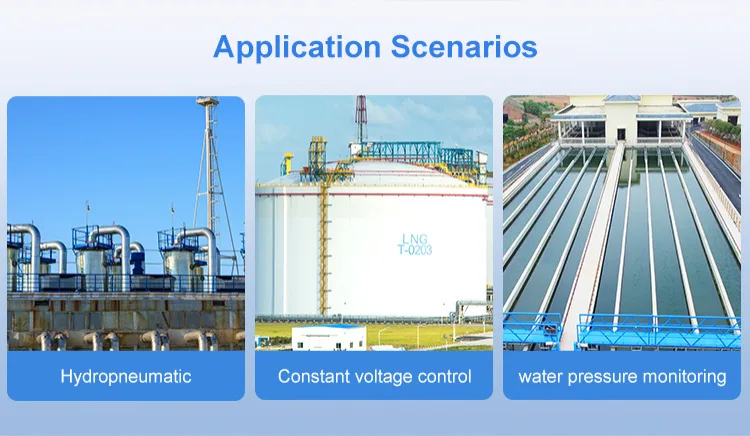

【Applications】

● Industrial process and control ● Automated detection

● Hydraulic and full-motion control ● Water treatment system

● Industrial machinery manufacturing ● Pumping stations

【Technical indicators】

Measuringmediu	water,gas,oil，Hydraulic
Range	5, 7, 10, 15, 20, 25, 32, 50Bar (gauge pressure)
Output signal	4~20mA
Precision	±1%FS
Supply voltage	9~30V DC
Medium temperature	-40℃~+85℃
Storage temperature	-40℃~+125℃

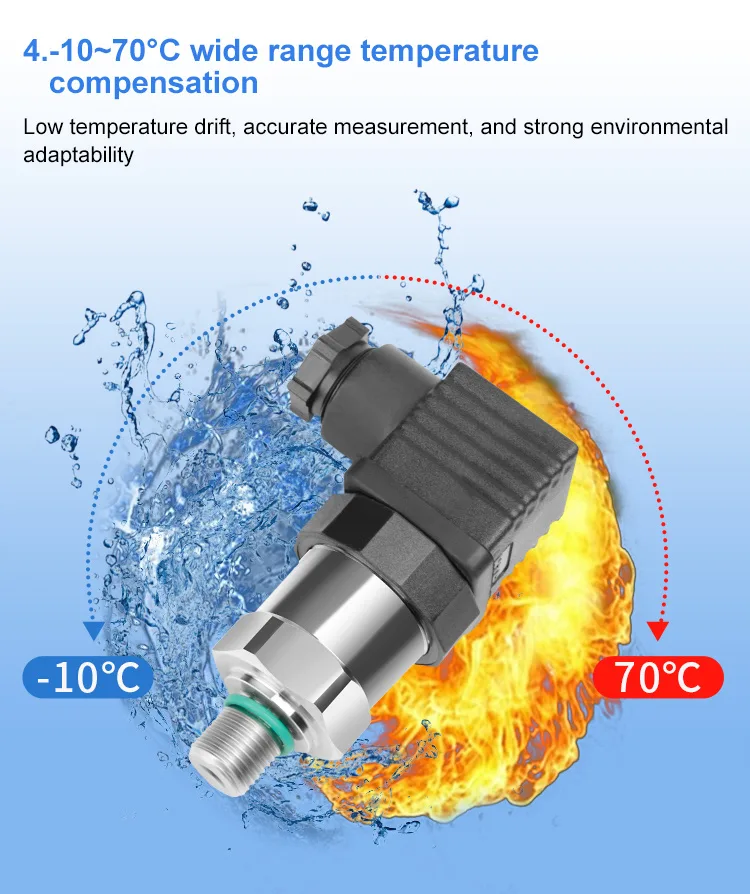

Temperature compensation	-10℃~+70℃
Long-term stability	≤±0.2%FS/year
Allow overload	200%FS
Breaking pressure	300%FS(≤250bar)
Shock (11mS)	100g
Zero temperature drift	±0.02%FS/℃
Full scale temperature drift	±0.02%FS/℃
Pressure port	M20*1.5, G1/4; optional NPT1/4, G1/2
Electrical connections	Large Hessmann connector, others can be customize
