[Product Features]

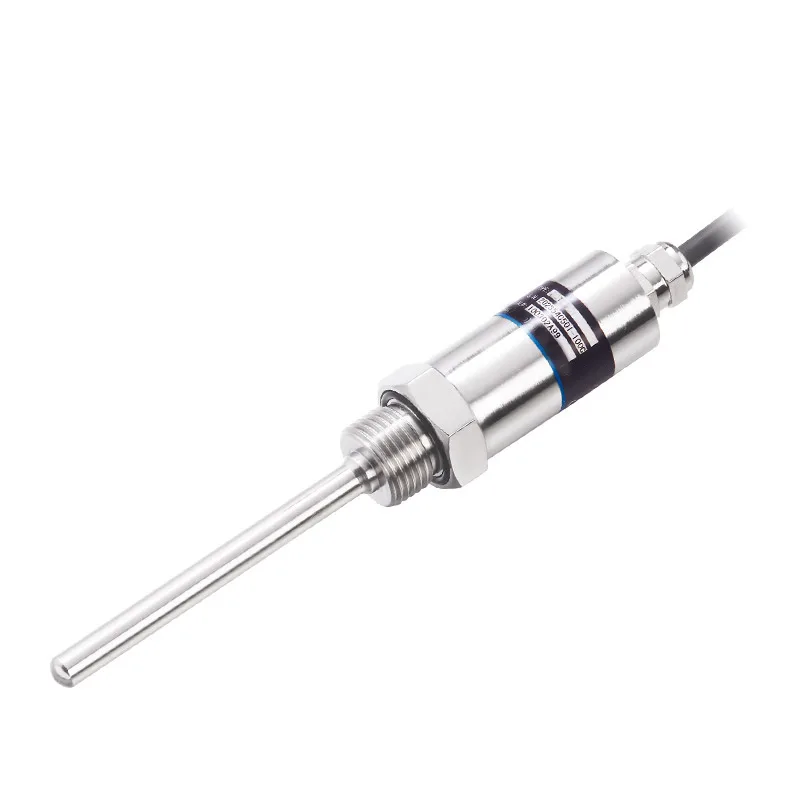

● AZIC600-901 MODBUS Temperature Sensor

● Multiple signals available; MODBUS (RS232/RS485)
● Can measure any medium compatible with 304/316L stainless steel
● Simple installation, multiple temperature ranges available
● Fast response, high accuracy
● Good long-term stability, low energy consumption, small size

[Application Scope]

● Pipeline and ventilation systems
● Cooling and heating systems
● Air conditioning systems
● Engineering machinery, industrial hydraulic equipment

[Technical parameters]

Temperature measurement range (℃)	-50~400℃ Can be customized Note: If the temperature exceeds 120℃, isolation is required
Installation method	Plug-in type, insertion depth (mm) 50, 80, 100, or can be customized according to user requirements
Signal output	RS485, RS232
Protocol	MODBUS RTU, see appendix for details
Supply voltage	9~30VDC, 3~5VDC (low power consumption)
Accuracy	±0.5%FS
Operating temperature	-40~+85℃
Storage temperature	-40~+125℃
Pressure resistant	Typical: 40 bar (Max: 300 bar)
Protection level	IP65
