[Product Features]

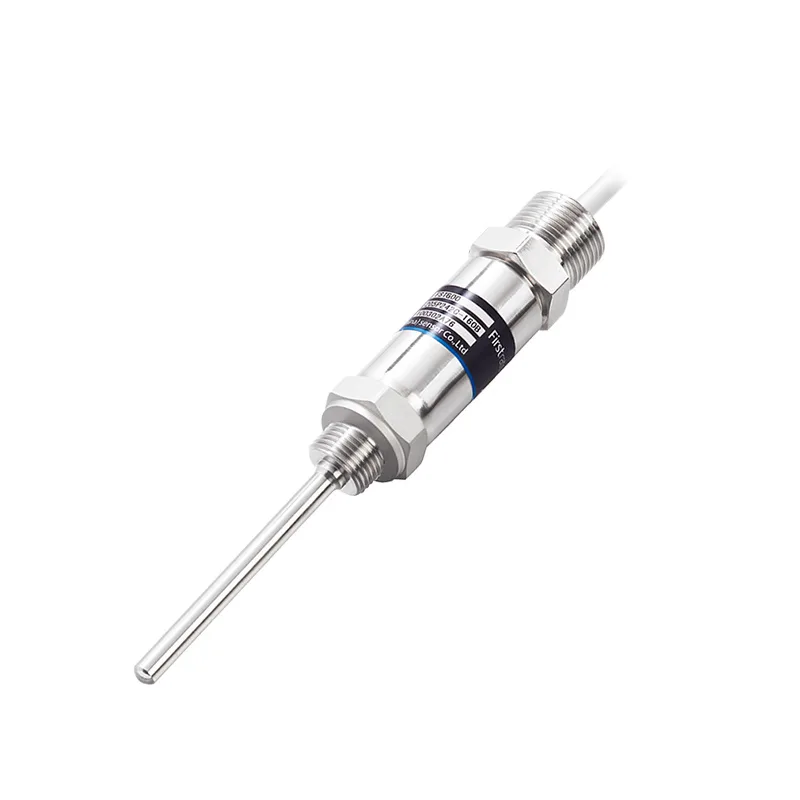

● AZIC600-205 Flameproof Temperature Transmitter

● Flameproof and explosion-proof structure design, Exd II CT6 Gb
● Simple installation, multiple temperature ranges available
● Multiple linear analog signals available
● Fast response speed, high accuracy
● Good long-term stability, low energy consumption, small size
● Can measure any medium compatible with 304/316L stainless steel

[Application Range]

● Explosion-proof industrial process detection and control
● Hydraulic and pneumatic control systems in explosion-proof occasions
● Petrochemical and natural gas control systems
● Other explosion-proof automation system testing and control

[Technical indicators]

Reference temperature: 25°°C (unless otherwise specified)

Measuring range (°C)	-200~400 ℃ (When the temperature exceeds 120 ℃, isolation is required)
Output signal	(4~20)mA	(0~5)VDC、(1~5)VDC	(0~10)VDC	RS232, RS485
Signal line specifications	2Wire	3Wire		4Wire
Supply voltage	9~28VDC		15~28VDC	9~28VDC
Probe size (mm)	Ф6、Ф8
Mounting method	Insertion type, insertion depth (mm): 50 mm, 80 mm, and customized
Connection method	Thread connection, G1/4, M20×1.5, G1/2, and customized
Linearity	±0.5% FS, ±1% FS
Long-term stability (1 year)	±0.1%FS
Response time	T=50 2.3S、T=90 5.4S
Ambient temperature	(-20 ~ +60)°°C (LCD display), (-40 ~ +60)°°C (LED display)
Storage temperature	-40~125°C
Mechanical vibration	Peak acceleration 19.6 m/s2
Media compatibility	Various media compatible with 304 stainless steel
Protection level	IP67 (direct outlet type), IP65 (cable output type)
Explosion-proof level	Ex d IIC T6 Gb
Material	304 Stainless Steel
