[Product Description]

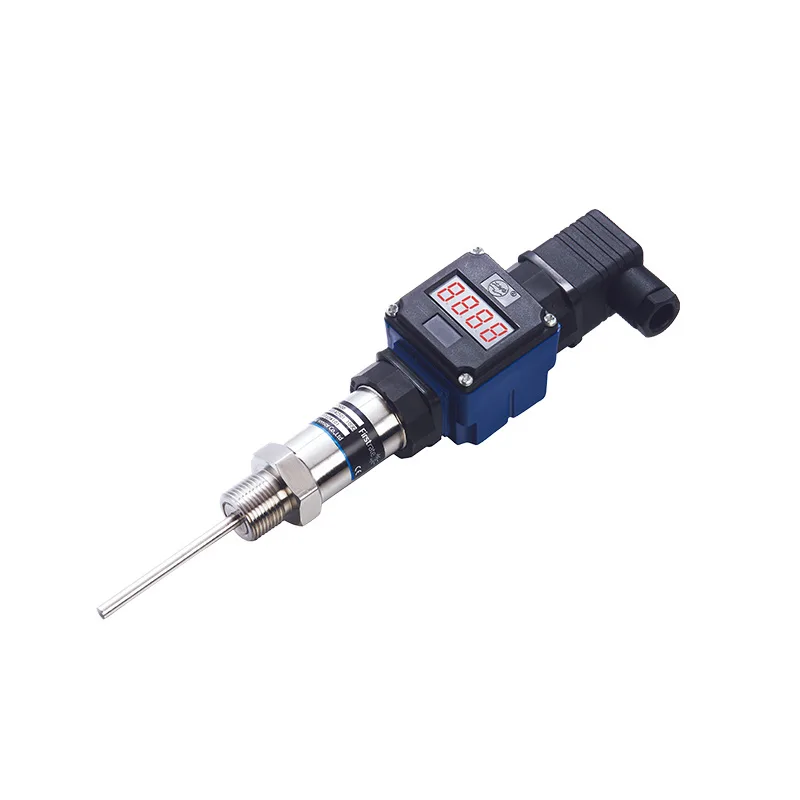

AZIC600-204 2-Wire 4-20mA Digital Display Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor with a transmission conversion function, and adopts a two- or three-wire signal output mode. with a nonlinear correction circuit, can directly measure liquid and gas media in industrial processes, is easy to install, and a variety of temperature measurement ranges are optional

【Features】

● Easy installation, multiple temperature measurement ranges available.

● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection.

● Fast response speed and high accuracy.

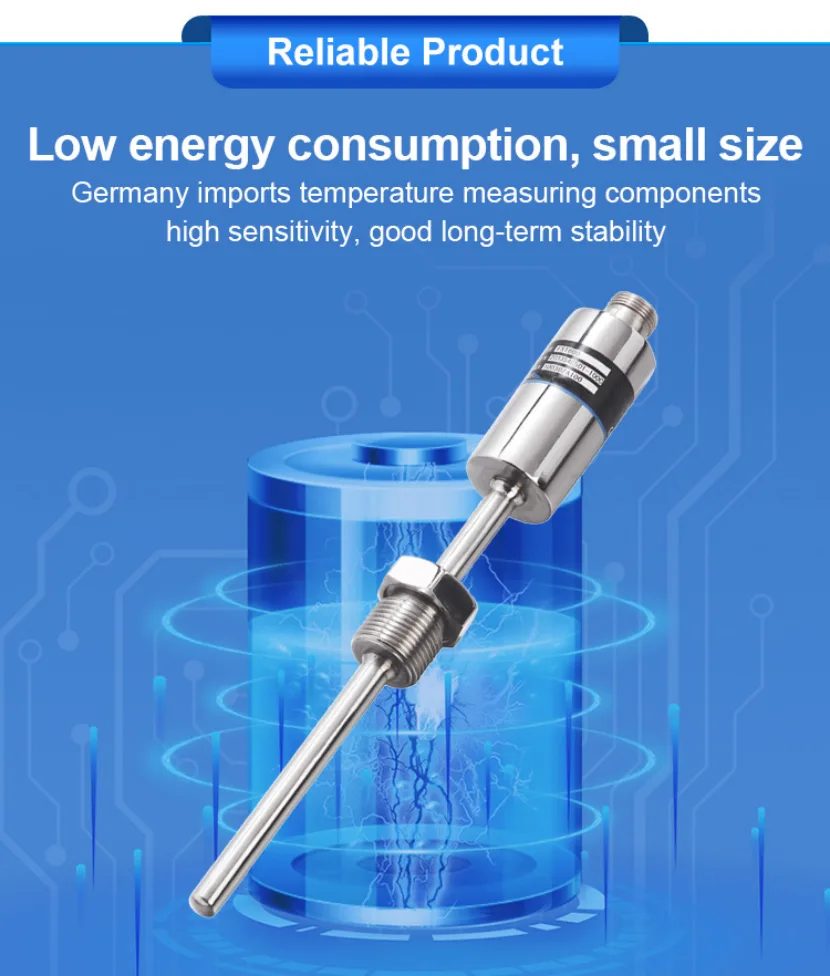

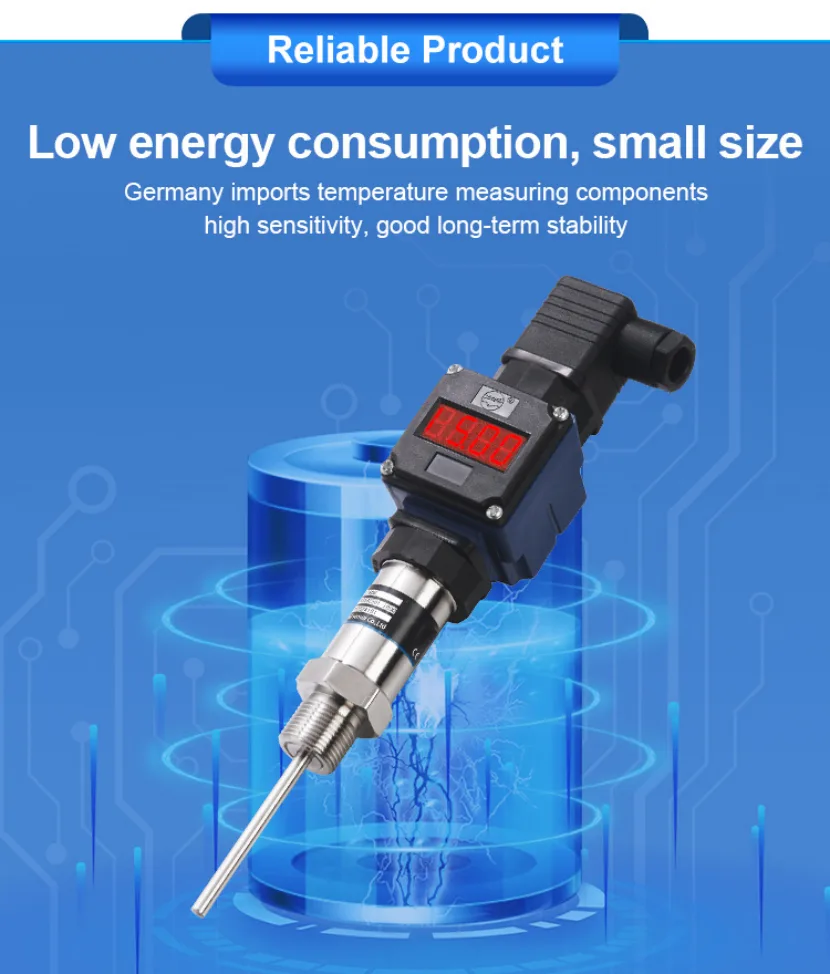

● Good long-term stability, low energy consumption, and small size.

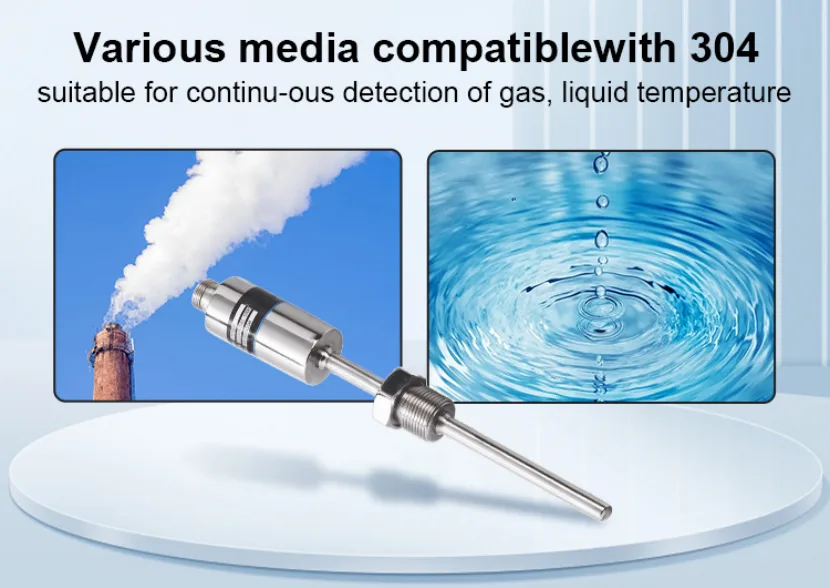

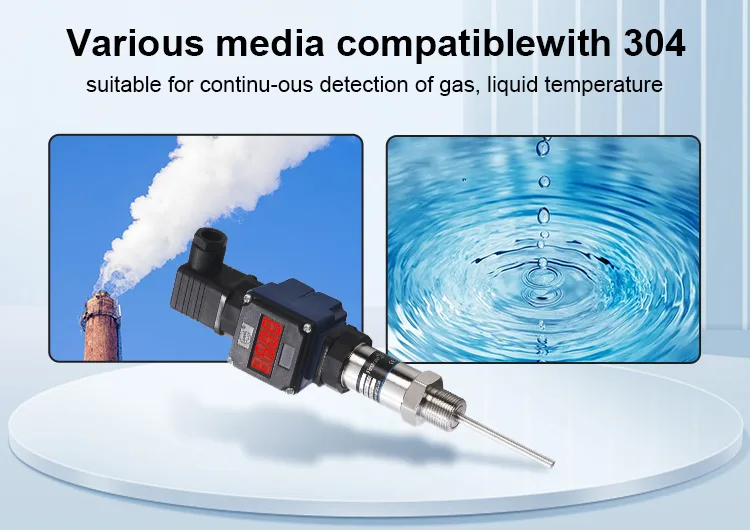

● Dual use for gas and liquid, any medium compatible with 304 stainless steel.

[Technical Parameters]

Range	-50~400℃ Note: When the temperature exceeds 120℃, isolation is required
Output signal	4~20mA, 0~10VDC
Accuracy	±0.5%FS
Signal line specifications	2Wire
Power supply	15~30VDC
Operating temperature	-40℃~+85℃
Storage temperature	-40℃~+125℃
Long-term stability	≤±0.1%FS/year
Temperature measuring element	PT100, PT1000
Response time	T=50℃ 2.3s; T=90℃ 5.4s
Pressure resistance	Typical (40 bar)
Casing material	304 stainless steel
Media compatibility	Various media compatible with 304 stainless steel
Mounting thread	M20x1.5, G1/4, NPT1/4, or customized as required
Electrical connection	Hissman band display
Protection level	IP65
