[Product Overview]

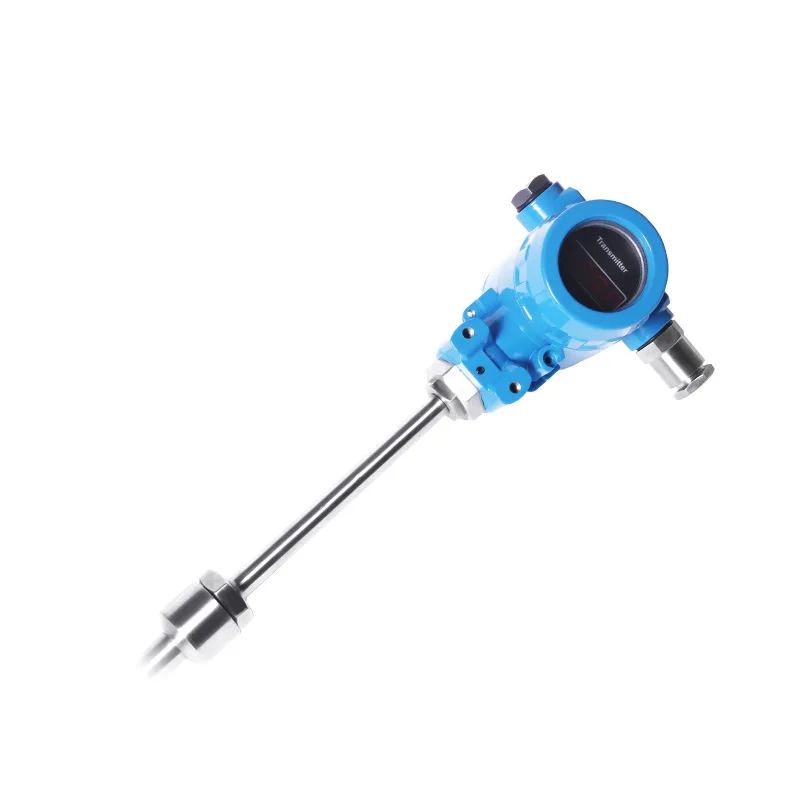

AZIC600-207 intrinsically safe temperature transmitter is composed of a thermal resistor (couple) and a transmitter circuit. It adopts a two-wire signal output mode, with a nonlinear correction circuit. It can directly measure the temperature of liquid, gas, and other media in the range of -200℃~+100℃ in industrial processes, and convert the temperature signal into a current 4~20mA signal output which is linearly related to it.

Low temperature temperature sensors are suitable for low temperature scientific experiments, liquid oxygen, liquid nitrogen, liquid hydrogen, liquid helium, etc., low temperature containers, cooling tanks, low temperature storage tanks, etc. and other occasions requiring low temperature measurement.

[Product Features]

● Low-temperature medium measurement
● 4~20mA current output
● Suitable for gas and liquid measurement, simple installation
● Built-in high-performance intrinsically safe explosion-proof circuit, Ex ia IIC T6 Ga
● Nonlinear correction circuit design

[Application Range]

● Industrial process detection and control
● Hydraulic and pneumatic control systems in explosion-proof occasions
● Chemical products and chemical industry

[Technical indicators]

Output signal	4～20mA
Signal line specifications	2Wire
Intrinsic safety parameters	Ui = 28 VDC, Ii = 93 mA, Pi = 0.65 W, Ci = 0.03 μF, Li = 0
Supply voltage	24 V DC
Overall accuracy	±0.5%FS
Probe withstand voltage	Typical: 40 bar Maximum: 400 bar
Long-term stability (1 year)	0.1% FS/year
Ambient temperature	-20~+60°C
Storage temperature	-40~125°C
Mechanical vibration	Peak acceleration 100 m/s2
Medium compatibility	Various media compatible with 304 stainless steel
Protection level	IP65
Explosion-proof level	Ex ia IIC T6 Ga
