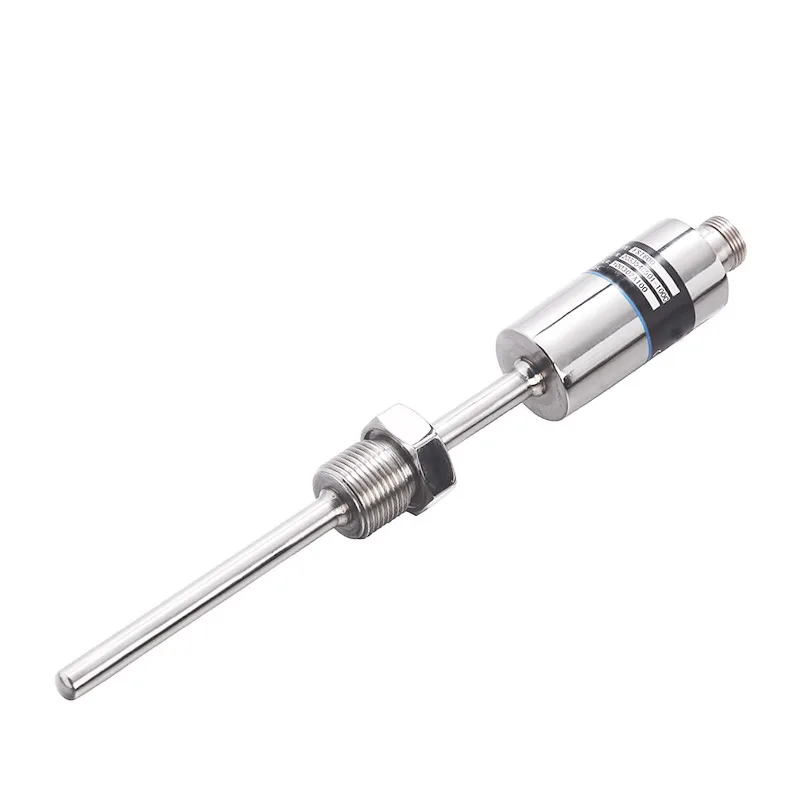

AZIC600-203 Integrated Isolated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell.
[Product Description]
AZIC600-203 Integrated Isolated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor to increase the transmission conversion function. It adopts two-wire and three-wire signal output modes with nonlinear calibration circuits, can directly measure the liquid and gas medium in the industrial process, is easy to install, and a variety of temperature measurement ranges are optional.
[Features]
● Easy installation, multiple temperature measurement ranges available.
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection.
● Fast response speed and high accuracy.
● Good long-term stability, low energy consumption, and small size.
● Dual use for gas and liquid, any medium compatible with 304 stainless steel.
【Applications】
● Pipe and ventilation systems
● Cooling and heating systems
● Automation system control
● Hydraulic and pneumatic systems
● Air-conditioning systems
● Water supply and water heating systems
|
Signal output |
4~20mA, 0~5VDC, 0~10VDC |
|
Signal Line Specifications |
2-Wire (4~20mA), 3-Wire (0~5VDC, 0~10VDC) |
|
Supply voltage |
9~30VDC（4~20mA、0~5VDC），15~30VDC（0~10VDC） |
|
Accuracy |
±0.5%FS |
|
Storage temperature |
-40~+125℃ |
|
Pressure resistance |
Typical (40 bar) |
|
Long-term stability (1 year) |
≤±0.1% FS/year |
|
Shell material |
304 stainless steel |
|
Temperature measuring element |
PT100, PT1000 |
|
Protection class |
IP65 |
|
Response time |
T=50℃ 2.3s |
|
Range |
-50~400℃ |
|
Media Compatibility |
Various media compatible with 304 stainless steel |
|
Mounting thread |
M20x1.5, G1/4, NPT1/4, or customized upon request |
|
Electrical connections |
Direct outlet, aviation plug, Hessman, or customized as required |
