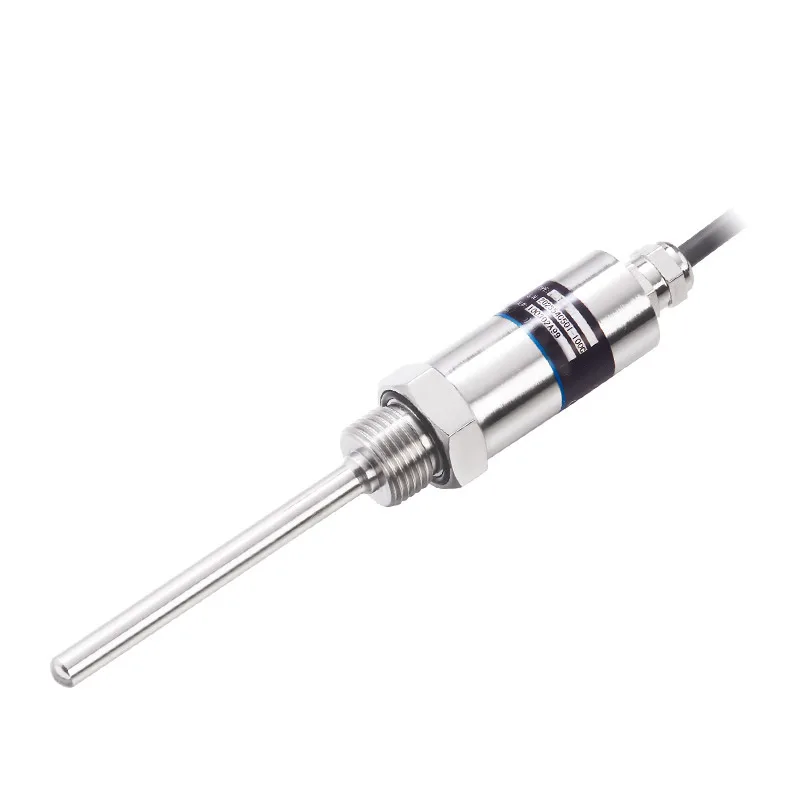

AZIC600-202 Integrated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell.
[Product Description]
AZIC600-202 Integrated Temperature Transmitter is composed of a thermal resistance (couple) and a protective metal shell. The temperature transmitter is based on the sensor with a transmission conversion function. It adopts two-wire and three-wire signal output modes with nonlinear correction. The circuit can directly measure the liquid and gas medium in the industrial process. The installation is simple, and a variety of temperature measurement ranges are optional.
[Technical Parameters]
|
Testing range |
-50~120°°C Note: If the temperature exceeds 120°°C, isolation is required |
|
Signal Output |
4~20 mA 0~5 VDC 0~10 VDC |
|
Precision |
±0.5%FS |
|
Signal Line Specification |
2-Wire (4~20mA), 3-Wire (0~5VDC, 0~10VDC) |
|
Supply Voltage |
9~30VDC (4~20mA, 0~5VDC), 15~30VDC (0~10VDC) |
|
Operating temperature |
-40 ~ +85 °C |
|
Storage Temperature |
-40 ~ +125 °C |
|
Long-term stability |
≤ ±0.1% FS/year |
|

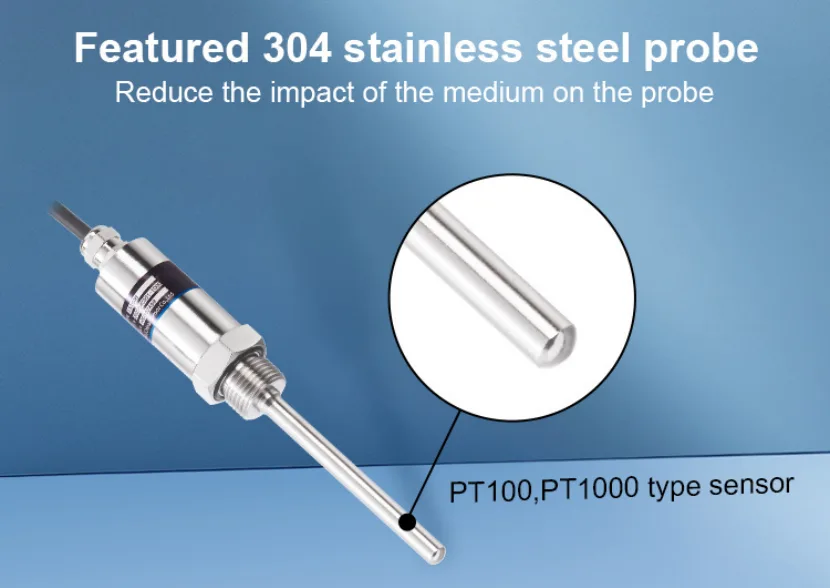

Temperature measuring element |
PT100, PT1000 |
|
Response Time |
T=50°°C 2.3s; T=90 °C 5.4s |
|
Withstand voltage |
Typical (40 bar) |
|
Shell material |
304L stainless steel |
|
Media compatibility |
Various media compatible with 304 stainless steel |
|
Mounting thread |
M20x1.5, G1/4, NPT1/4, or customized |
|

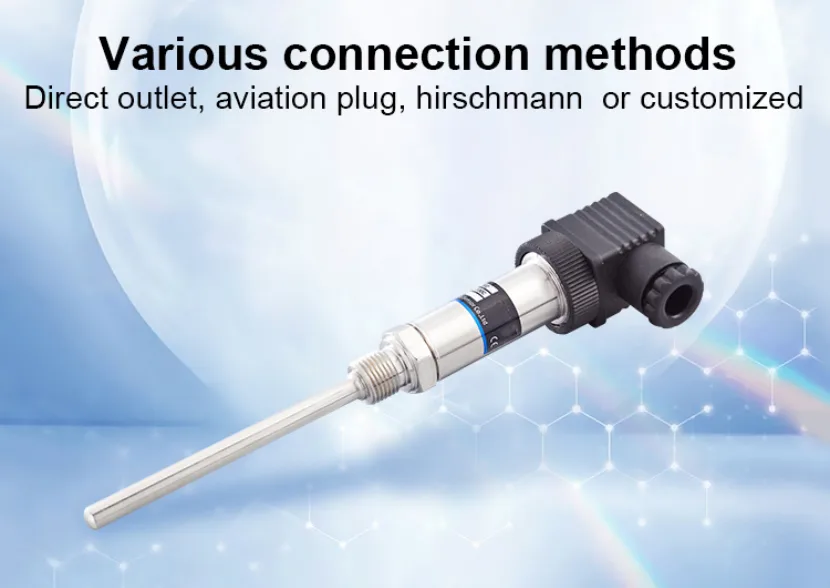

Electrical connections |
Direct outlet, aviation plug, Hirschmann, or customized |
|
Environmental Protection |
IP65 |
【Features】
● Simple installation, multiple temperature measurement ranges are optional.

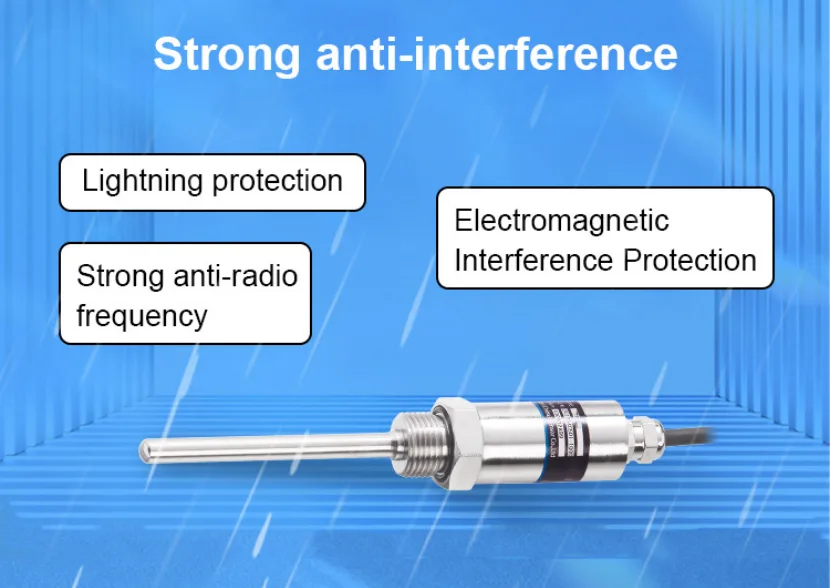

● Efficient lightning protection, strong anti-radio frequency and electromagnetic interference protection.
● Fast response and high accuracy.
● Good long-term stability, low energy consumption, and small size.
● Gas-liquid dual-purpose, any medium compatible with 304 stainless steel.
