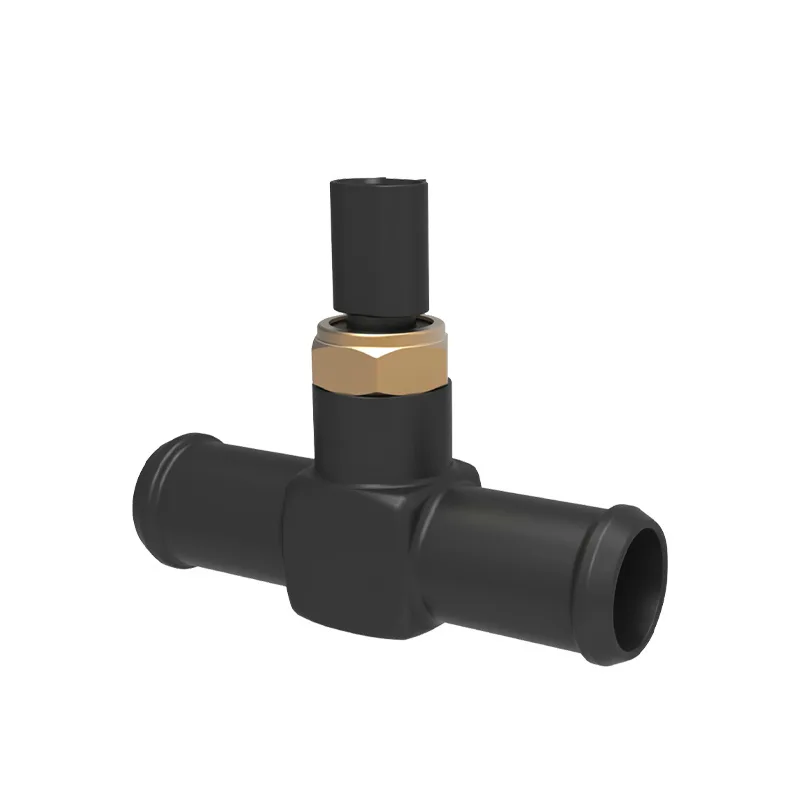

AZIC600-105 is a water temperature sensor suitable for new energy vehicles (pure electric, hybrid) and traditional vehicles.
[Product overview]
AZIC600-105 is a water temperature sensor suitable for new energy vehicles (pure electric, hybrid) and traditional vehicles. It is used to measure water, ethylene glycol, coolant, antifreeze, and other media. The through-hole is made of high-strength plastic material, which avoids the brittleness of traditional plastics and the heat loss caused by the through-hole made of metal, which causes inaccurate or distorted temperature detection. The sensing element uses high-precision electronic components, and the temperature detection sensitivity and accuracy are high.
[Features]
The protection level meets IP67 requirements;
Easy installation, stable operation, and reliable lifespan.
[Technical indicators]
|
Type |
NTC |
|
Output signal |
Resistance |
|
Electrical interface |
AMP (968405) |
|
R25 value |
2200Ω |
|
B value (25℃) |
3850 |
|
Accuracy (R25) |
±1% |
|
Ambient temperature |
-40~120℃ |
|
Circulating medium |
Water, ethylene glycol, coolant, antifreeze, etc. |
|
Protection level |
IP67 |
|
Allowable pressure |
Maximum 0.6 MPa |
