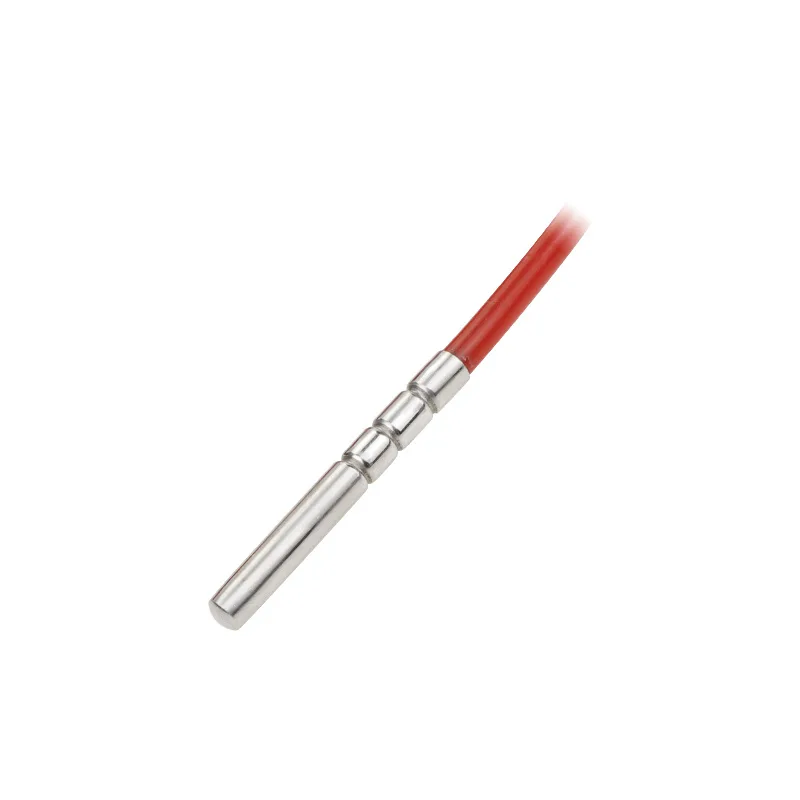

AZIC600-103 Platinum Resistance Temperature Sensor is with Fast response speed, low energy consumption, small size.
[Product Features]
● AZIC600-103 Platinum Resistance Temperature Sensor
● Easy installation, multiple temperature measurement ranges available
● Gas and liquid dual-use, any medium compatible with 304/316L
● Fast response speed, low energy consumption, small size
[Application Range]
● Applicable to hydraulic and pneumatic systems, air conditioning systems, automated temperature measurement and control systems
[Technical parameters]
|
Range |
-50~250℃ |
|
output signal |
Resistance signal |
|
precision |
A grade, B grade, 1/3B grade |
|
Signal Line Specifications |
2-wire, 3-wire |
|
Working current |
PT100：0.3~1mA
PT1000：0.1~0.3mA
(Self-heating effects need to be considered) |
|
Operating temperature |
-40℃~+125℃ |
|
Storage temperature |
-40℃~+125℃ |
|
Long-term stability |
≤±0.1%FS/year |
|
Temperature measuring element |
PT100, PT1000 |
|
Response time |
T=50℃ 2.3s；T=90℃ 5.4s |
|
withstand voltage |
typical (40 bar) |
|
shell material |
304 stainless steel |
|
media compatibility |
Various media compatible with 304 stainless steel |
|
Electrical connections |
direct line |
|
Degree of protection |
IP65 |
