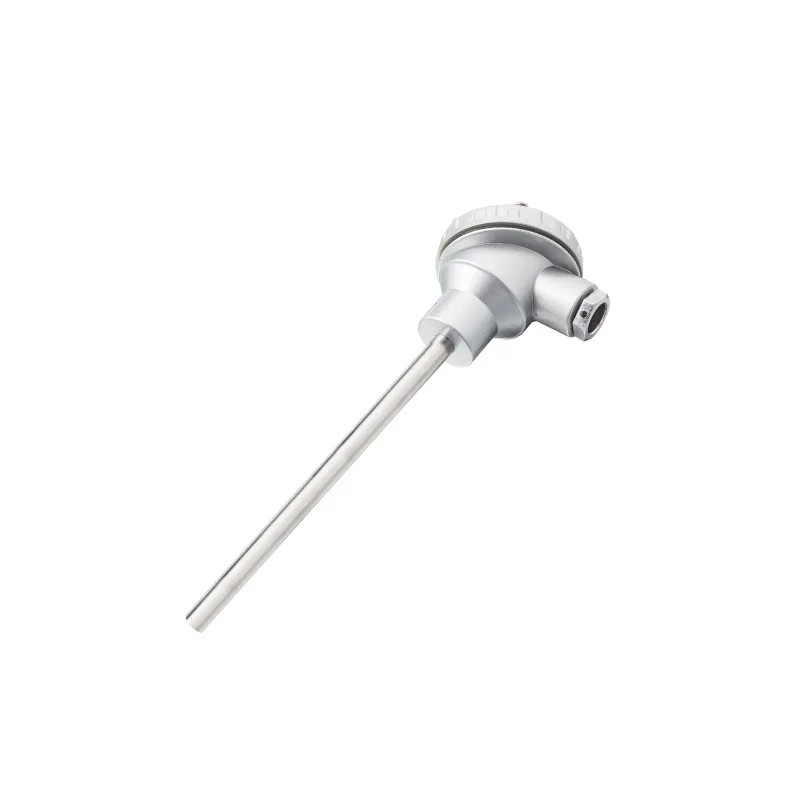

AZIC600-102 armored thermocouple temperature sensor has the characteristics of a large measurement temperature range, fast response speed, small dynamic error, high mechanical strength, and good pressure resistance. Armored thermocouples can measure the surface or internal temperature of gases, liquids, vapors, and solids, and can be used with digital instruments, recording and regulating instruments, PLCs, data collectors, or computers.

[Product Features]

● Short thermal response time, reducing dynamic errors
● Can be bent and installed
● Wide measurement range
● High mechanical strength and good pressure resistance

[Application Range]

● Widely used in metallurgy, petroleum, chemical industry, electricity, light industry, textiles, food, national defense, scientific research, and other departments.

[Technical parameters]

Range	0~1600℃
Output signal	millivolt signal
Precision	Class I, Class II, Class III
Signal line specifications	2Wire
Temperature measuring element	B, E, J, K, N, R, S, T
Installation method	Plug-in NiCr-NiSi thermocouple
Conventional insulation resistance	Tested at an ambient temperature of 20±15°°C, a relative humidity of not more than 80%, and a test voltage of 500±50 V (DC), the insulation resistance between the electrode and the outer sleeve is >1000 MΩ
Order information	Indicate the operating temperature range of the thermocouple, the number of thermocouple points, the material, diameter, and length of the thermocouple protection tube; if there are fasteners and flange devices, relevant dimensions must be provided

Range	0~1600℃
Output signal	millivolt signal
Precision	Class I, Class II, Class III
Signal line specifications	2Wire
Temperature measuring element	B, E, J, K, N, R, S, T
Installation method	Plug-in NiCr-NiSi thermocouple
Conventional insulation resistance	Tested at an ambient temperature of 20±15°°C, a relative humidity of not more than 80%, and a test voltage of 500±50 V (DC), the insulation resistance between the electrode and the outer sleeve is >1000 MΩ
Order information	Indicate the operating temperature range of the thermocouple, the number of thermocouple points, the material, diameter, and length of the thermocouple protection tube; if there are fasteners and flange devices, relevant dimensions must be provided

Type	Class I precision	Class II precision	Class III precision
T type (copper-constantan)
Temperature range	-40℃～+125℃	-40℃～+133℃	-67℃～+40℃
Tolerance value (±)	0.5℃	1℃	1℃
Temperature range	125℃～350℃	133℃～350℃	-200℃～-67℃
Tolerance value (±)	0.004·\|t\|	0.0075·\|t\|	0.015·\|t\|
Type E (nickel-chromium-constantan)
Temperature range	-40℃～+375℃	-40℃～+333℃	-167℃～+40℃
Tolerance value (±)	1.5℃	2.5℃	2.5℃
temperature range	375℃～800℃	333℃～900℃	-200℃～-167℃
Tolerance value (±)	0.004·\|t\|	0.0075·\|t\|	0.015·\|t\|
J type (iron-constantan)
Temperature range	-40℃～+375℃	-40℃～+333℃	----
Tolerance value (±)	1.5℃	2.5℃	----
Temperature range	375℃～750℃	333℃～750℃	----
Tolerance value (±)	0.004·\|t\|	0.0075·\|t\|	----
Type K (nickel-chromium-nickel silicon)
Temperature range	-40℃～+375℃	-40℃～+333℃	-167℃～+40℃
Tolerance value (±)	1.5℃	2.5℃	2.5℃
Temperature range	375℃～1000℃	333℃～1200℃	-200℃～-167℃
Tolerance value (±)	0.004·\|t\|	0.0075·\|t\|	0.015·\|t\|
Type R (platinum rhodium 13-platinum)
Type S (platinum rhodium 10-platinum)	0℃～1100℃	0℃～600℃	----
Temperature range	1℃	1.5℃	----
Tolerance value (±)	1100℃～1600℃	600℃～1600℃	----
Temperature range	〔1+0.003（t-1100）〕℃	0.0025·\|t\|	----
Tolerance value (±)
Type B (platinum rhodium 30-platinum rhodium 6)	----	----	600℃～800℃
Temperature range	----	----	4℃
Tolerance value (±)	----	600℃～1700℃	800℃～1700℃
Temperature range	----	0.0025·\|t\|	0.005·\|t\|
