[Product Features]

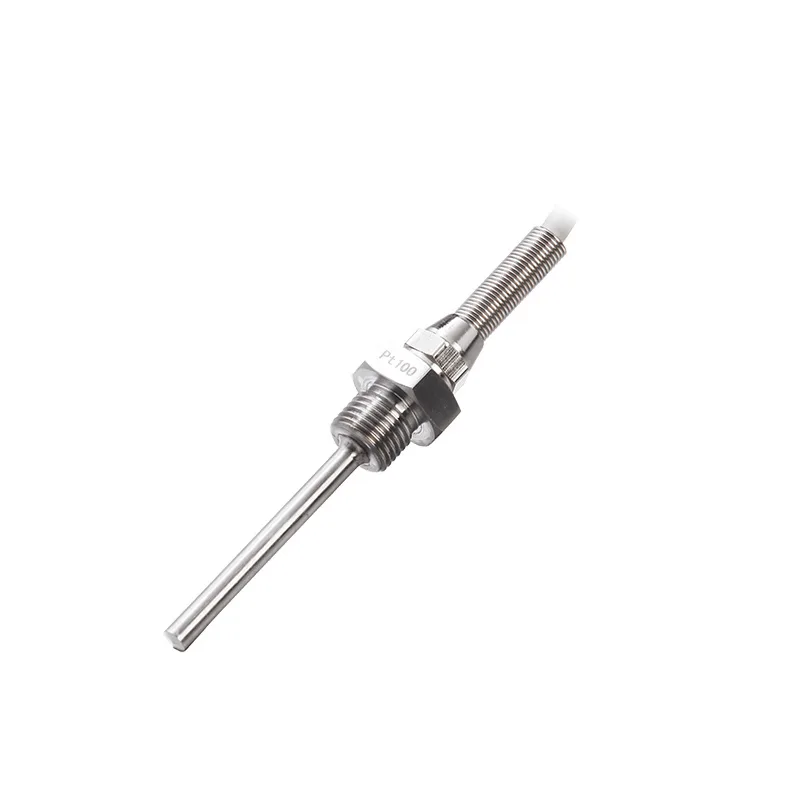

● AZIC600-101 Resistance signal Temperature PT100 PT1000 Sensor

● Easy installation, multiple temperature ranges available
● Gas and liquid dual-use, any medium compatible with 304/316L
● Fast response, high accuracy
● Good long-term stability, low energy consumption, small size

[Application Range]

● Pipeline and ventilation systems
● Hydraulic and pneumatic systems
● Cooling and heating systems
● Water supply and hot water systems
● Air conditioning systems
● Temperature measurement and control of automation systems

[Technical parameters]

Range	-50~600°°C Note: If the temperature exceeds 120°°C, isolation is required
Output signal	Resistance signal
Precision	A grade, B grade, 1/3B grade
Limit working current	<10mA
Signal Line Specifications	2-Wire, 3-Wire
Operating temperature	-40℃~+125℃
Storage temperature	-40℃~+125℃
Long-term stability	≤±0.1%FS/year
Temperature measuring element	PT100, PT1000
Response time	T=50℃ 2.3s；T=90℃ 5.4s
Withstand voltage	Typical (40 bar)
Shell material	304 stainless steel
Media compatibility	Various media compatible with 304 stainless steel
Mounting thread	G1/4 or customized
Electrical connections	Direct outlet, aviation plug, Hessmann, or customized
Degree of protection	IP65
