[Product Features]

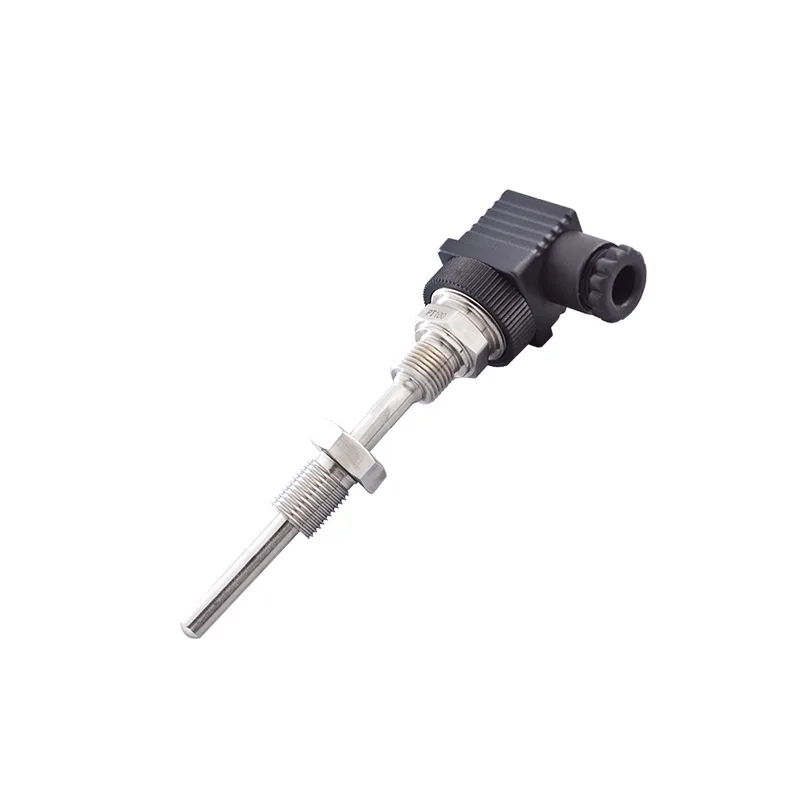

● AZIC600-100 Isolated Temperature Sensor PT100 Sensor

● Easy installation, multiple temperature ranges available
● Gas and liquid dual-use, any medium compatible with 304/316L
● Fast response, high accuracy
● Good long-term stability, low energy consumption, small size

[Application Range]

● Pipeline and ventilation systems
● Hydraulic and pneumatic systems
● Cooling and heating systems
● Water supply and hot water systems
● Air conditioning systems
● Temperature measurement and control of automation systems

[Technical parameters]

Measuring range	-50~600℃
Output signal	Resistance signal
Accuracy	Class A, Class B, Class 1/3B
Limit operating current	<10mA
Signal line specifications	2-wire, 3-wire
Operating temperature	-40℃~+125℃
Storage temperature	-40℃~+125℃
Long-term stability	≤±0.1%FS/year
Temperature measuring element	PT100, PT1000
Response time	T=50℃ 2.3s; T=90℃ 5.4s
Pressure resistant	Typical (40 bar)
Shell material	304 stainless steel
Media compatibility	Various media compatible with 304 stainless steel
Mounting thread	G1/4 or customized as required
Electrical connections	Direct outlet, aviation plug, Hirschmann, or customized as required
Protection level	IP65
