AZIC100-1003 (I2C) low-power pressure transmitter is based on MEMS technology and adopts advanced glass micro-melting technology.
【Product Description】

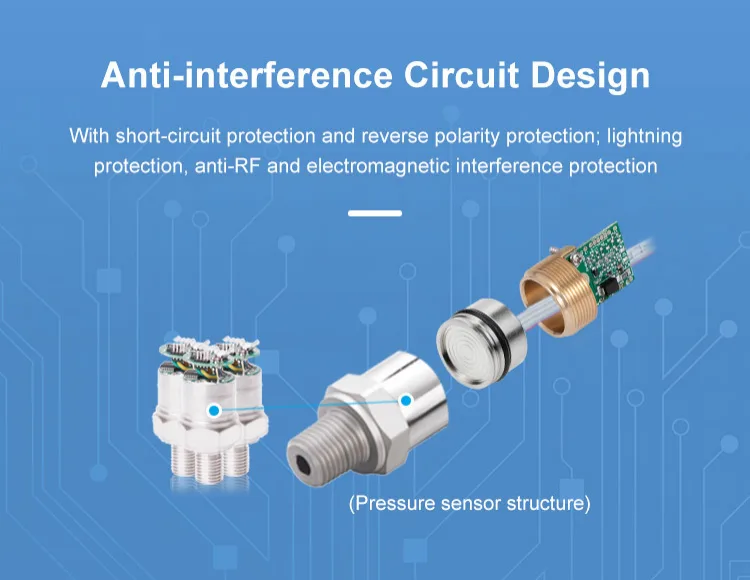

AZIC100-1003 (I2C) low-power pressure transmitter is based on MEMS technology and adopts advanced glass micro-melting technology, which avoids the influence of temperature, humidity, mechanical fatigue and media on the product, and strengthens the long-term stability of the sensor in the industrial environment.
【Features】
● With low voltage, low power consumption, I2C communication
● Excellent resistance to corrosion, wear and vibration
● Wide temperature operating range, compact size
● High product precision and good long-term stability
【Scope of application】
● Industrial Process Detection and Control
● Pumping Stations and Water Treatment Systems
● Automated inspection system
● Chemical, Hydraulic and Pneumatic Control Systems
【Technical Parameters】
|
Pressure type |
Gauge pressure, absolute pressure |
|
Long-term stability (1 year) |
≤±0.15%FS |
|
Pressure range (bar) |
0~0.4...70 |
|
Overload pressure |
200%FS |
|
Signal output |
I²C Digital signal |
|
Destruction pressure |
300%FS |
|
Supply voltage |
3~5V DC |
|
Response frequency |
2kHz |
|
Current consumption |
2.7mA |
|
Load Resistance |
10KΩ |
|
Accuracy |
±0.3 %FS ±0.5 %FS |
|
Protection class |
Ip65 |
|
Temperature compensation |
-10~+70℃ |
|

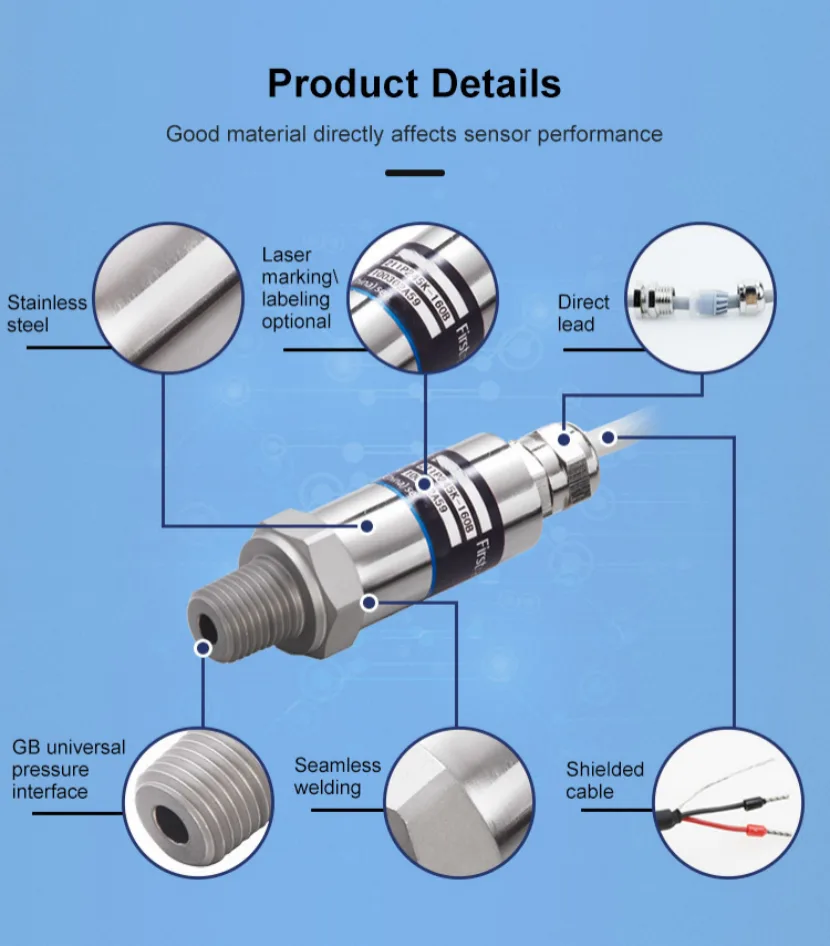

Liquid contact material |
316L stainless steel |
|
Operating temperature |
-40~+125℃ |
|
Output type |
3FFF (10%~90% or 0x666~0x399A) |
|
Electrical connections |
Direct lead, Hessman, watertight connector (IP67) |
|
Pressure port |
M20X1.5, G1/4, NPT1/4, (others can be customized on request) |
