【Product Description】

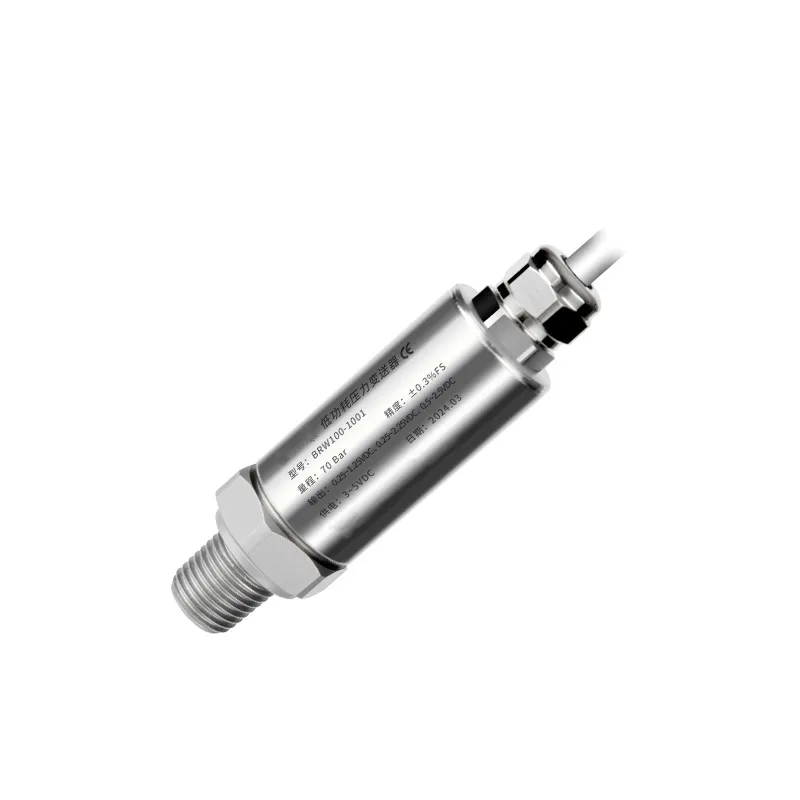

AZIC100-1002 Low Power Pressure sensor are based on MEMS technology, the use of advanced glass micro-solution process, to avoid the temperature, humidity, mechanical fatigue and media on the product to strengthen the long-term stability of the sensor in the industrial environment. The pressure chamber is made of A17-4PH stainless steel with no weld or "O" ring, no leakage. Is a low-power digital pressure sensor, imported high-quality pressure-sensing core, combined with microprocessor technology and sensor digital conversion technology design, the overall use of laser welding process, safety and no leakage, advanced temperature digital compensation, a wide range of operating temperatures. Ultra-low power consumption design, easy to use, good stability. Suitable for fire water, water, heating and other Internet of Things and other low-power battery-powered occasions.

【Features】

● With low voltage, low power consumption, easy installation and use

● Excellent resistance to corrosion, wear and vibration

● Wide temperature operating range, compact size

● High product precision and good long-term stability

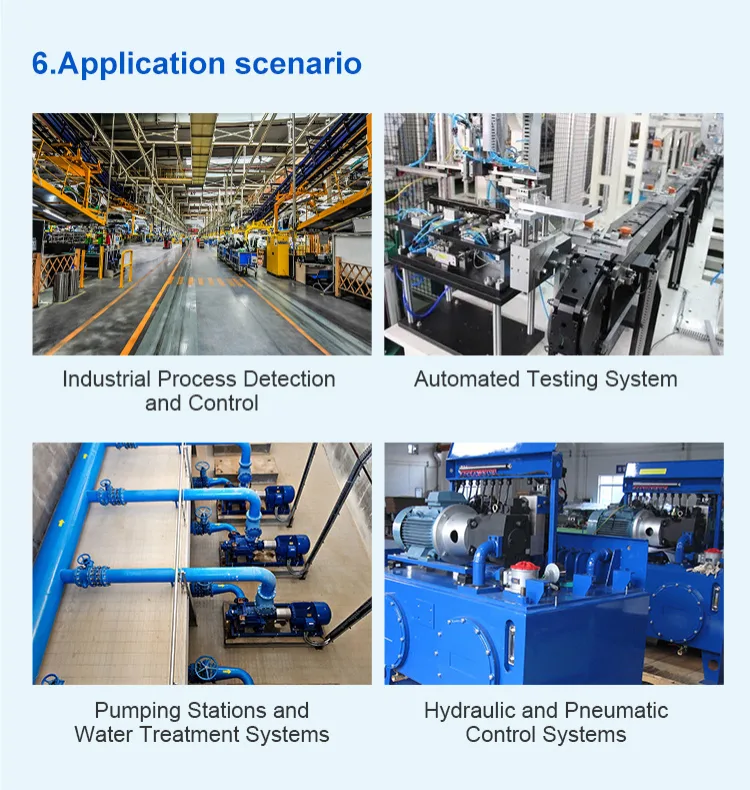

【Scope of application】

● Industrial Process Detection and Control

● Automated inspection system

● Pumping Stations and Water Treatment Systems

● Chemical, Hydraulic and Pneumatic Control Systems

【Technical Parameters】

Pressure type	Gauge pressure, absolute pressure
Pressure range (bar)	-1~0~0.2...600
Signal output	RS485
Supply voltage	3~4.2V DC, suitable for battery power supply
Current consumption	≤2.5mA
Stand-by current	≤0.2mA
Accuracy	±0.3 %FS ±0.5 %FS
Temperature compensation	-20~+85℃
Operating temperature	-40~+85℃
Long-term stability (1 year)	±0.2 %FS
Overload pressure	200%FS
Destruction pressure	300%FS
Protection class	IP65
Material	304 stainless steel

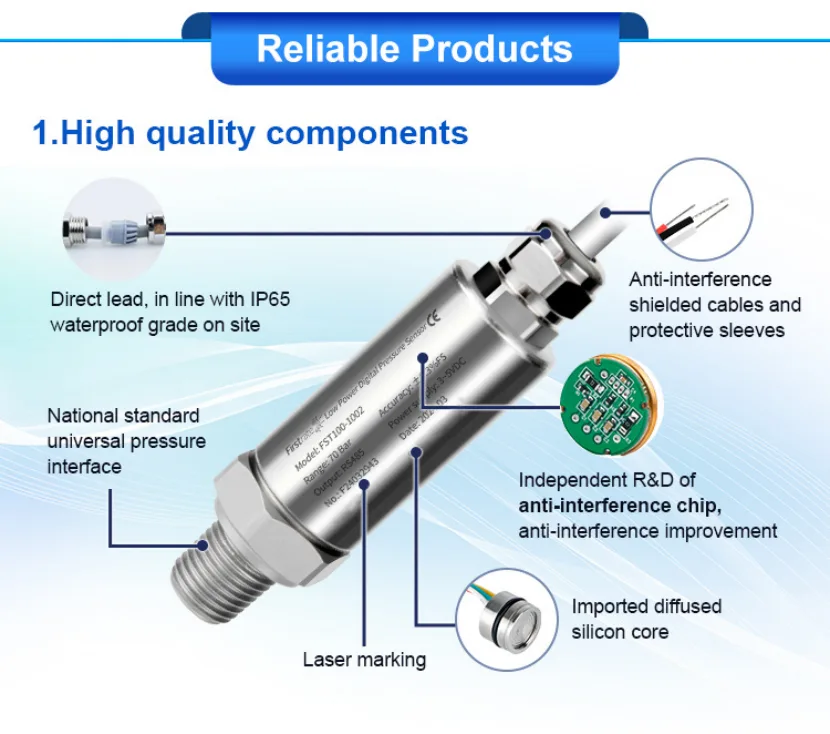

Electrical connections	Direct Lead, Hessman, Non-Threaded Explosion Proof Connector (IP67)
Pressure port	M20X1.5, G1/4, NPT1/4, (others can be customized on request)
