[Product Description]

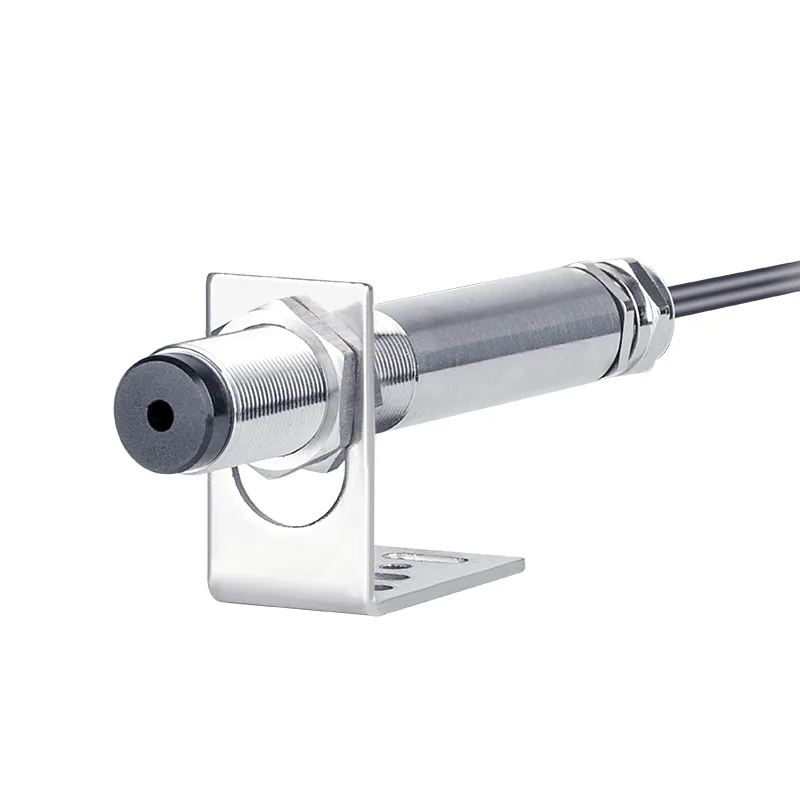

AZIC600-408 Anti-Microwave Infrared Temperature Sensor is an integrated infrared temperature sensor. The sensor, optical system, and electronic circuit are integrated in the stainless steel shell; it is easy to install, and the standard thread on the stainless steel shell can be quickly connected to the installation part; Accessories (such as purgers, mounting brackets, three-dimensional adjustable mounting brackets, purge protective sleeves, etc.) to meet the requirements of various working conditions.

【Features】

● Protection class: IP65
● Ambient temperature: 0 ~ 60°°C
● Storage temperature: -20 ~ 80°°C
● Relative humidity: 10–95% (non-condensing)
● Material: stainless steel
● Size: M18×1, length 106*18mm
● Cable length: 1.5 m (standard); other lengths can be customized

[Scope of application]

Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics, packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting, metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc.

Temperature measurement range (℃)	(0~100℃) (0~300℃) (0~500℃) Can be customized
Output signal	(4~20) mA, RS485 can be customized
Signal line specifications	2Wire、4Wire
Spectral range	8-14um
Supply voltage	10-30V DC、5-30V DC(RS485)
Temperature measurement accuracy	±2% of the measured value or ±2.5℃, whichever is greater
Spectral range	8-14um
Response time	100ms（95%）
ambient temperature	(0~+60)°C
Storage temperature	(-40~+85)°C
Response time	300ms（95%）
Protection level	IP65
Material	304
D: S	20:1
