[Product Description]

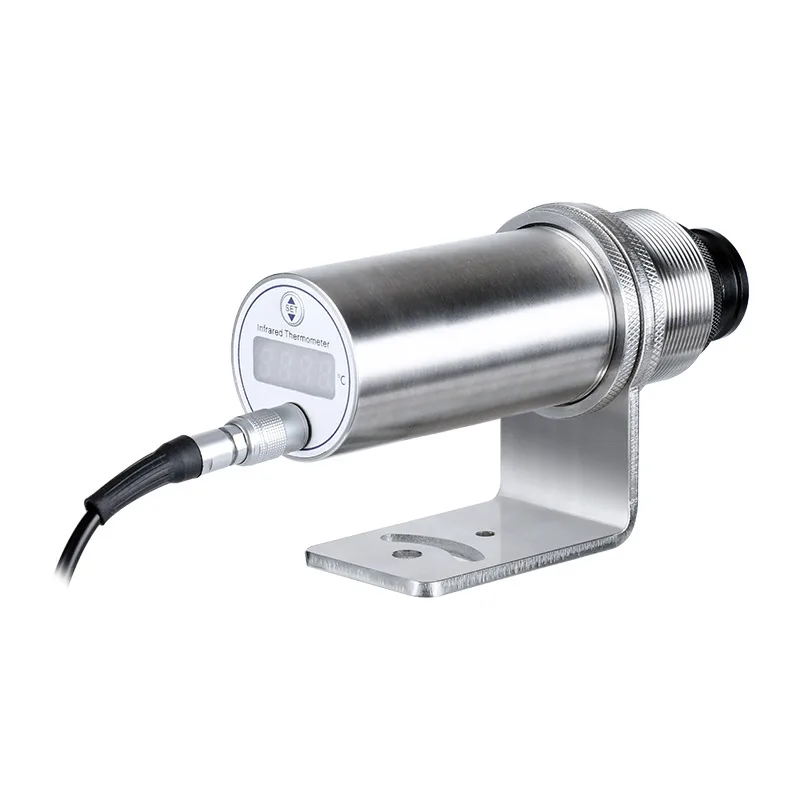

AZIC600-407B Short-wave coaxial laser infrared thermometer uses an infrared detector to measure infrared radiation energy and convert it into an electrical signal. This signal is then converted to temperature according to the fundamental laws of radiation and displayed on a display. It primarily consists of an optical system, a photodetector, a signal amplifier, and signal processing.
Infrared thermometers can be used to measure temperatures in areas with high or low temperatures, high voltages, and high-speed machinery. The operator does not need to be physically close to these environments. They also offer fast response times and high sensitivity. Because they measure non-contact, the measurement process does not alter the temperature of the object being measured, resulting in reliable results. Short-wave infrared thermometers provide more accurate temperature trends than long-wave infrared thermometers and can mitigate the effects of changes in the object's emissivity.

【Features】

● No need to contact the target.
● Fast response and high accuracy.
● Easy installation, with a variety of temperature measurement ranges available.

[Technical Parameters]

Temperature Measurement Range	50~400°°C
Output Signal	(4~20)mA,RS485
Signal Cable Specifications	4-Wire
Supply Voltage	24VDC
Temperature Measurement Accuracy	±1% or ±2°of measured value (ambient temperature: 23 ± 5°°C)
Spectral Range	2.3um
Ambient Temperature	(0~+60)°C
Storage Temperature	(-20~+80)°C
Response Time	100ms (95%)
D: S	60:1
