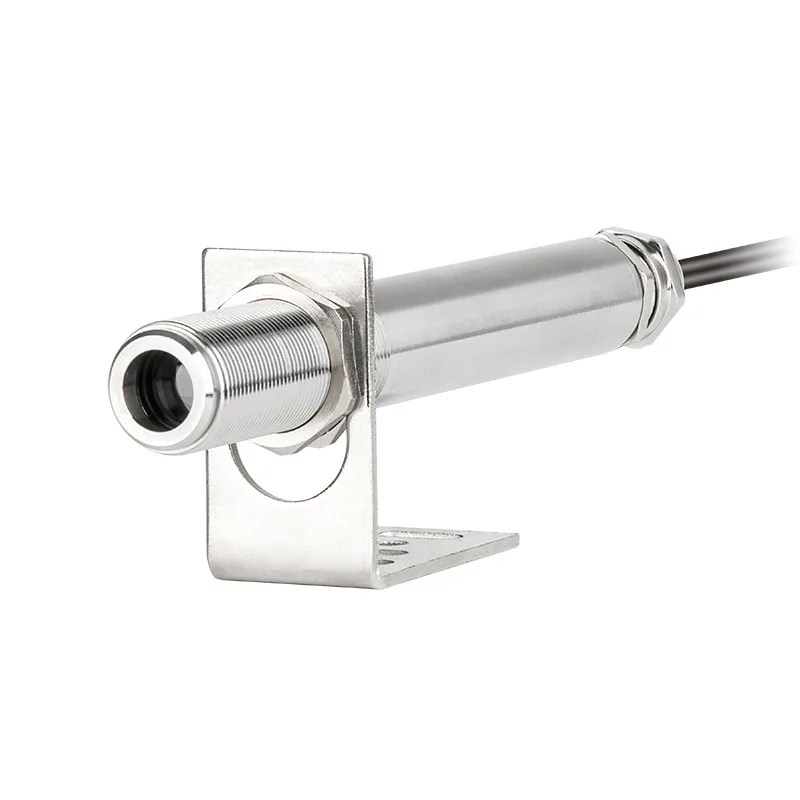

AZIC600-407 Shortwave Infrared Temperature Sensor uses a laser for coaxial aiming, can conveniently indicate the center position of the measurement point.
[Product Description]
AZIC600-407 Shortwave Infrared Temperature Sensor uses a laser for coaxial aiming, which can conveniently indicate the center position of the measurement point, and especially mark the best measurement distance, which is suitable for the temperature of small targets that require precise point measurement. It provides a two-wire 4-20mA current output, which can be easily installed in a variety of applications, especially suitable for installation in industrial environments that require long distances and strong interference.
【Features】
● No need to touch the target to be measured
● Fast response and high precision
● Easy installation, multiple temperature measurement ranges are optional
[Technical Parameters]
|
Temperature measurement range (℃) |
300~1400℃, 600~2000℃ |
|
output signal |
(4~20)mA, RS485 |
|
Signal line specifications |
4Wire |
|
Supply voltage |
24VDC |
|
Temperature measurement accuracy |
±1% of measured value (ambient temperature: 23±5°°C) |
|
Spectral range |
1.55μm (300-1400℃), 0.95μm (600-2000℃) |
|
ambient temperature |
(0~+60)°C |
|
Storage temperature |
(-20~+80)°C |
|
Response time |
100ms (95%) |
|
D: S |
100:1 |
|
Material |
304 |
[Scope of application]
Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics, packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting, metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc.
