[Product Description]

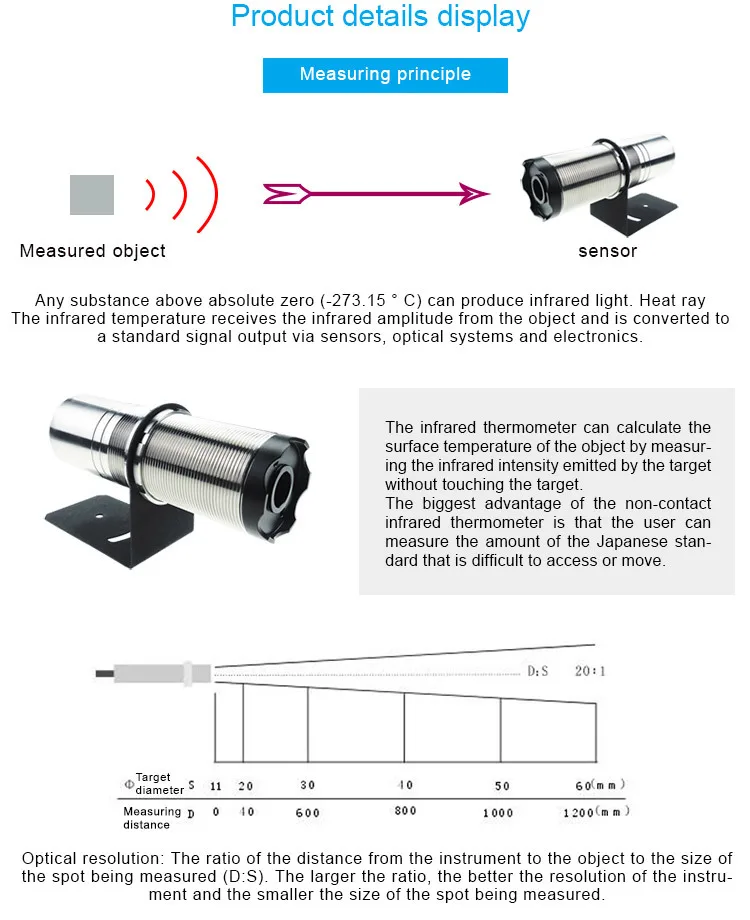

AZIC600-402 High Temperature Infrared Temperature Sensor measures the infrared radiation energy through the infrared detector (thermal detector and photoelectric detector) and converts it into an electrical signal, and then converts it into temperature according to the basic law of radiation and displays the temperature signal through the display instrument. It is mainly composed of an optical system, photodetector, signal amplifier, and signal processing. Infrared thermometers can be used to measure the temperature in areas with high or low temperature, high voltage, and high-speed machinery, and the measurer does not need to be close to these specific environments, and the product has fast response and high sensitivity. Due to the non-contact measurement, the measurement process will not change the temperature of the measured object, so the measurement results are true and reliable.

[Technical Parameters]

Temperature range	-50~1800℃(-58~3272°F)
Temperature accuracy	± 2% or ± 2 ℃
Signal output	4-20mA
Supply voltage	24VDC 50mA Max
Ambient temperature	0 ~ 50 ℃
Storage temperature	-20~50℃
Repeatability	±1% or ±1℃
Emissivity	0.95
Response time	500ms
Response wavelength	8-14um
Relative humidity	10–95% RH
Shell	Aluminum + Stainless steel

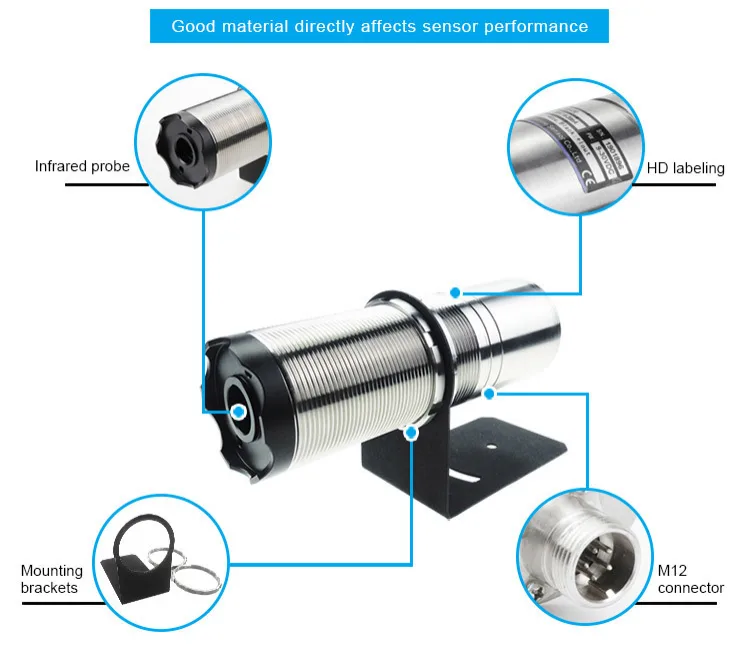

Electrical connection	M12 Connector
Laser Powered	9V Battery (use before fixed installation)
IP grade	IP65
Certification standards	CE certificate ; Compliance with EU anti-electromagnetic interference standards
