[Product description]

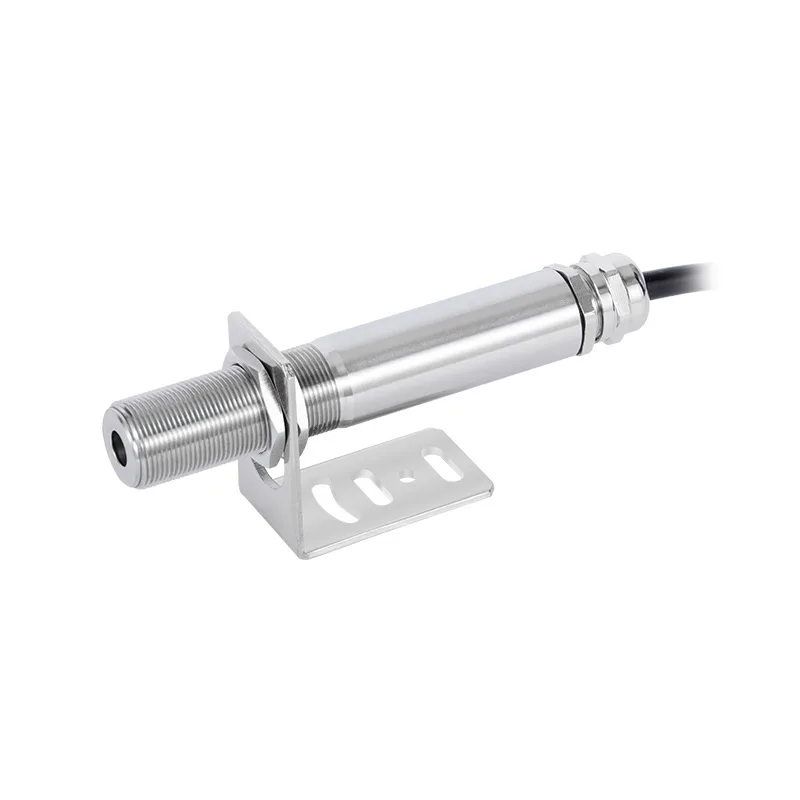

AZIC600-400 High-precision Online Infrared Temperature Sensor is a device that uses infrared to measure temperature. It can calculate the surface temperature of an object by measuring the intensity of infrared radiation emitted by the target without touching the target. Products are widely used in power equipment, metallurgy, construction industry, chemical products, and chemical industry and its automation control and detection systems.

[Scope of application]

● Power equipment, medical field
● Food construction industry, chemical products, and chemical industry
● Temperature monitoring in process and production areas
● Metallurgy, petrochemical, electric power, light industry, textile industry, food industry, national defense, and scientific research

[Technical Parameters]

Measuring range	-70~380℃
Temperature measurement accuracy	±2% of measured value or ±2℃, whichever is greater
Repeatability	±1% of measured value or ±1℃, whichever is greater
Signal output	4~20mA, RS485
Supply voltage	10~30VDC、5~30VDC(RS485)
Optical resolution	10:01
Firing rate	1
Response time	300 ms
Response wavelength	8-14um
Ambient temperature	-40~85℃
Storage temperature	-40~85℃
Relative humidity	10~95% (no condensation)
Outer shell	304 stainless steel
Size	119 mm × ф18.7 mm (length * diameter)
Electrical connections	Direct out
Protection level	IP65
