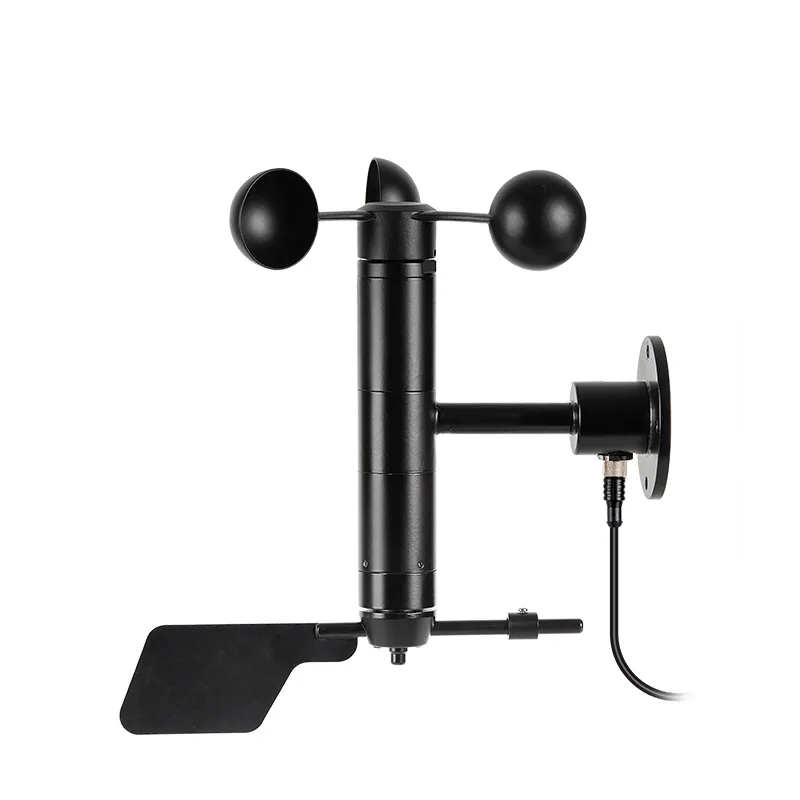

AZIC200-205A Heated Wind Speed and Direction Sensor is used to measure wind speed and direction and convert them into electrical signals.
【Product Description】
AZIC200-205A Heated Wind Speed and Direction Sensor is used to measure wind speed and direction and convert them into electrical signals, which can be transmitted directly to the recording device for processing.This signal can be directly transmitted to the recording equipment for processing.

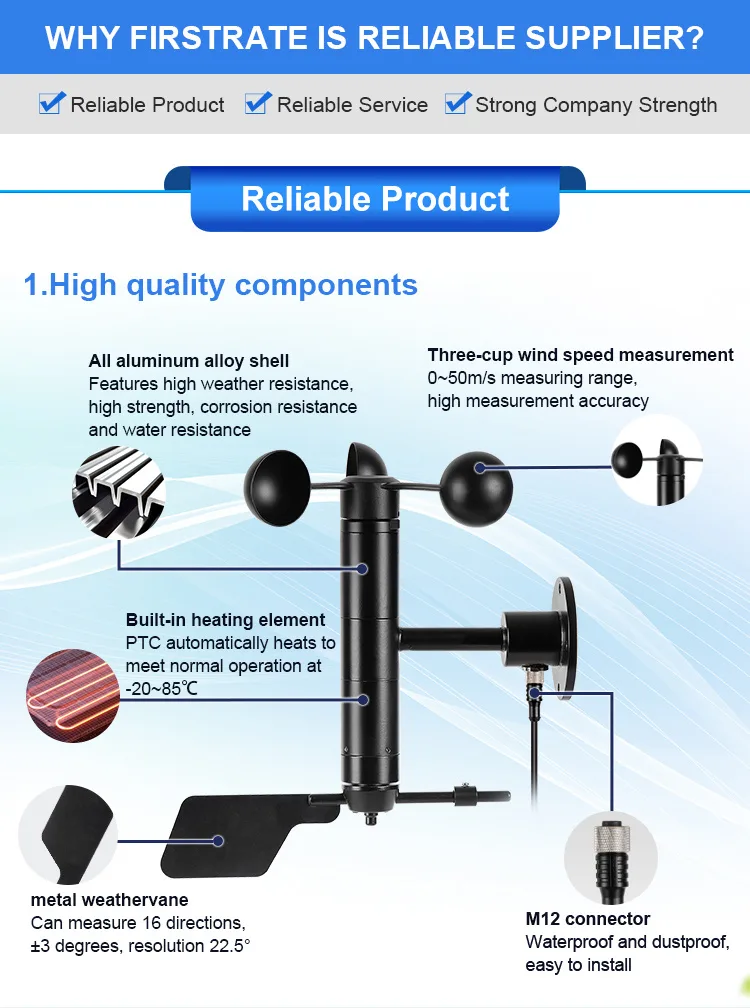

AZIC200-205A Heated Wind Speed and Direction Sensor shell is made of aluminum alloy, using a special mold precision die-casting process, the size tolerance is very small surface accuracy is very high, and at the same time with a high weather resistance, high strength, corrosion and water resistance; internal circuitry are protected, the entire sensor has a very good resistance to harsh environments.
【Features】
● Small size, easy to carry, simple to install, and beautiful appearance.
● Has strong corrosion resistance and weather resistance.
● High measurement accuracy, wide measuring range and good stability.
● Low power consumption, strong anti-interference ability, and long-term stable operation.
● The power supply has a wide adaptable range, good linearity of data information, and long signal transmission distance.
【Technical parameters】
|
Digital type |
RS485（Modbus RTU） |
|
Supply Voltage |
DC10~30V |
|

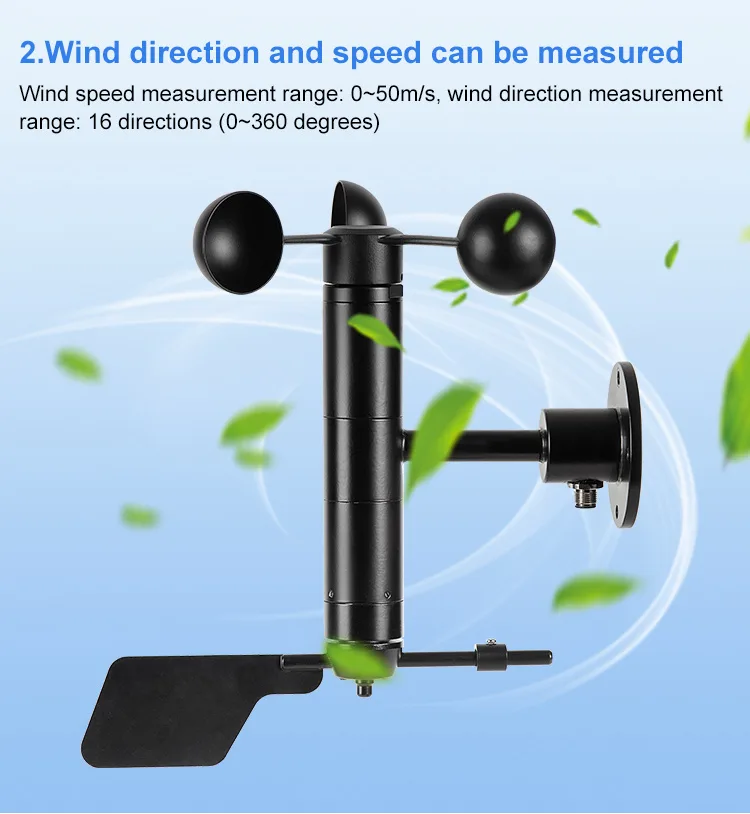

Testing range |
0-50m/s/16 directions (0-360 degrees) |
|
Accuracy |
±0.5m/s(＜5m/s)；±3%FS(≥5m/s) |
|
maximum power |
RS485 MAX≤300mW |
|
Heat power |
60W |
|

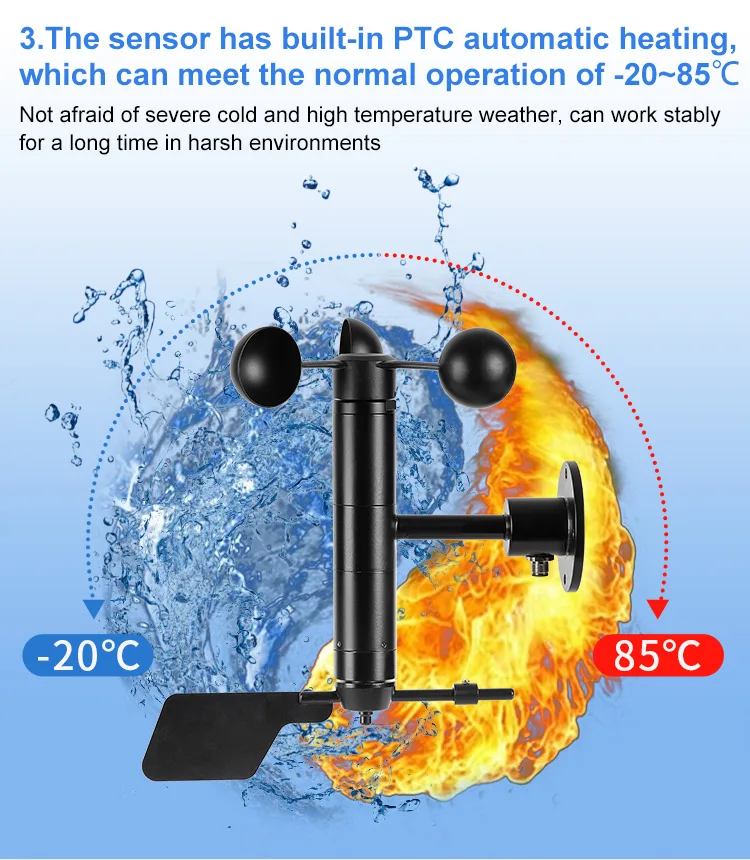

Working temperature |
-20~85℃ |
|

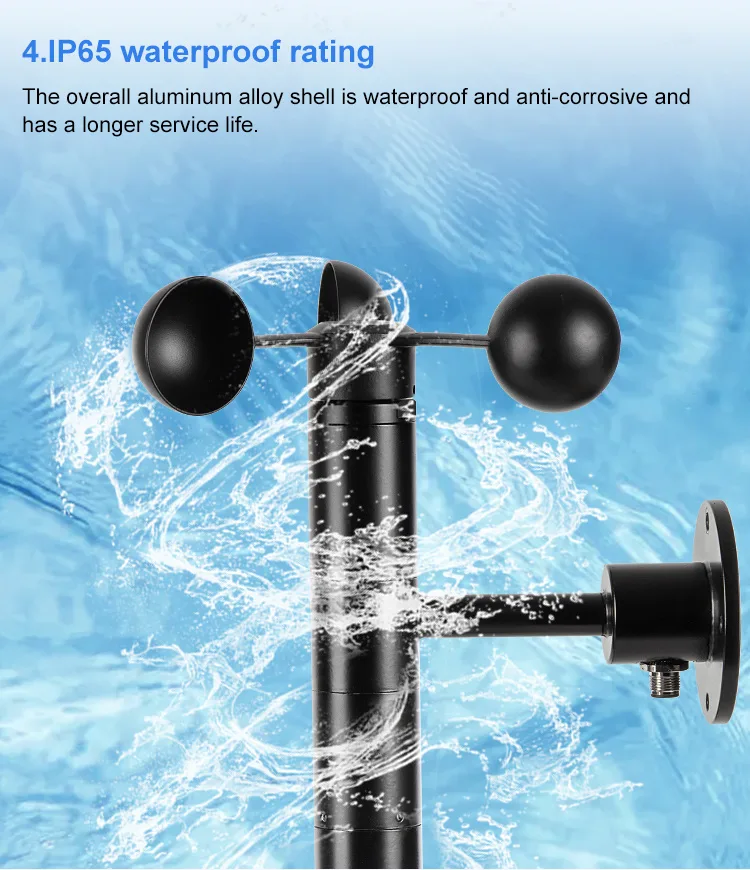

Protection rate |
IP65 |
【Scope of application】
AZIC200-205A Heated Wind Speed and Deriction Sensor is suitable for wind speed monitoring in factories, electric power, ports, factories and mines, wind turbines, large mechanical equipment, etc.
