AZIC200-2002 Cup Wind Direction Sensor is with photoelectric signal conversion, accurately output the corresponding wind direction information.
【Product Description】

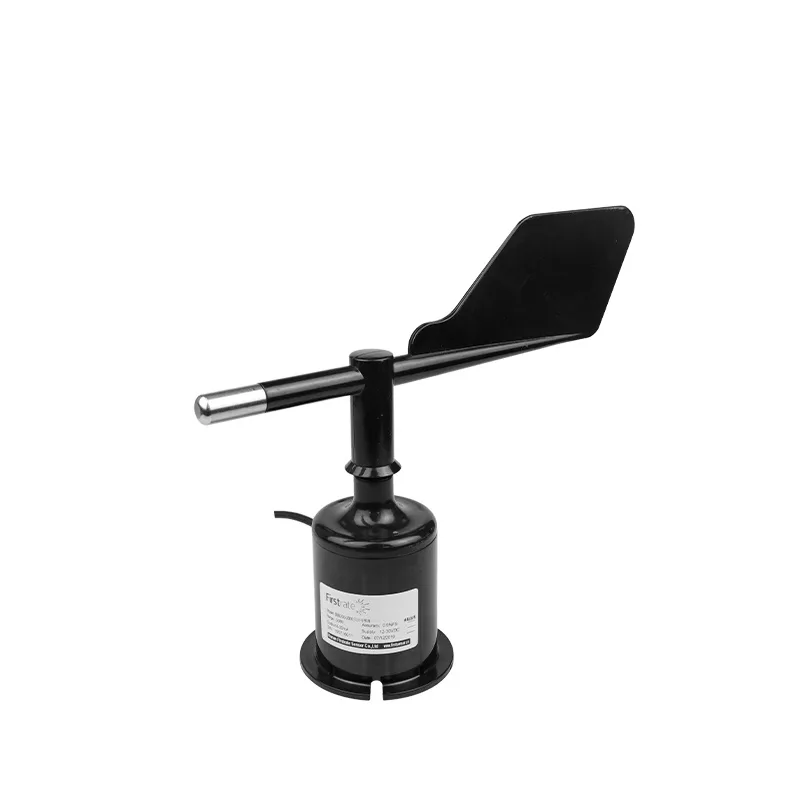

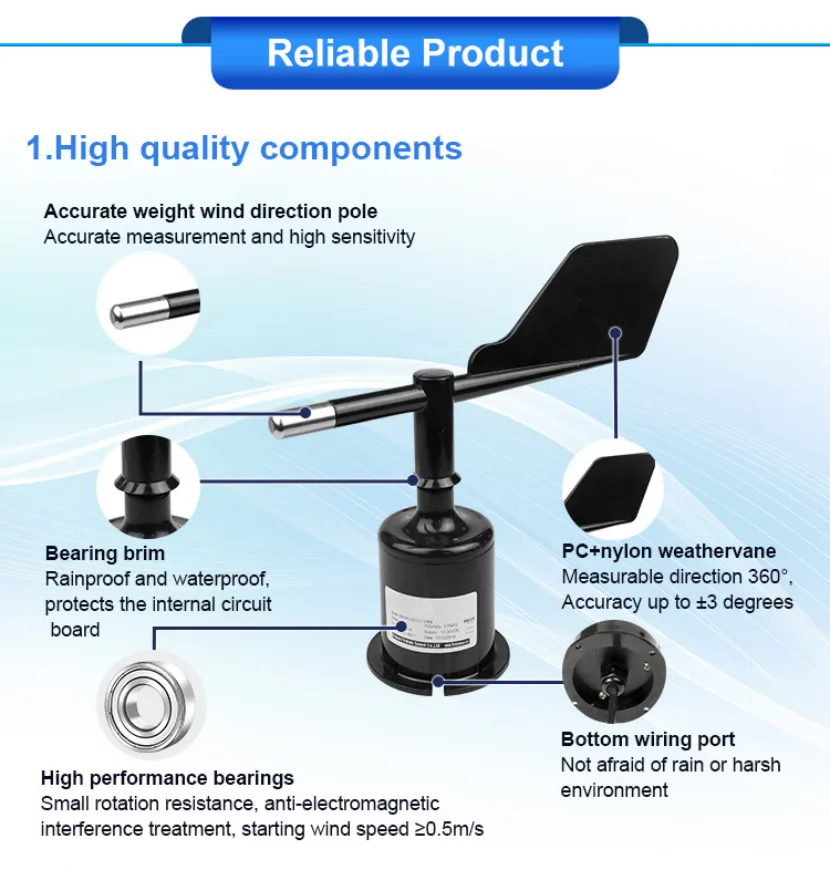

AZIC200-2002 Cup Wind Direction Sensor is based on the principle of photoelectric signal conversion, which can accurately output the corresponding wind direction information. The overall structure is made of polycarbonate material, which is anti-corrosion and not easy to age. The product has good waterproof and corrosion resistance, and is widely used in wind direction measurement in environmental monitoring, weather stations, ship foils.
【Scope of application】
● Monitoring and control of working at heights
● Monitoring and Control of Construction Machinery Operation Process
● Monitoring and control of weather stations and environmental protection
● Monitoring and control of ports and terminals
【Technical Parameters】
|
Operating Voltage |
12-30VDC |
|
Output signal |
4-20mA ,0-5VDC , RS485 |
|
Measuring range |
0-360° |
|
Direction |
8 |
|
Accuracy |
±1° |
|
Resolution |
22.5°C |
|
Working humidity |
0%~95% (non-condensing) |
|
Protection class |
IP65 |
