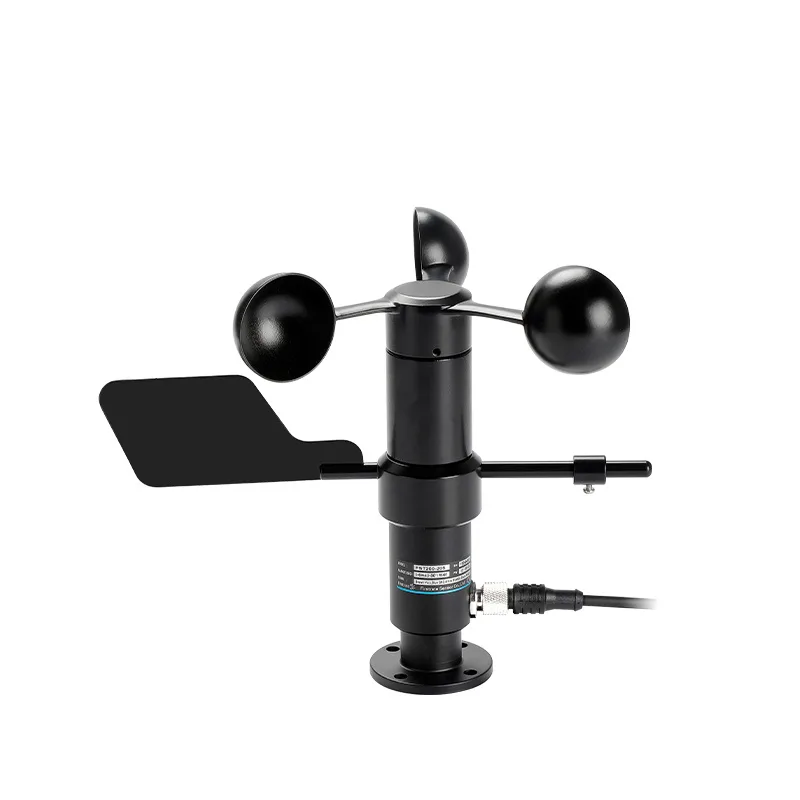

AZIC200-205 wind speed and direction sensor is used to measure the wind speed and wind direction value, and convert it into an electrical signal.
【Product Description】

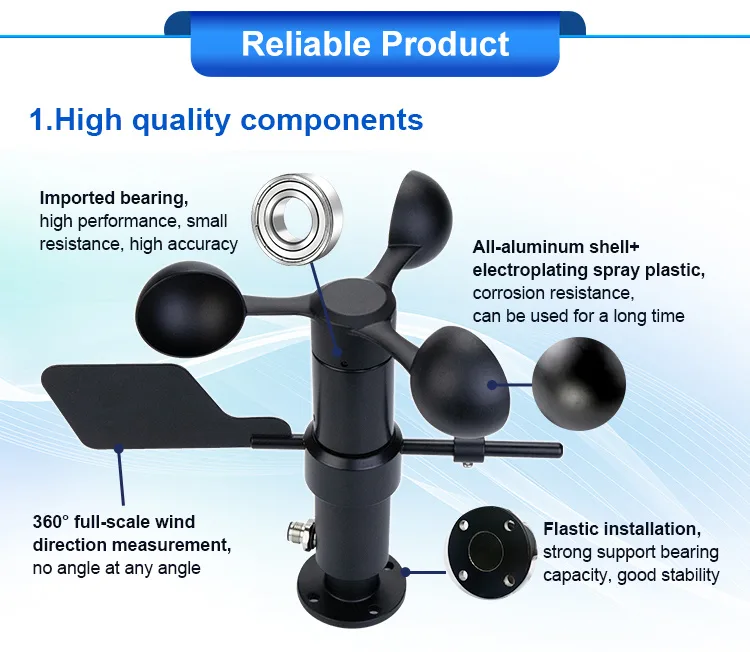

AZIC200-205 wind speed and direction sensor is used to measure the wind speed and wind direction value, and convert it into an electrical signal, which can be directly transmitted to the recording device for processing. The sensor housing is made of aluminum alloy, using special mold precision die-casting process, the dimensional tolerance is very small, the surface precision is very high, and it has high weather resistance, high strength, corrosion resistance and water resistance; the internal circuit has been protected, and the whole sensor has Good adaptability to harsh environments.

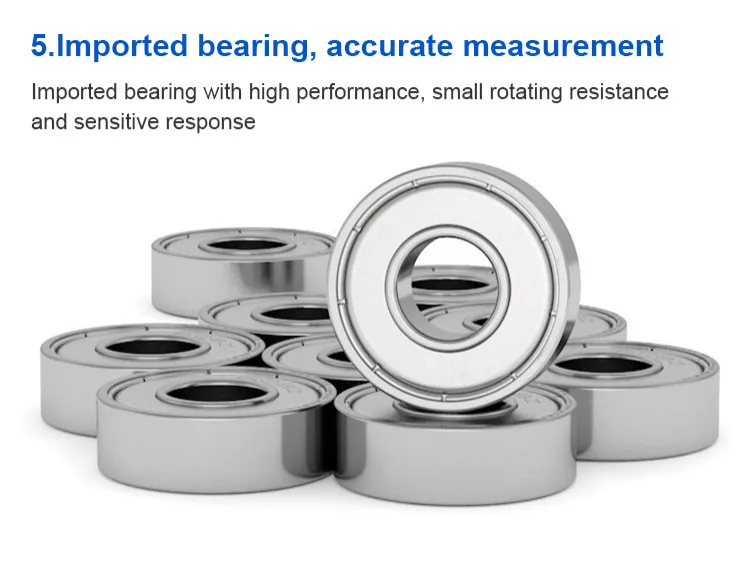

The cable connector is a military plug, which has good anti-corrosion and anti-corrosion performance, which can ensure the longterm use of the instrument. At the same time, it cooperates with the internal imported bearing system to ensure the accuracy of wind speed and wind direction collection.
【Technical Parameters】
|
Operating Voltage |
12-30VDC/12-30VDC/12-30VDC/15-30VDC |
|
Output signal |
4-20mA/0-5VDC/Rs485/0-10VDC |
|
Range |
Wind speed: 0-30m/s,0-60m/s;
Wind direction: 16 directions or 8 directions (0-360 degrees) |
|
Precision |
Wind speed: ±3% (≥5m/s); wind direction: ±3 degrees |
|
Maximum power consumption |
Current type MAX≤500mW; RS485 type MAX≤300mW |
|
Start wind speed |
≤0.5m/S |
|
Surge protection |
EMC Class III |
|
Static protection |
15KV |
|
Operating temperature |
-40-85℃ |
|
Working humidity |
0%~95%(non-condensing) |
|
Protection level |
IP65 |
【Scope of application】
● Monitoring of high-altitude operations
● Monitoring and control of construction machinery operation process
● Meteorological station and environmental protection monitoring and control
● Port and terminal monitoring and control
【Sensor installation instructions】
● Please install the sensor horizontally. The electrical connector should be aligned with the north during installation. The angle between the base and the horizontal plane should not exceed 5℃ to ensure that the sensor can accurately measure the wind speed and direction at low wind speeds;

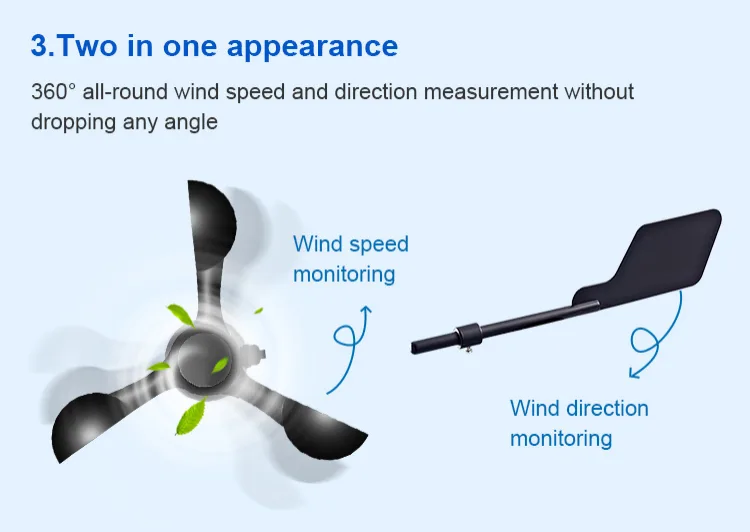

● The position and shape of the wind cup and windmill arm, wind direction rod and tail fin directly affect the accuracy of the sensor. Please do not grasp the wind cup, windmill arm, wind direction rod and tail fin during installation, so as not to damage the sensor structure and affect the measurement accuracy.
