【Product Description】

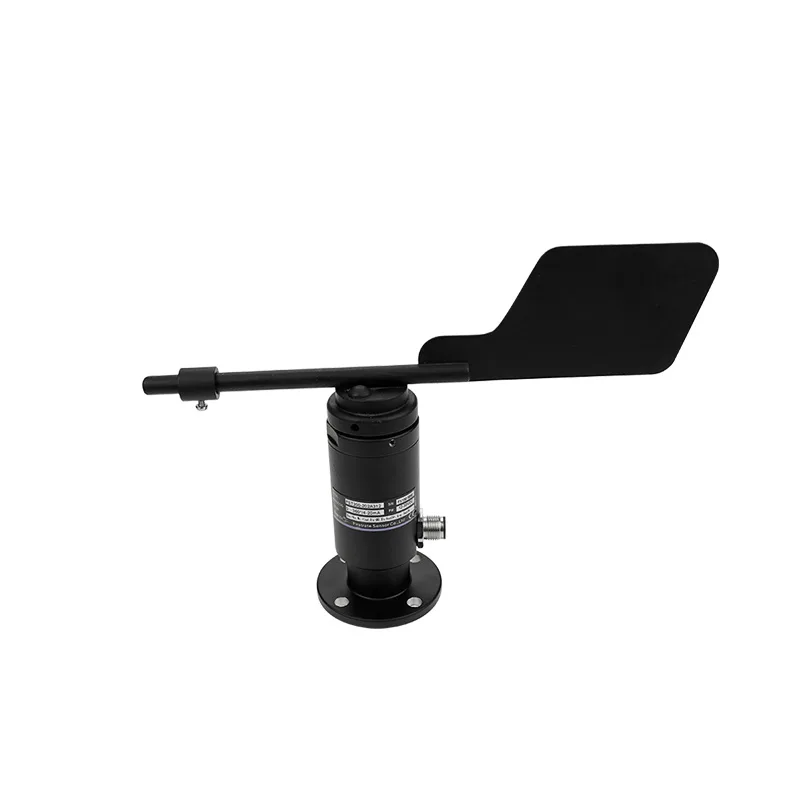

AZIC200-202A Auto Heating wind direction sensor is a highly reliable, high performance wind measurement sensor with automatic heating and de-icing.

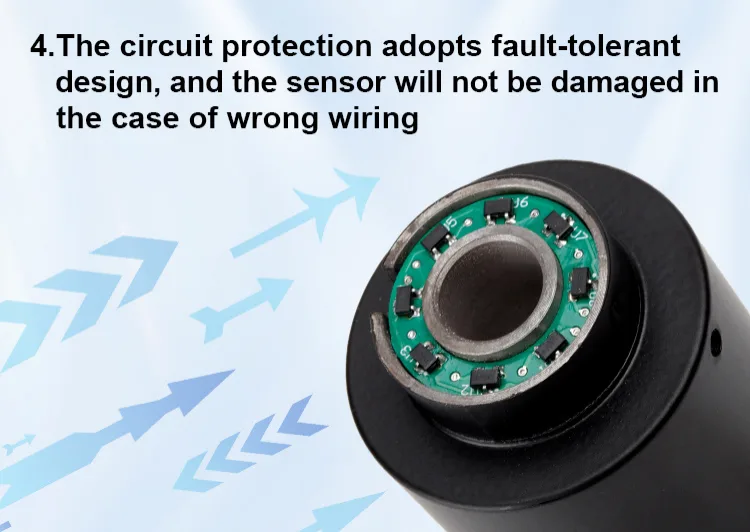

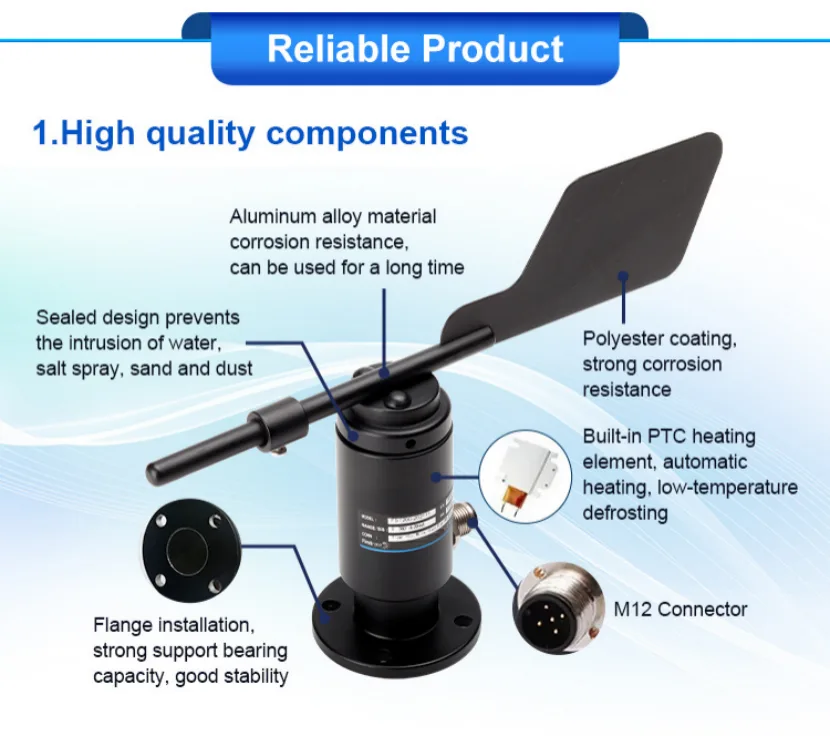

AZIC200-202A wind direction sensor is built-in powerful anti-radio, anti-electromagnetic interference and anti-lightning surge protection circuit. Suitable for wind direction testing in engineering machinery, railroads, ports, terminals, powder plants, weather stations, ropeways, greenhouses, aquaculture and other industries. Adapt to the harsh low temperature environment. The main structure is made of alloy material and the surface is well treated with waterproof and anti-corrosion.

【Technical Parameters】

Supply Voltage	12~30VDC	12~30VDC	15~30VDC
Signal output	4~20mA	0~5V, RS485	0~10V
Start wind speed	≤0.5m/s	Testing range	0-360°

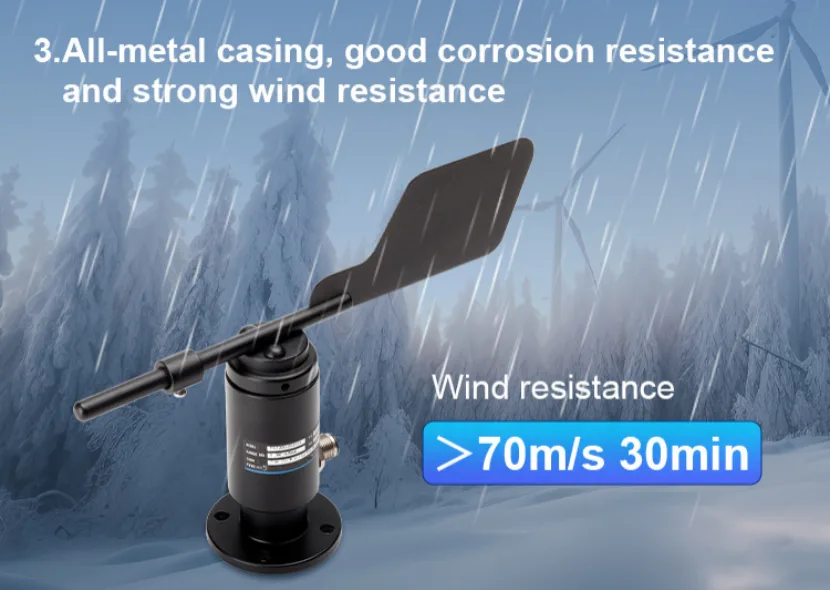

Accuracy	±3°	Anti-Wind strength	>70m/s
Direction	16	Resolution	22.5°

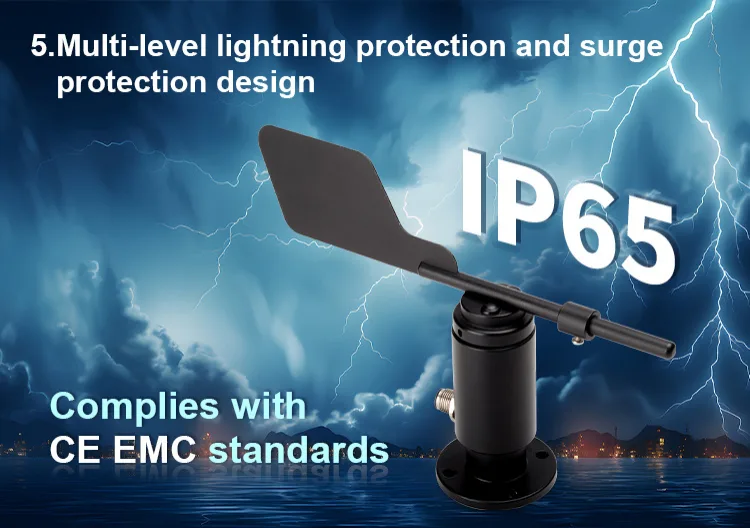

Surge protection	EMC III	Protection rate	IP55
Working temperature	-40℃~+85℃	Electrostatic protection	15KV
Heat ways	PTC Auto-heated	Humidity	0%~95%(Non-condensing)
Heat power	DC24V	Wind cup material	Stainless steel 304
Heat Power	<50W	Main	Aluminum / polyester coating
