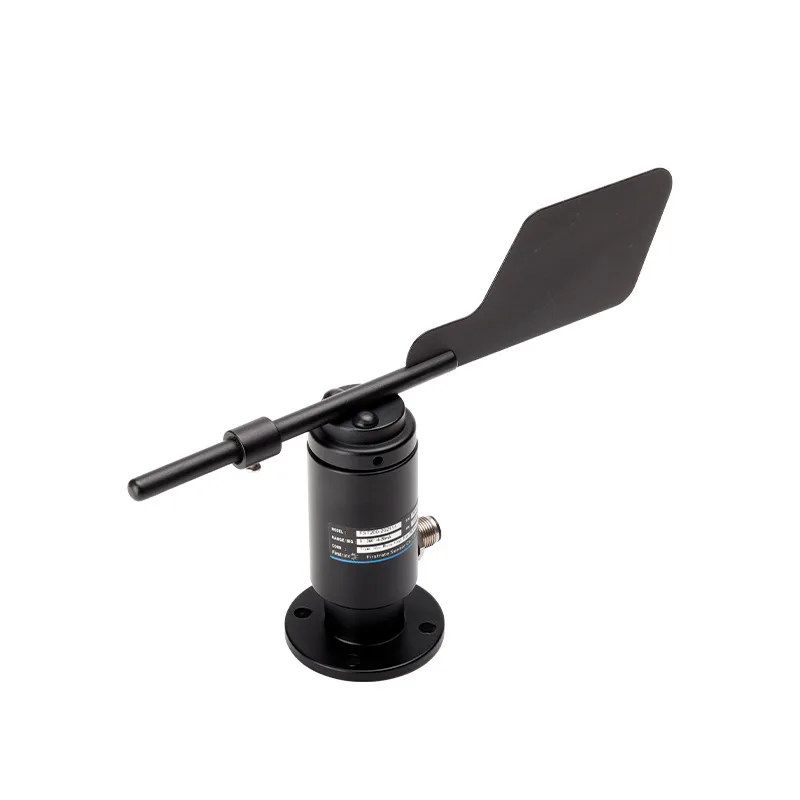

AZIC200-202 Weather Monitor Wind Vane Sensor used to measure wind direction in fields such as meteorology, ropeway, environment, greenhouse, and breeding.
【Product description】
AZIC200-202 Weather Monitor Wind Vane Sensor used to measure wind direction in fields such as meteorology, ropeway, environment, greenhouse, and breeding. The main structural parts are made of alloy materials with surface treatment. The product has good waterproof and corrosion resistance. The internal and rotating parts are all sealed, which can effectively prevent the intrusion of water, salt spray and sand dust.
【Features】
● Non-contact magnetic sensor measurement principle, high measurement accuracy and strong reliability
● Using high-precision alloy material, polyester coating, strong wind resistance and corrosion resistance
● Convenient observation, stable and reliable
● Sensor circuit protection adopts fault-tolerant design
● Comply with CE EMC standard, multi-level lightning and surge protection design
● Exquisite design, simple installation
【Scope of application】
● Monitoring and control of high-altitude operations
● Monitoring and control of construction machinery operation process
● Monitoring and control of weather stations and environmental protection
● Monitoring and control of ports and docks
【Technical Parameters】
Measuring range
0~360°
Output signal
4~20mA, 0~5V, 0~10V, Modbus485
Supply voltage
15~30VDC
Precision
±3°
Starting wind speed
≤0.5m/s
Wind strength
＞70m/S 30min
Operating temperature
-20~+85℃
Humidity
0%~95% (Non-condensing)
Storage temperature
-40℃~125℃
Electrostatic protection
15KV
Material
Aluminum alloy/polyester layer
Protection level
IP65
Electrical connections
M12 connector
