PH Sensor

 Product overview

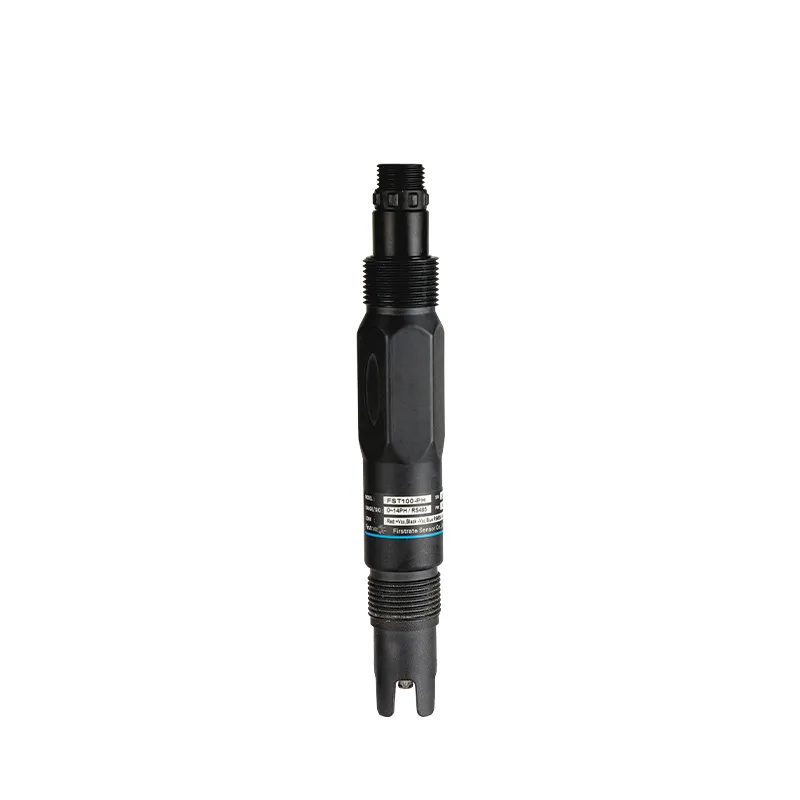

AZIC100-PH105A  4-20 MA RS485 PH Sensor Water Quality Monitoring adopts the glass electrode method. The measuring part consists of a glass indicator electrode and a reference electrode. By measuring the potential difference of the working cell composed of the indicator electrode and the reference electrode in the solution, the online monitoring of pH is realized.

This product can measure the pH value and temperature value of the liquid in real time, supports 485 serial port output or current output, and has automatic temperature compensation. It can be used in strong acid and alkali, industrial wastewater, electroplating, printing and dyeing, electronics, chemical media, and other industries.

Features

● Universal RS485 interface, Modbus/RTU protocol.

● Conveniently connected to third-party equipment such as industrial control computers, general controllers, recording instruments, PLCs, DCS, etc.

● Dual high-impedance differential amplifiers, strong anti-interference, and fast response.

● Pipe threads are easy to install, convenient for submerged installation or installation in pipes and tanks.

● Protection level IP68.

Technical indicators
