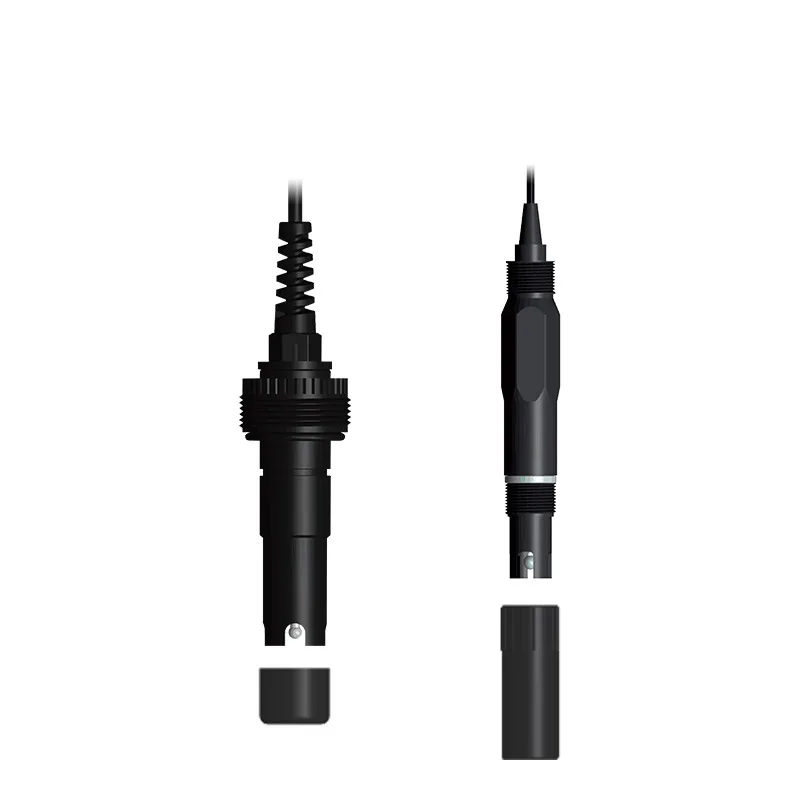

AZIC100-PH101 water pH sensor

AZIC100-PH101 water pH sensor is a vital tool for measuring pH and is commonly used to monitor water quality, can detect alkalinity and acidity in water.

[Product Description]

AZIC100-PH101 water pH sensor is a vital tool for measuring pH and is commonly used to monitor water quality. It can detect alkalinity and acidity in water as well as other solutions. In wastewater and manufacturing plants, pH sensors can be used to ensure that products and processes are safe and of high quality. A pH sensor is capable of measuring alkalinity and acidity in water and other solutions. When used properly, pH sensors can ensure the safety and quality of products and processes that occur in wastewater or manufacturing plants.

[Scope of application]

● General water treatment, sewage treatment, aquaculture, surface water monitoring;
● Environmental protection engineering, cooling tower circulating water, beverage and food, industrial sewage discharge monitoring, etc.
● Submersible or Socket Mount.

[Technical Parameters]

pH measurement range

0....14pH

Sensitive film number

H1020

Zero potential (pH)

7.00±0.30

Membrane resistance

<500MΩ

Temperature measurement range

0...60℃

liquid junction

Teflon

Slope

≥95%

Process connection thread

NPT 3/4

Withstand voltage range

0...4bar

Electrode protective sleeve

Have

Shell material

PC

Signal line length (m)

5 meters (can be customized)

Electrical connection

Pin

Optional BNC, Y inserts

Temperature Sensor

Pt1000

Optional PT100, NTC10K, NTC2.252K
