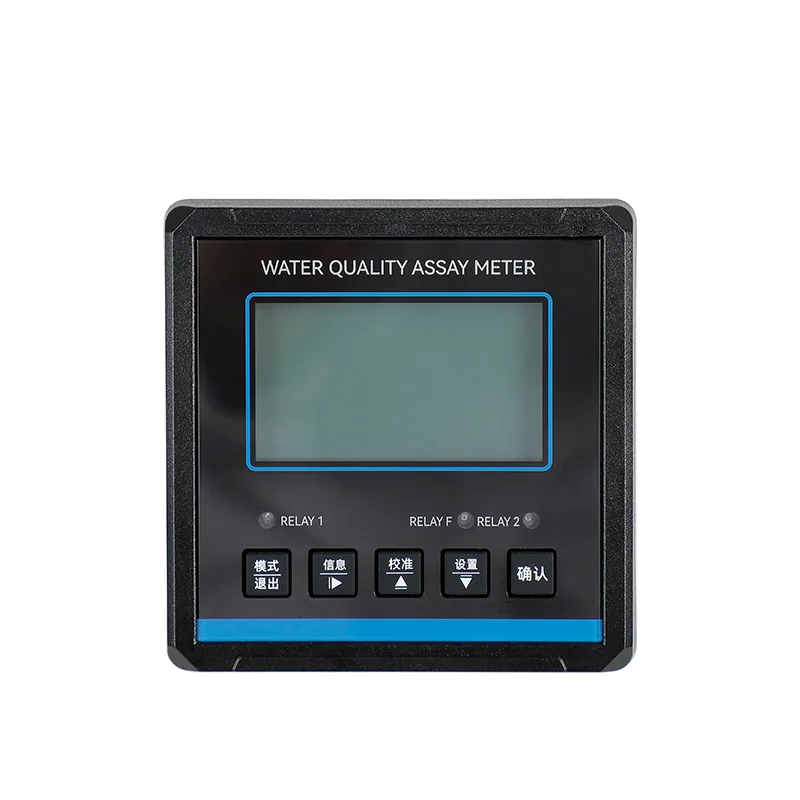

AZIC100-PH1000 PH Meter Controller ORP Controller is widely used in thermal power, chemical fertilizer, metallurgy, food, and tap water industries.
[Product overview]
AZIC100-PH1000 PH Meter Controller ORP Controller is widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, and tap water industries. It mainly monitors the pH/ORP and temperature of the solution continuously.
【Features】
● 128*64 dot matrix LCD display, switchable between Chinese and English, stable operation around the clock;
● Simple menu design, easy and convenient operation, graphical prompts, beautiful and clear interface;
● Adjustable software digital filter, enhanced hardware anti-interference ability, making measurement more stable and adaptable to complex industrial environments;
● Universal power supply 100~240 VAC, DC 9~36 VDC can also be customized;
● RS-485 digital interface, MODBUS-RTU communication protocol;
● Two measurement functions: pH (acidity) measurement or ORP (oxidation-reduction potential) measurement;
● With a metal antimony electrode function, it can be used in a hydrofluoric acid environment.
[Technical indicators]
|
PH |
Measuring range |
-2.00～16.00PH |
|
Resolution |
0.01PH |
|
|
Measuring accuracy |
±0.01PH |
|
|
Input impedance |
≥1012 Ω |
|
|
ORP
|
Measuring range |
-2000～2000 mV |
|
Resolution |
1 mV |
|
|
Measuring accuracy |
±1 mV |
|
|
Temperature
|
Measuring range |
-10.0～130.0℃ |
|
Resolution |
0.1℃ |
|
|
Measuring accuracy |
±0.3℃ |
|
|
Temperature input |
PT1000/NTC |
|
|
Temperature compensation |
Automatic/manual |
|
|
Transmitted current
|
Output type |
Two channels 4–20 mA (corresponding range can be set) |
|
Current accuracy |
±0.2%FS |
|
|
Output load |
Less than 500 Ω |
|
|
Switch control |
Function relay |
1 (can be set as cleaning, alarm, or follow) |
|
Switching relay |
2 SPST relays |
|
|
Load capacity |
5A 250VAC/5A 30VDC |
|
|
Data transmission |
Transmission interface |
One RS485 |
|
Communication protocol |
MODBUS-RTU |
|
|
Other parameters
|
Working power supply |
100～240 VAC or 9～36 VDC (user selectable before ordering) |
|
Working temperature |
0～60℃ |
|
|
Working humidity |
Relative humidity < 90% |
|
|
Installation method |
Dial installation |
|
|
Dimensions |
(H×W×D) 108×108×132 mm |
|
|
Opening size |
92.5×92.5 mm (positive tolerance) |
