【Product Description】

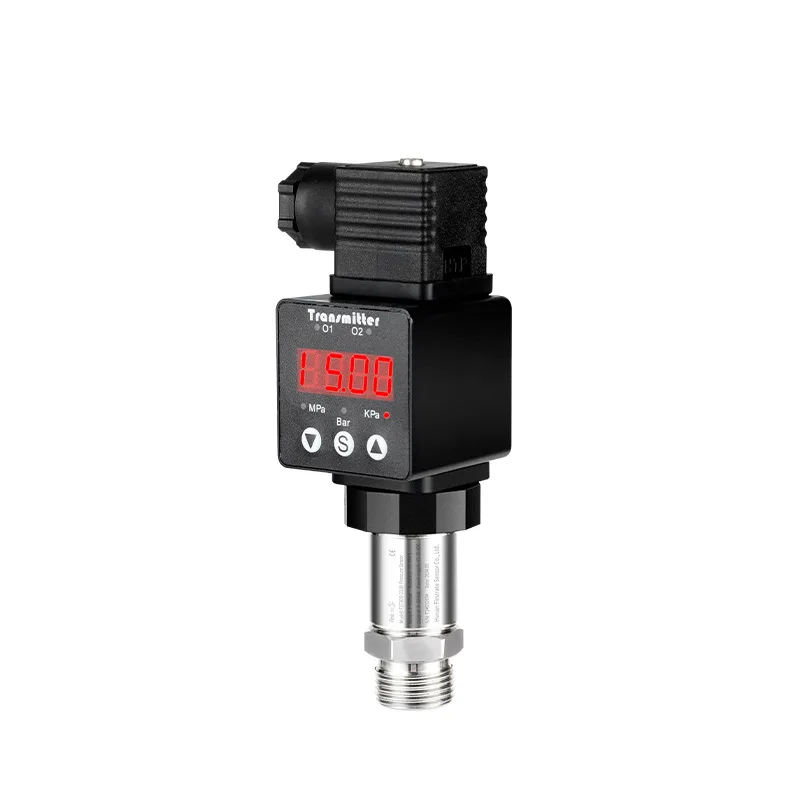

China AZIC800-3100 Digital Pressure Sensor，Real-time pressure monitoring and display.

Product features:

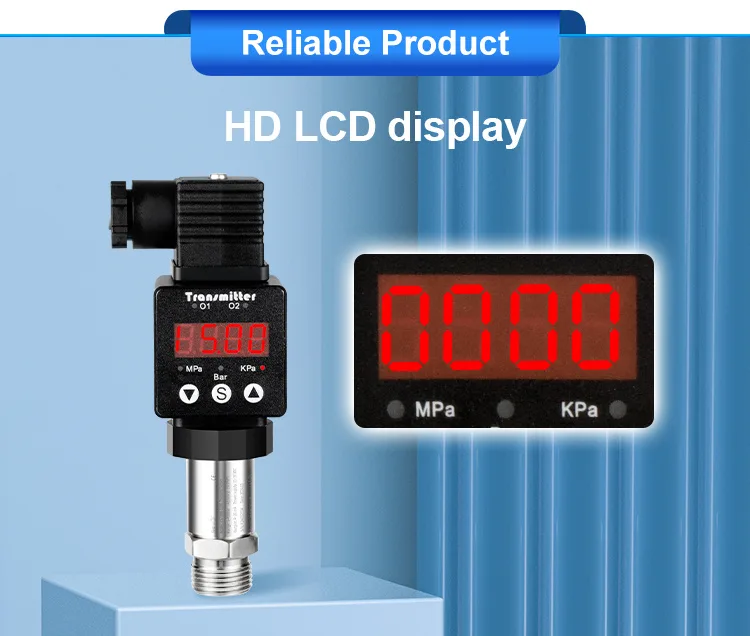

● Real-time LCD display monitoring

● Integrated temperature compensation

● Wide temperature working range, small size

● Excellent corrosion, anti-wear, & vibration resistance

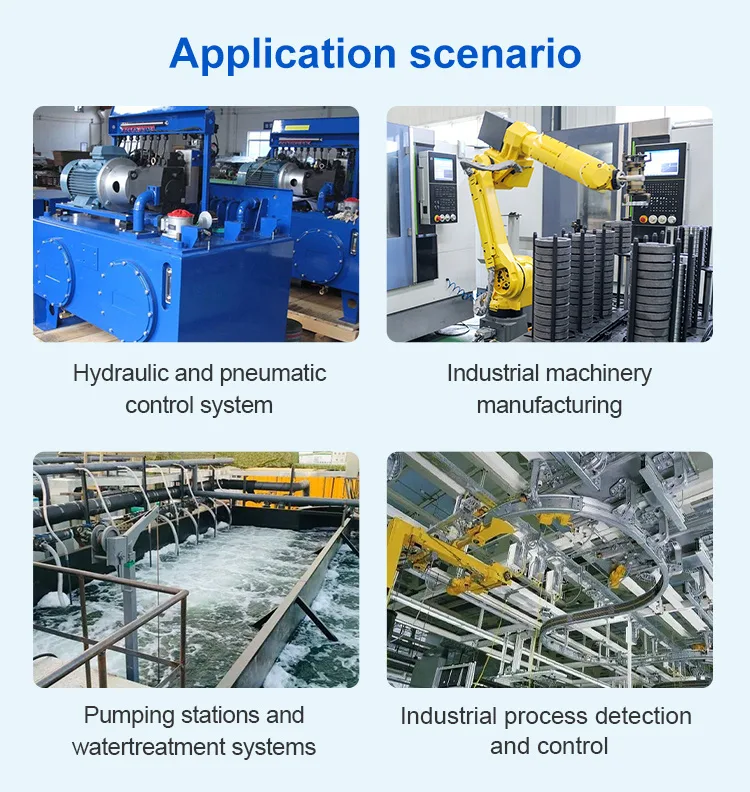

Applications:

● Industrial process and control

● Automated detection

● Hydraulic and full-motion control

● Water treatment system

● Industrial machinery manufacturing

● Pumping stations

【Technical Parameters】

Type of pressure	Gauge
Overload pressure	200 %FS
Pressure range (bar)	-100kPa…0kPa~20kPa-60MPa
Breaking pressure	300%FS
Signal output	4~20 mA
Impact (11mS)	100g
Signal line specifications	2 Wire
Mechanical vibration	±20g
Supply voltage	15~30VDC
Protection level	Ip65
Precision	0.5%FS±1 %FS
Live display	LED/LCD display

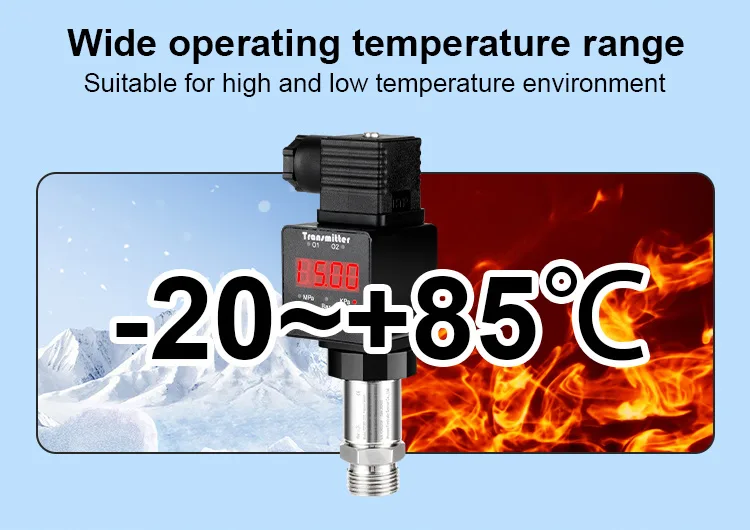

Operating temperature	-20~+85℃
Electrical connections	Big Hessman
Storage temperature	-40~+105℃
Pressure port	Standard configuration M20×1.5, G1/4, NPT1/4, other optional
