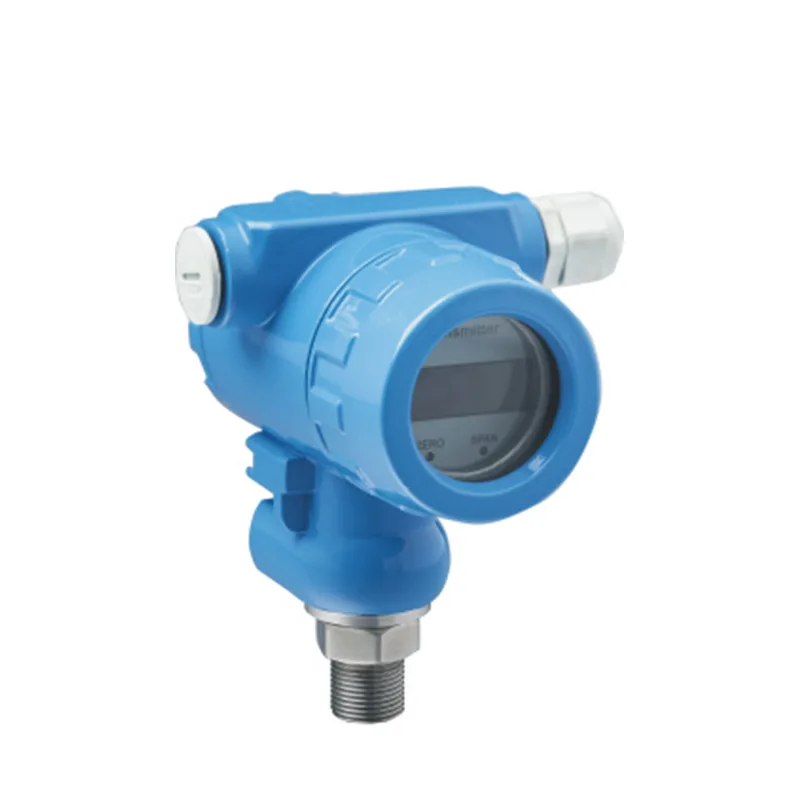

AZIC800-220 Industrial LCD LED Display Pressure Transmitter

【Product Features】

● Standard pressure housing, enabling on-site debugging and display
● Excellent impact resistance, overload resistance, vibration resistance, and corrosion resistance
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability
● 3-1/2-digit LED/LCD display, simultaneous output 4~20mA

【Application Range】

● Industrial process detection and control
● Automated detection system
● Hydraulic and full-motion control system
● Pump station and water treatment system
● Industrial machinery manufacturing

【Technical Parameters】

Reference temperature: 25℃ (unless otherwise stated)

Measuring range (bar)	-1...0~0.2...600
Output signal	4～20mA
Signal line specifications	2 wires
Supply voltage	15～30 VDC (24VDC recommended)
Level of accuracy	±0.3%FS, ±0.5%FS
Zero temperature drift	±0.02%FS/°C
Sensitivity temperature drift	±0.02%FS/°C
Long term stability (1 year)	±0.1% FS
Response frequency (-3dB)	3.2kHz
Temperature compensation	(-20～+85)°C
Ambient temperature	(-40～+85)°C, header part -20~+85°C
Storage temperature	(-40～+125)°C
Load point resistance	Voltage output: RL＞100KΩ, current output: RL≤(power supply voltage -9V)
Overload pressure	150%FS (range <6Bar), 300%FS (range≥6Bar)
Destroying pressure	300%FS (range <6Bar), 500%FS (range≥6Bar)
Mechanical vibration	±20 g
Shock(11ms)	100g
Insulation resistance	22MΩ/55VDC
Material	304 or 316 stainless steel (range <6Bar), 17-4PH (probe) + 304 stainless steel electronic compartment (range ≥ 6Bar)
Protection level	IP65
