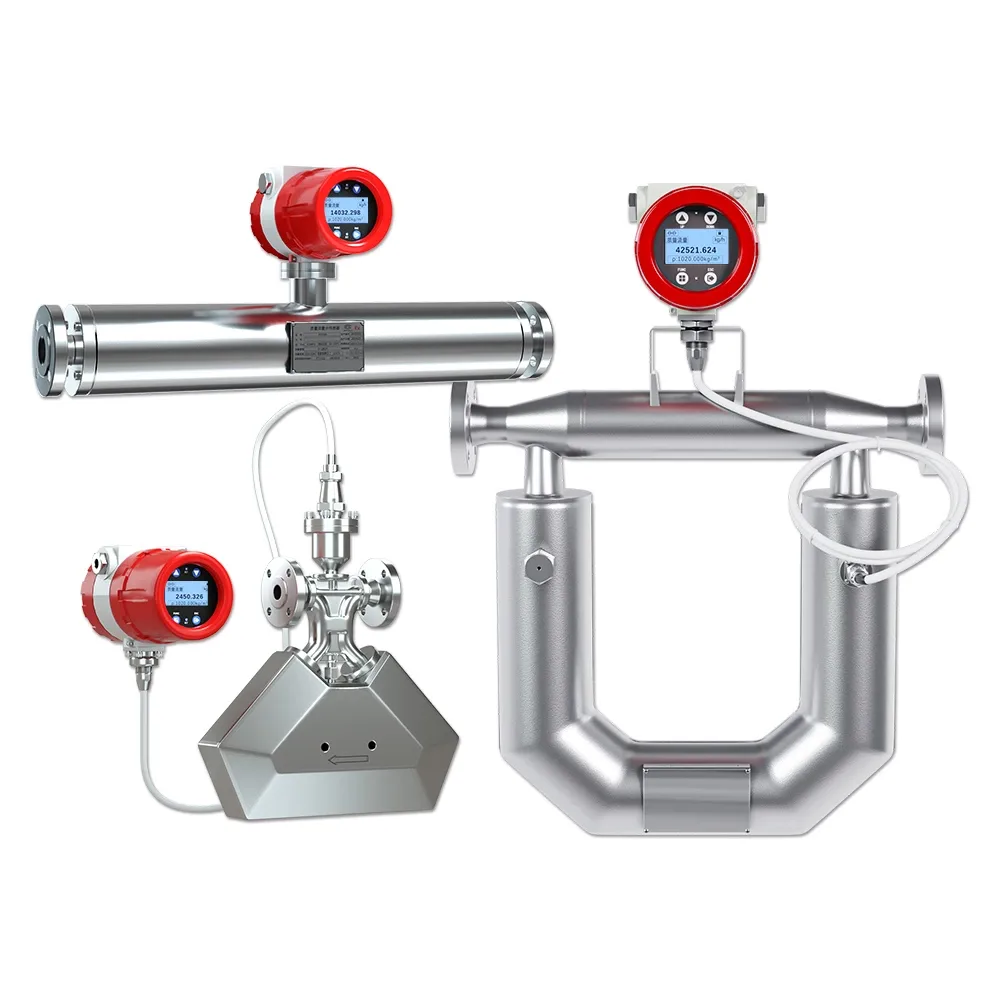

Coriolis mass flowmeter

Diameter

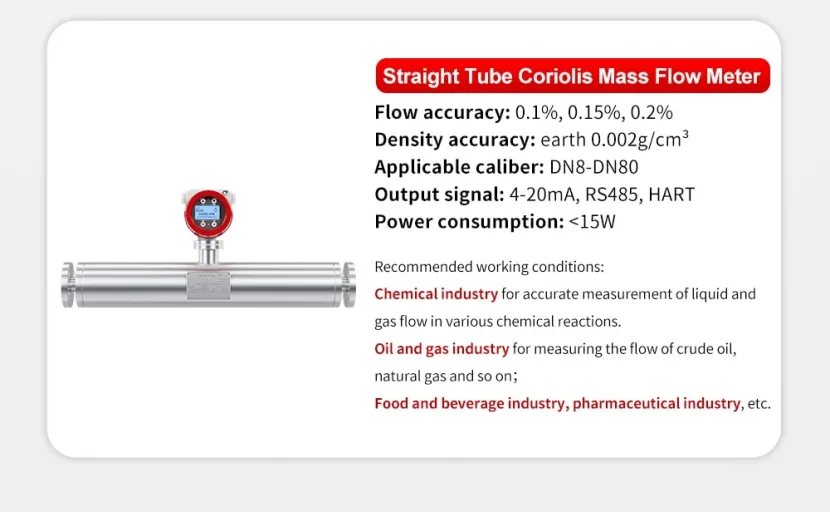

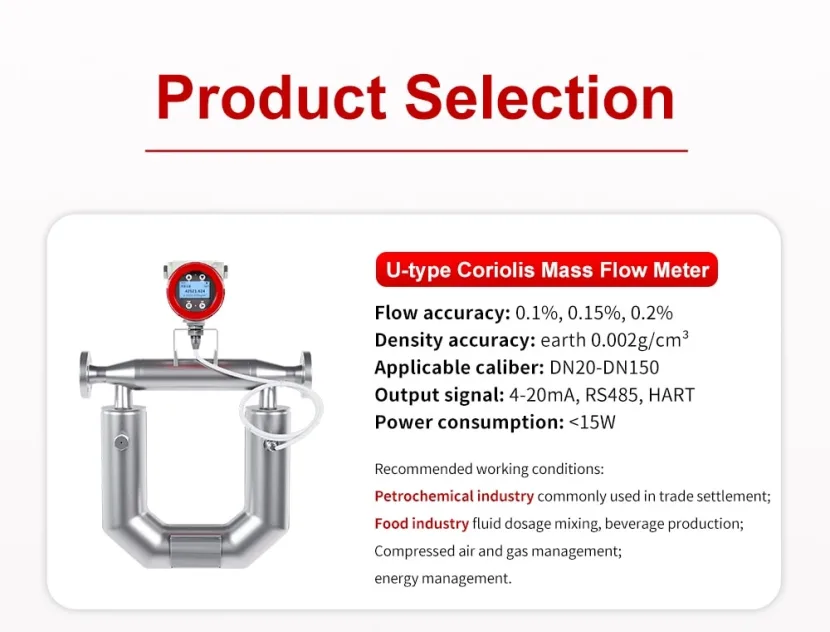

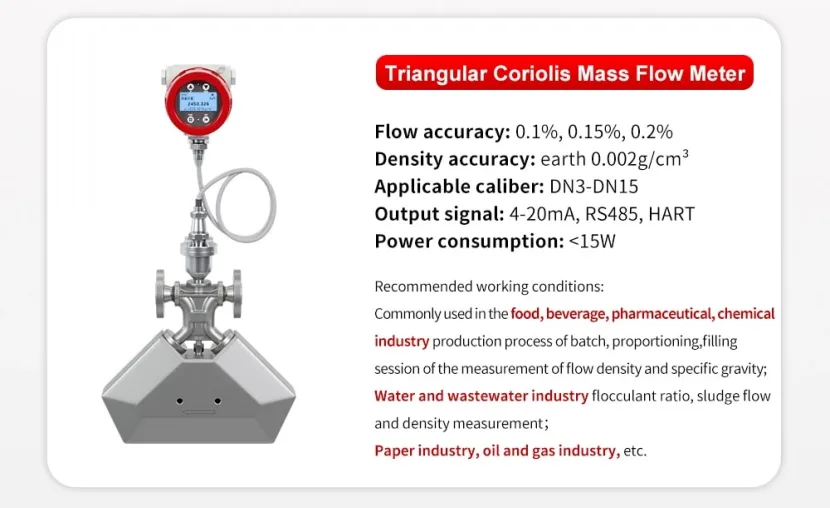

U-type: DN20~DN150; Triangular: DN3~DN15; Straight Tube: DN8~DN80

Measurand

Mass flow, density, temperature

Density accuracy

earth 0.002g/cm³

Accuracy

0.1%,0.15%,0.2%

Temperature

-40~+60℃

Power consumption

<15W

Power supply

220 VAC;   24VDC

Signal output

4～20mA, RS485, HART

Ingress protection

IP67

Density range

(0.3~3.000)g/cm³

Repeatability

1/2 of the measurement error

Medium temperature

Standard type: (-50~200)℃, (-20~200)℃; High-temperature type: (-50~350)°C; Low-temperature type: (-200~200)°C

Process pressure

(0~4.0)MPa

Humidity

35%～95%

Transmission output

(4–20) mA, output load (250–600) Ω
